CO2 Incubator

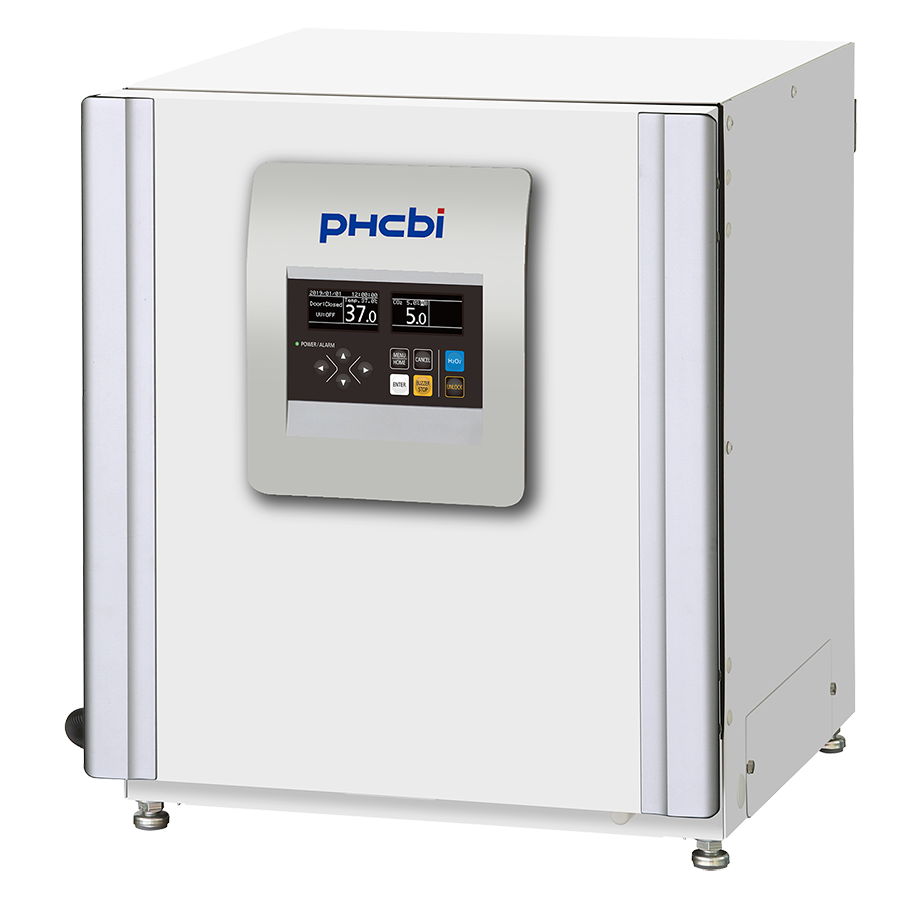

MCO-50AIC-PE IncuSafe CO2 Incubator

Effective capacity
50L
Temperature range
+5℃ above ambient to 50℃

Features

Optimising cell culture outcomes and reproducibility

The MCO-50AIC-PE CO2 Incubator provide precise control of CO2 concentration and accurate, uniform, and highly responsive temperature control within the chamber. During cell culturing, contamination is prevented by germicidal interior and optional UV lamp. During cel culturing the inCu-saFe germicidal interior and SafeCell UV lamp work continuously to prevent contamination.

Precise & Regulated Environment

InCu-saFe and SafeCell UV both function to prevent contamination. The Direct Heat and Air Jacket System regulates the temperature whilst the Dual IR sensor controls the CO2 level.

SafeCell UV lamp

The programmable ultraviolet lamp, isolated from cell cultures, eliminates contaminants in the air-flow and water-pan without affecting cell cultures. SafeCell UV inhibits the growth of mycoplasma, bacteria, molds, spores, yeasts and fungi without costly HEPA filters that accumulate contaminants in the chamber air.

Precise Control & Intelligent Monitoring

An OLED alphanumeric keypad allows convenient but secure user control. It can display interna conditions, such as CO2 level and temperature. Transfer of data is easy via a USB port.


Request a Quote

Optimum Cell Growth

Outstanding quality and performance for successful cell growth, optimal results and reproducibility. Perfect fit for the strictest and most sensitive protocols.

Individual Cell Culturing

Compact and stackable these incubators are ideal for individual cell cultures from patient samples or small scale research projects.

Benefits

  • Reproduction of in vivo condition
  • Improved Use & Maintenance
  • Efficient Workflows
  • Intuitive Usability

Features

  • USB port
  • Optional electric door lock with password
  • OLED touchpad
  • Integrated shelf supports
  • SafeCell UV system
  • Exclusive InCu SaFe copper-enriched stainless steel interior
  • PHCbi proprietary single-beam, dual detector infrared (IR2) CO2 sensor
  • Direct Heat and Air Jacket Heating System
  • Field-reversible doors
  • Adjustable shelves
  • Hydrogen Peroxide Vapour Decontamination (Optional)

Product Photos

Specifications

External Dimensions (W x D x H) 480 x 550 x 585 mm
Internal Dimensions (W x D x H) 370 x 363 x 385 mm
Volume 50 liters
Net Weight 46 kg
Temperature Control Range & Fluctuation AT +5°C ~ +50, ±0.1
Temperature Uniformity ±0.25°C
CO2 Control Range & Fluctuation 0% ~ 20%, ±0.15%
O2 Control Range & Fluctuation
Humidity Level & Fluctuation 95% RH, ±5
Temperature Sensor Thermistor
CO2 Sensor Dual IR
Display Digital (White graphic OLED)
Exterior Material Painted Steel (rear cover not painted)
Interior Material Stainless Steel Copper-Enriched Alloy
Insulation Material Styrene AcryloNitrile copolymer
Heating Method Direct Heat & Air Jacket System
Outer Doors 1 (Field Riversible Door)
Outer Door Lock N/A
Field Reversible Door Included
Inner Doors 1 (Field Riversible Door)
Shelves 2 x Stainless Steel Copper-enriched Alloy
Shelf Dimensions (W x D x H) 353 x 308 x 12 mm
Max. Load Per Shelf 7 kg
Max. Shelf Capacity 6
Access Port 1
Access Port Position Rear upper left
Access Port Diameter 30 Ø mm
Power Failure R (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Out of Temperature Setting V-B-R (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
High Temperature V-B-R (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Out of CO2 Setting V-B-R (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Out of O2 Setting -
Door Open V-B (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Power Supply 220 - 240 V
Frequency 50 Hz
Noise Level 29 dB

Accessories

Options
Safe Cell UV system MCO-170UVS-PE
H2O2 Decontamination board

MCO-50HB-PW

H2O2 Vapor Generator

MCO-50HP-PW

H2O2 Reagent, pack of 6 bottles MCO-5H202-PE
Electric door lock with password MCO-170EL-PW
CO2/N2 gas pressure regulator MCO-010R-PW
Automatic CO2 cylinder changeover system MCO-50GC-PW
Tray MCO-50ST-PW
Double stacking bracket MCO-170PS-PW
Stacking plate
MCO-50SB-PW
Roller base MCO-50RB-PW
Optional Communication Systems
Analogue interface (4–20 mA) MCO-420MA-PW

Appearance and specifications are subject to change without notice.

1) External dimensions of main cabinet only, excluding handle and other external projections.
2) When set temperature is 37°C, ambient temperature must be 32°C or less. Regardless of ambient temperature, the maximum of temperature control range is always 50°C.
3) The measurement condition complies with PHCbi specified measuring method.
4) Nominal value.

  • The optimum performance may not be obtained if the ambient temperature is not above 15°C.
  • Ambient temperature: 23°C, setting: 37°C, CO2: 5 %, no load
  • MCO-50AIC-PE + UV requires MCO-170UVS-PE UV system set
  • MCO-50AIC-PE requires MCO-50HB-PE, MCO-170EL-PW, MCO-50HP-PW and SafeCell UV option for H2O2 decontamination
