CO2 Incubator

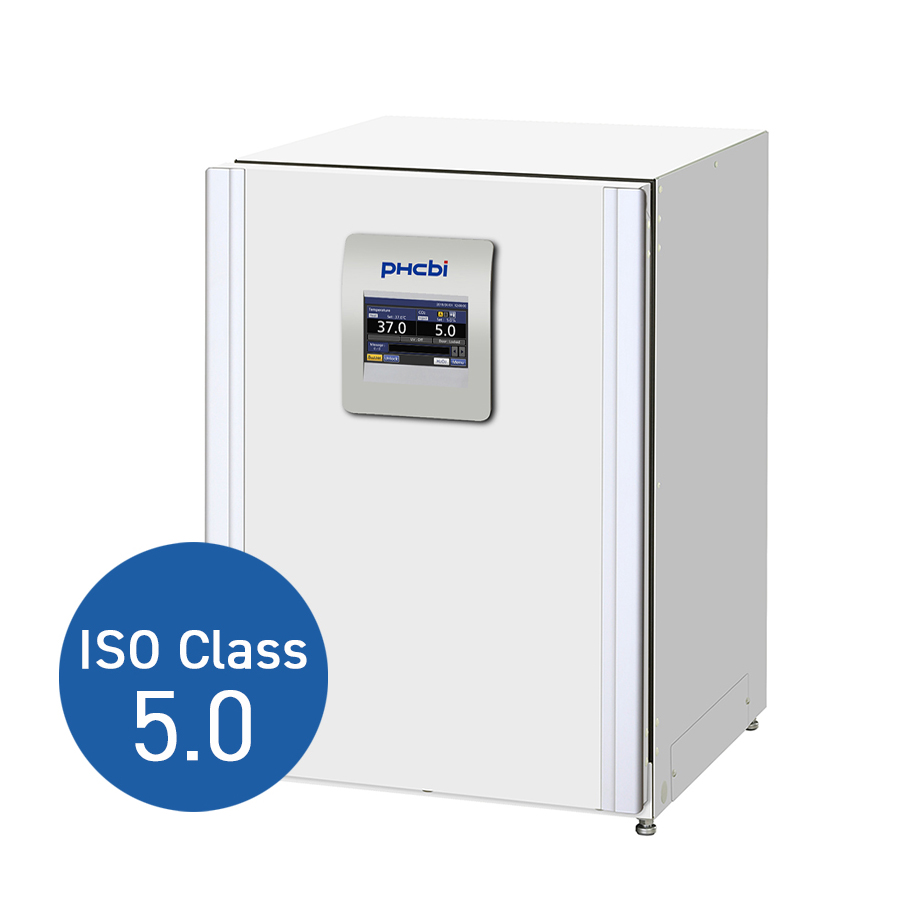

MCO-170AICUVH-PE IncuSafe CO2 Incubator

Effective capacity
165L
Temperature range
+5℃ above ambient to 50℃

Features

Optimising cell culture outcomes and reproducibility

We understand that creating successful cell cultures requires a CO2 incubator that offers the highest levels of precision, security and ease of use.

Our latest IncuSafe MCO-170AIC CO2 Incubators with innovative technologies offer outstanding quality in performance, maximise cell culture productivity and provide optimum results and reproducibility. The MCO-170AICUVH-PE has a built-in UV lamp and a H2O2 Decontamination board and Electric door lock with password.

Cleanroom Classification

To ensure that our equipment can be trusted as an essential tool for cleanroom applications, we have invested in the classification of our flagship cold storage and cell culture incubators. The MCO-170AICUVH-PE is ISO 14644-1 part 14 Classified and falls in ISO Class 5.0. Find out more in the brochure at the download section on this page.

PHC Europe B.V. also offers three other sizes IncuSafe CO2 Incubators with Safecell UV lamp:


Request a Quote

Benefits

  • Improved insulation performance and lower running costs
  • PID Control of CO2 and temperature
  • Dual IR CO2 sensor
  • Optimum protection for your cell culturers
  • More space for more cultures
  • PHCbi’s H2O2 vapour sterilisation cycle reduces downtime to less than 3 hours for complete, validatable decontamination for increased productivity.

Features

  • DHA Direct heat and air jacket system
  • Dual IR CO2 sensor
  • InCu saFe® copper-enriched stainless steel interior
  • Standard Safe Cell UV® with NEW increased UV lamp life
  • Standard electric door lock with password
  • Integrated shelf supports
  • Full colour LCD touch screen
  • USB port
  • H2O2 Decontamination board

Product Photos

Specifications

External Dimensions (W x D x H) 620 x 730 x 905 mm
Internal Dimensions (W x D x H) 490 x 523 x 665 mm
Volume 165 liters
Net Weight 80 kg
Temperature Control Range & Fluctuation AT +5 ~ +50, ±0.1 °C
Temperature Uniformity ±0.25 °C
CO2 Control Range & Fluctuation 0 ~ 20, ±0.15 %
O2 Control Range & Fluctuation -
Humidity Level & Fluctuation 95, ±5 %RH
Sterilisation Method H2O2 Decontamination
Temperature Sensor Thermistor
CO2 Sensor Dual IR
O2 Sensor -
Display LCD Touch Screen
Exterior Material Painted Steel (rear cover not painted)
Interior Material Stainless Steel Copper-Enriched Alloy
Insulation Material Extruded polystyrene
Heating Method Direct Heat & Air Jacket System
Outer Doors 1
Outer Door Lock Standard
Field Reversible Door Included
Inner Doors 1 gastight - made of tempered glass
Shelves 4 x Stainless Steel Copper-enriched Alloy
Shelf Dimensions (W x D x H) 470 x 450 x 12 mm
Max. Load Per Shelf 7 kg
Max. Shelf Capacity 10
Access Port 1
Access Port Position Rear Upper Left
Access Port Diameter 30
Power Failure R
Out of Temperature Setting V-B-R
High Temperature V-B-R
Out of CO2 Setting V-B-R
Out of O2 Setting -
Door Open V-B
Power Supply 230 V
Frequency 50 Hz
Noise Level 29 dB

Accessories

Options
Safe Cell UV system standard
H2O2 Decontamination board standard
Electric door lock with password standard
H2O2 vapour generator MCO-HP-PW
H2O2 reagent MCO-H2O2-PE
Double stacking bracket MCO-170PS-PW
Stacking plate MCO-170SB-PW
CO2 gas pressure regulator MCO-100L-PW
Automatic CO2 cylinder changeover system MCO-21GC-PW
Semi-automatic one point gas calibration kit MCO-SG-PW
InCu saFe shelf MCO-170ST-PW
InCu saFe half tray system MCO-25ST-PW
Roller base MCO-170RB-PW
Optional communication systems
Ethernet interface (LAN) MTR-L03-PW
Digital interface (RS232C/RS485) MTR-480-PW
Analogue interface (4-20mA) MCO-420MA-PW
