CO2 Incubators

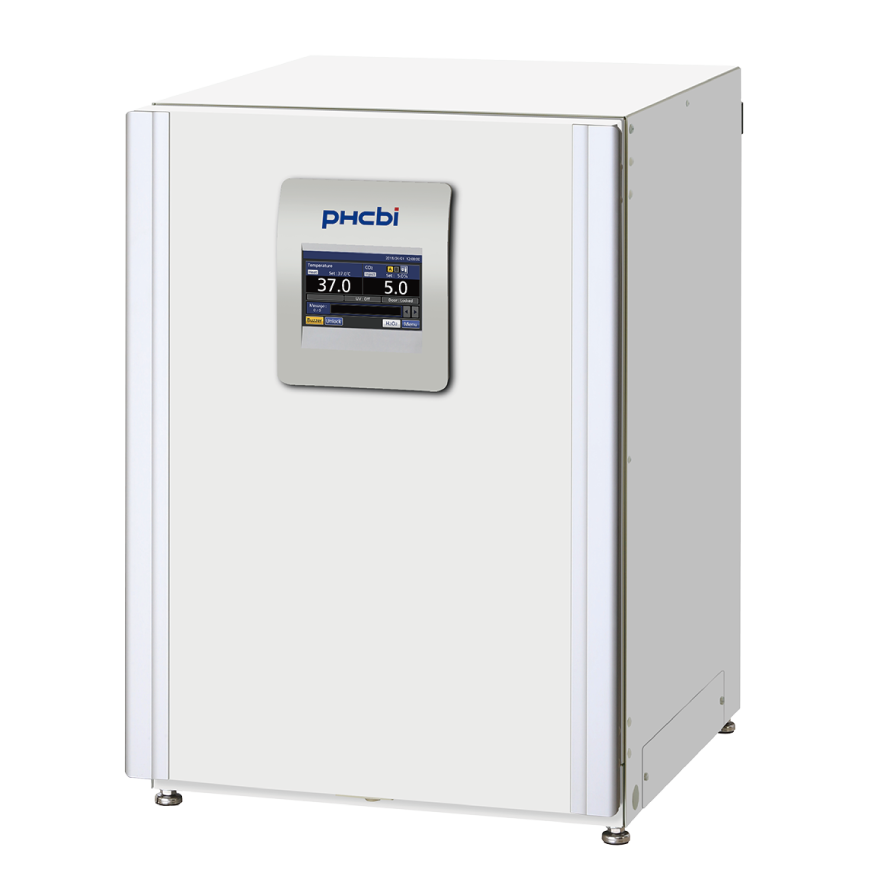

MCO-170AIC-PE

Effective capacity
165L
Temperature range
+5℃ above ambient to 50℃

Features

Optimising cell culture outcomes and reproducibility

Creating successful cell cultures requires a CO2 Incubator that offers the highest levels of precision, security and ease of use.

Our latest IncuSafe MCO-170AIC CO2 Incubators with PHCbi’s innovative technologies offer outstanding quality in performance, maximise cell culture productivity and provide optimum results and reproducibility.

Precise & Regulated Environment

Providing a precisely controlled environment for sensitive cell cultures Delivering long-term performance, optimal cell viability and successful experiments, each PHCbi incubator provides precise control of CO2 concentration and temperature, while remaining easy to operate and maintain. The MCO-170AIC IncuSafe CO2 Incubators support a reliable, stable cell culture environment across all shelf positions, meaning each and every cell is safely maintained under ideal conditions.

Increasing work efficiency

We have designed our incubators with ease of use and efficiency in mind. By delivering a user friendly cell culture incubator with rapid systems and processes, PHCbi can help make your work as simple as possible.

Time-Saving Decontamination

The high-speed decontamination system uses vaporised hydrogen peroxide and UV light. It cleans the chamber of the incubator safely in less than three hours, achieving a minimal 6 log reduction of major contaminants.

Optional

SafeCell UV® System:

The SafeCell UV lamp in IncuSafe incubators plays a pivotal role in continuous decontamination. The lamp with UV range has a much greater decontamination effect on these bacteria than decontamination lamps emitting at visible wavelengths. Discover the MCO-230AICUV-PE here.

UV_SafeCell
H2O2 decontamination:

The unique H2O2 decontamination system delivers fast and validatable decontamination. The high-speed decontamination system uses vaporised hydrogen peroxide and UV light. It cleans the chamber of the incubator safely in less than three hours, achieving a minimal 6 log reduction of major contaminants. The outer door is locked automatically upon initiation of the decontamination. Discover the MCO-230AICUVH-PE here.

H202






Request a Quote

Benefits

  • Improved insulation performance and lower running costs
  • PID Control of CO2 and temperature
  • Dual IR CO2 sensor
  • Optimum protection for your cell culturers
  • More space for more cultures
  • PCHbi’s H2O2 vapour sterilisation cycle reduces downtime to less than 3 hours for complete, validatable decontamination for increased productivity.

Features

  • DHA Direct heat and air jacket system
  • Dual IR CO2 sensor
  • InCu saFe® copper-enriched stainless steel interior
  • Optional Safe Cell UV® with NEW increased UV lamp life (Standard in the MCO-170AICUV-PE and MCO-170AICUVH-PE)
  • Optional electric door lock (Standard in the MCO-170AICUVH-PE)
  • Integrated shelf supports
  • Full colour LCD touch screen
  • USB port

Product Photos

Specifications

External Dimensions (W x D x H) 620 x 730 x 905 mm
Internal Dimensions (W x D x H) 490 x 523 x 665 mm
Volume 165 liters
Net Weight 80 kg
Temperature Control Range & Fluctuation AT +5 ~ +50, ±0.1 °C
Temperature Uniformity ±0.25 °C
CO2 Control Range & Fluctuation 0 ~ 20, ±0.15 %
O2 Control Range & Fluctuation -
Humidity Level & Fluctuation 95, ±5 %RH
Temperature Sensor Thermistor
Sterilisation Method H2O2 Decontamination (Optional)
CO2 Sensor Dual IR
O2 Sensor -
Display LCD Touch Screen
Exterior Material Painted Steel (rear cover not painted)
Interior Material Stainless Steel Copper-Enriched Alloy
Insulation Material Extruded polystyrene
Heating Method Direct Heat & Air Jacket System
Outer Doors 1
Outer Door Lock Optional
Field Reversible Door Included
Inner Doors 1 gastight - made of tempered glass
Shelves 4 x Stainless Steel Copper-enriched Alloy
Shelf Dimensions (W x D x H) 470 x 450 x 12 mm
Max. Load Per Shelf 7 kg
Max. Shelf Capacity 10
Access Port 1
Access Port Position Rear Upper Left
Access Port Diameter 30
Power Failure R
Out of Temperature Setting V-B-R
High Temperature V-B-R
Out of CO2 Setting V-B-R
Out of O2 Setting -
Door Open V-B
Power Supply 230 V
Frequency 50 Hz
Noise Level 29 dB

Accessories

Options
Safe Cell UV system MCO-170UVS-PE
H2O2 Decontamination board MCO-170HB-PE
Electric door lock with password MCO-170EL-PW
H2O2 vapour generator MCO-HP-PW
H2O2 reagent MCO-H2O2-PE
Double stacking bracket MCO-170PS-PW
Stacking plate MCO-170SB-PW
CO2 gas pressure regulator MCO-100L-PW
Automatic CO2 cylinder changeover system MCO-21GC-PW
Semi-automatic one point gas calibration kit MCO-SG-PW
InCu saFe shelf MCO-170ST-PW
InCu saFe half tray system MCO-25ST-PW
Roller base MCO-170RB-PW
Optional communication systems
Ethernet interface (LAN) MTR-L03-PW
Digital interface (RS232C/RS485) MTR-480-PW
Analogue interface (4-20mA) MCO-420MA-PW
