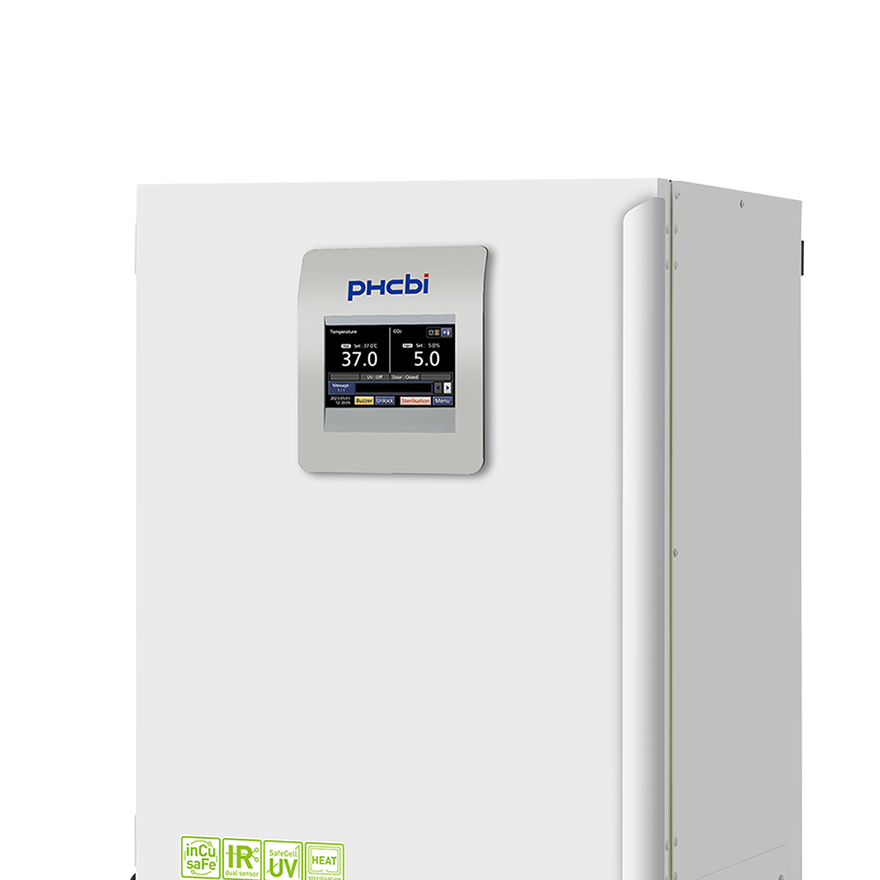

CO2 Incubator

MCO-171AICD-PE

Effective capacity
165 Litres
Temperature control range & fluctuation
AT +5 to +50, ±0.1 (AT: 5°C to 35°C)

Features

Advanced Dry Heat Sterilization CO₂ Incubator

The MCO-171AICD-PE CO₂ incubator is engineered to support the stringent demands of modern laboratories, ensuring optimal conditions for cell cultures and other sensitive biological samples. Its innovative design and advanced technology provide a contamination-free, controlled environment, making it indispensable for researchers in fields such as microbiology, oncology, and cell biology.

Key Features and Benefits:


165-Liter Chamber Capacity:

With a generous internal volume, the incubator can accommodate a variety of cultures, providing ample space for Petri dishes, flasks, and other containers, essential for high-throughput laboratories.

180°C Dry Heat Sterilization:

The incubator features a high-temperature sterilization cycle lasting approximately 11 hours. This intense sterilization method ensures that all surfaces within the chamber are completely decontaminated, eliminating bacteria, mold, yeast, and even resistant spores. This feature is particularly important for laboratories handling sensitive or high-risk biological materials, where even minor contamination could compromise results.

InCu-saFe Germicidal Interior:

The interior of the incubator is made from a stainless steel copper-enriched alloy, which naturally inhibits microbial growth. This ensures that contamination risks are minimized during culture, protecting samples without the need for frequent manual cleaning.

Advanced Temperature and CO₂ Control:

The MCO-171AICD-PE offers precise control of both temperature and CO₂ levels, with deviations held within minimal ranges (±0.1°C for temperature, ±0.1% for CO₂). This ensures a stable environment, critical for the growth and maintenance of cell cultures that require specific atmospheric conditions

Energy Efficiency and Stackability:

The unit is designed to minimize heat loss, making it more energy-efficient. It can also be stacked with a second incubator to maximize lab space. While one unit runs a sterilization cycle, the other can continue normal operations, providing uninterrupted workflow and increasing lab productivity.

Full-Color LCD Touchscreen

This user-friendly control panel allows researchers to easily monitor and adjust incubation settings. The LCD screen provides a clear view of key parameters, such as temperature, humidity, and CO₂ concentration, ensuring that conditions can be fine-tuned as needed. Additionally, the built-in USB port allows for easy data logging and transfer, streamlining the process of tracking and analyzing experimental conditions over time.

Reduced Maintenance and Running Costs:

The simplified design of the chamber and interior shelving minimizes the components that require regular cleaning. This reduces downtime and operational disruptions, making it easier to maintain a clean, sterile environment between culture cycles. The use of energy-efficient components further lowers operational costs, a significant advantage for research facilities with large-scale needs.

In conclusion, the MCO-171AICD-PE is an ideal solution for laboratories that require high sterility, precision control, and a spacious environment for culturing various biological materials.

Contact us

Product Photos

Specfications

External Dimensions (W x D x H) (1) 620 x 755 x 905 mm
Internal Dimensions (W x D x H) 490 x 523 x 665 mm
Volume 165 litres
Net Weight 80 kg
Temperature Control Range & Fluctuation AT +5 to +50, ±0.1 (AT: 5°C to 35°C)
Temperature Uniformity (2) ±0.25
CO2 Control Range & Fluctuation (2) 0 to 20, ±0.15
Humidity Level & Fluctuation 95, ±5
Temperature Sensor Thermistor
CO2 Sensor Dual IR
Display Colour LCD touchscreen
Exterior Material Painted steel (Bottom and rear cover have no paint.)
Interior Material Stainless steel copper-enriched alloy
Insulation Material Glass-wool insulation
Heating Method Heater jacket system
Heating Method (3) Dry heat sterilisation, 180°C, 11 hours
Outer Doors 1, Field-reversible
Outer Door Lock Standard
Inner Doors 1
Shelves 4 x Stainless steel copper-enriched alloy
Shelf Dimensions (W x D x H) 470 x 450 x 12 mm
Max. Load Per Shelf 7 kg
Access Port 1
Access Port Position On the back side
Access Port Diameter 30 mm
Power Failure R = (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Out of Temperature Setting V-B-R = (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
High Temperature V-B-R = (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
CO2 deviation V-B-R = (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Door Open V-B = (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Power Supply 220 - 240
Frequency 50/60 Hz
Noise Level (4) 25 dB

Options

UV System Set MCO-LUVSD-PW (Standard in MCO-171AICUVD)
Gas Regulator MCO-010R-PW
Gas Auto Changer

MCO-21GCP-PW

Tray (same as standard accessory) MCO-170ST-PW
Half Tray MCO-25ST-PW
Reinforced Tray (inCu-saFe®) MCO-170RT-PW
Double-stacking Bracket 5) MCO-170PS-PW
Stacking Plate (5) MCO-170SB-PW, MCO-230SB-PW
Roller Base MCO-170RB-PW
Notes:
1) Exterior dimensions of main cabinet only, excluding handle and other external projections.
2) Ambient temperature 23°C, setting 37°C, CO2 5%, no load.
3) Dry heat sterilisation can be performed only for the chamber and inner attachments with standard specifications, not for any other objects.
4) Nominal value.
5) If stacking two incubators, make sure the double-stacking dedicated securing hardware and spacer are used.
6) Only for the Data acquisition system MTR-5000 user. MCO-171AICD series can only be fitted with one communications interface.
7) MCO-171AICD and MCO-171AICUVD are for laboratory use.
