Multi-Gas Incubators

MCO-50M-PE IncuSafe Multigas Incubator

Effective capacity
50L
Temperature range
+5℃ above ambient to 50℃

Features

Creating Environments for Precise Cell Culture Reproducibility

The MCO-50M series has been combined with the MCO-170AIC/230AIC series in terms of design and specifications. Achieving high quality despite the small size.

DUAL IR Sensor permits highly accurate CO2 averages and is also not affected by humidity. The elimination of condensation with humidity control bar can further prevent decontamination. H2O2 decontamination system(OP), which doesn’t require removal of inner parts, can be decontaminated for approx. 2.5 hours.

Reproduction of in vivo conditions

With a unique, solid-state zirconia sensor for precise oxygen control (1-18%; 22- 80%), the MCO-50M Multigas Incubator is able to reproduce low oxygen concentrations found in many tissues and organs..

Time-Saving Decontamination

The high-speed decontamination system uses vaporised hydrogen peroxide and UV light. It cleans the chamber of the incubator safely in less than three hours, achieving a minimal 6 log reduction of major contaminants.


Request a Quote

Sensitive Cell Culturing

Culturing cells at physiological oxygen levels allows them to grow faster and live longer, and reduces the frequency of mutations.

Individual Cell Culturing

Compact and stackable these incubators are ideal for individual cell cultures from patient samples or small scale research projects.

Benefits

  • Reproduction of in vivo conditions
  • Time-Saving H2O2 Decontamination
  • Improved Use & Maintenance
  • Efficient Workflows
  • Intuitive Usability

Features

  • Unique solid Zirconia O2 sensor
  • USB port
  • Optional electric door lock with password
  • OLED touchpad
  • Integrated shelf supports
  • SafeCell UV system
  • Exclusive InCu SaFe copper-enriched stainless steel interior
  • PHCbi proprietary single-beam, dual detector infrared (IR2) CO2 sensor
  • Direct Heat and Air Jacket Heating System
  • Field-reversible doors.
  • Adjustable shelves
  • Hydrogen Peroxide Vapour Decontamination (Optional)

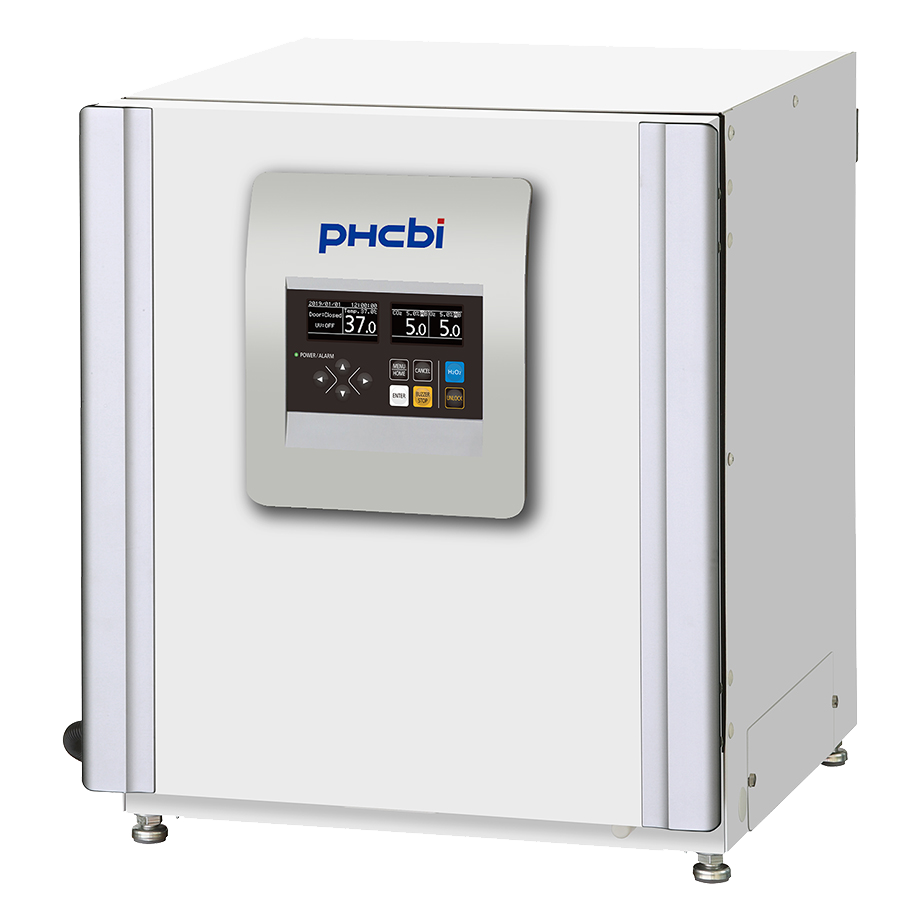

Product Photos

Specifications

External Dimensions (W x D x H) 480 x 550 x 585 mm
Internal Dimensions (W x D x H) 370 x 363 x 385 mm
Volume 50 liters
Net Weight 46 kg
Temperature Control Range & Fluctuation AT +5°C ~ +50, ±0.1
Temperature Uniformity ±0.25°C
CO2 Control Range & Fluctuation 0% ~ 20%, ±0.15%
O2 Control Range & Fluctuation 1% -18% and 22% - 80%, ±0.2
Humidity Level & Fluctuation 95% RH, ±5
Sterilisation Method
Temperature Sensor Thermistor
CO2 Sensor Dual IR
O2 Sensor Stabilized Zirconia Sensor
Display Digital (White graphic OLED) readable to 0.1 increments
Exterior Material Painted Steel
Interior Material Stainless Steel Copper-Enriched Alloy
Insulation Material Styrene AcryloNitrile copolymer
Heating Method Direct Heat & Air Jacket System
Outer Doors 1
Outer Door Lock N/A
Field Reversible Door Included
Inner Doors 1
Shelves 2 x Stainless Steel Copper-enriched Alloy
Shelf Dimensions (W x D x H) 353 x 308 x 12 mm
Max. Load Per Shelf 7 kg
Max. Shelf Capacity 6
Access Port 1
Access Port Position Rear upper left
Access Port Diameter 30 Ø mm
Power Failure R (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Out of Temperature Setting V-B-R (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
High Temperature V-B-R (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Out of CO2 Setting V-B-R (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Out of O2 Setting V-B-R (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)(R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Door Open V-B (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Power Supply 220 - 240 V
Frequency 50 Hz
Noise Level 29 dB

Accessories

Options
Safe Cell UV system MCO-170UVS-PE
H2O2 Decontamination board MCO-50HB-PW
Electric door lock with password MCO-170EL-PW
H2O2 vapor generator MCO-50HP-PW
H2O2 Reagent, pack of 6 bottles MCO-50H202-PE
CO2 gas pressure regulator MCO-010R-PW
N2 Gas Pressure Regulator MCO-010R-PW
Automatic CO2 cylinder changeover system MCO-50GC-PW
InCu saFe shelf MCO-50ST-PW
Double stacking bracket MCO-170PS-PW
Stacking plate MCO-50SB-PW
Roller base MCO-50RB-PW
Appearance and specifications are subject to change without notice.

1) Exterior dimensions of main cabinet only, excluding handle and other external projections
2, 3 and 4) Ambient temperature 25°C, setting 37°C, CO2 5%, O2 5%, no load
5) Nominal value

  • MCO-50M-PE requires MCO-50HB-PE, MCO-170EL-PW, MCO-50HP-PW and SafeCell UV option for H2 O2 decontamination.
