Multi-Gas Incubators

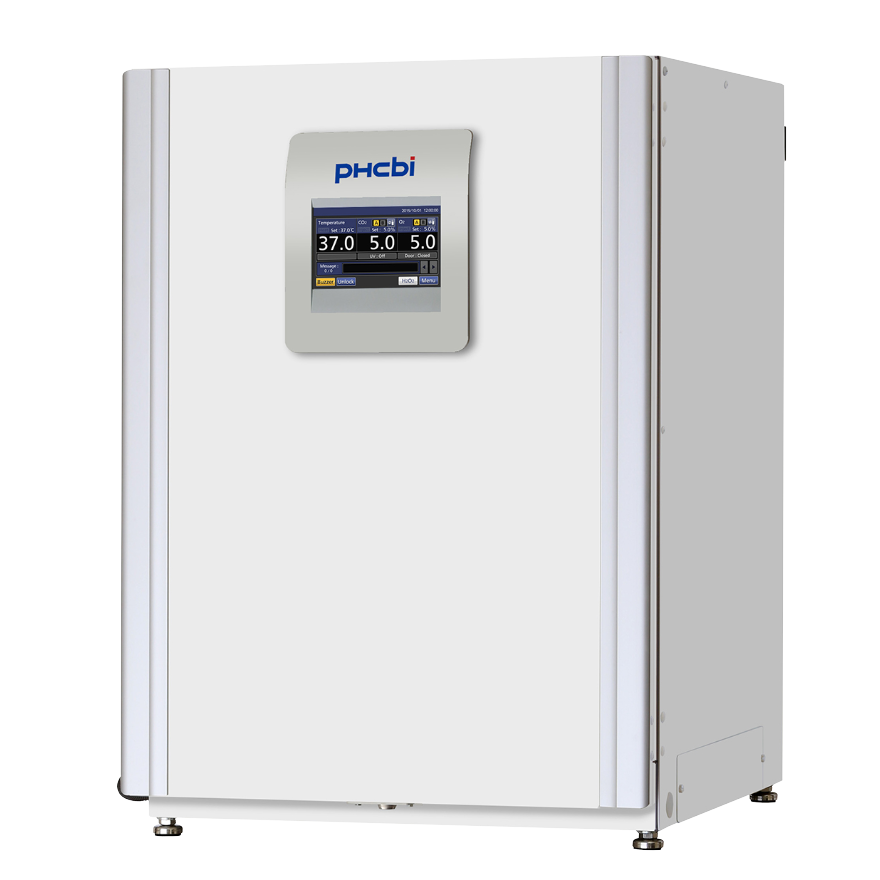

MCO-170M-PE IncuSafe Multigas Incubator

Effective capacity
161L
Temperature range
+5℃ above ambient to 50℃

Features

So comfortable, your cells will feel in vivo

The IncuSafe MCO-170M Multigas Incubator offers the most precise regulation of oxygen and other gases, while maintaining superior temperature uniformity, contamination control, and usability.

The Dual Infra Red sensor achieves ultra-fast CO2 recovery without overshoot, even following multiple door openings whilst the unique solid Zirconia O2 sensor delivers precise control of physiological oxygen levels to simulate in vivo conditions.

Sensitive Cell Culturing

Culturing cells at physiological oxygen levels allows them to grow faster, live longer, and experience fewer mutations. The IncuSafe MCO-170M Multigas Incubator helps to achieve more accurate results when culturing cells at physiological oxygen levels and is therefore ideally suited for mammalian tissue research applications, cellular therapy, stem cell research, pathophysiological studies and pharmaceutical production processes.

Active Background Decontamination

The exclusive inCu-saFe copper-enriched stainless steel alloy interor offers the germicidal properties of copper and the durability of stainless steel. The optional, isolated, SafeCell UV lamp decontaminates circulating air and water in the humidifying pan, without harming cultured cells.


Request a Quote

Ideally suited for:
  • Stem Cell Research & Differentiation
  • In vitro Fertilization
  • Regenerative Medicine
  • Primary Cell Culturing
  • Cancer Research
  • Embryo Studies

Benefits

  • Reproduction of in vivo conditions
  • Time-Saving H2O2 Decontamination
  • Improved Use & Maintenance
  • Efficient Workflows
  • Intuitive Usability

Features

  • Unique solid Zirconia O2 sensor
  • USB port
  • Optional electric door lock with password
  • LCD touch screen
  • Integrated shelf supports
  • SafeCell UV system
  • Exclusive InCu SaFe copper-enriched stainless steel interior
  • PHCbi proprietary single-beam, dual detector infrared (IR2) CO2 sensor
  • Direct Heat and Air Jacket Heating System
  • Field-reversible doors.
  • Adjustable shelves
  • Hydrogen Peroxide Vapour Decontamination (Optional)

Performance

Performance

Product Photos

Specifications

External Dimensions (W x D x H) 620 x 710 x 905 mm
Internal Dimensions (W x D x H) 490 x 523 x 665 mm
Volume 161 liters
Net Weight 79 kg
Temperature Control Range & Fluctuation AT +5 ~ +50, ±0.1 °C
Temperature Uniformity ±0.25 °C
CO2 Control Range & Fluctuation 0 ~ 20, ±0.15 %
O2 Control Range & Fluctuation 1 -18 and 22 - 80, ±0.2 %
Humidity Level & Fluctuation 95, ±5 %RH
Sterilisation Method H2O2 Decontamination
Temperature Sensor Thermistor
CO2 Sensor Dual IR
O2 Sensor Stabilized Zirconia Sensor
Display LCD Touch Screen
Exterior Material Painted Steel (rear cover not painted)
Interior Material Stainless Steel Copper-Enriched Alloy
Insulation Material Expandable Polystyrene Beads
Heating Method Direct Heat & Air Jacket System
Outer Doors 1
Outer Door Lock Optional
Field Reversible Door Included
Inner Doors 4 gastight - made of tempered glass
Shelves 3 x Stainless Steel Copper-enriched Alloy
Shelf Dimensions (W x D x H) 470 x 450 x 12 mm
Max. Load Per Shelf 7 kg
Max. Shelf Capacity 10
Access Port 1
Access Port Position Rear Upper Left
Access Port Diameter 30
Power Failure R
Out of Temperature Setting V-B-R
High Temperature V-B-R
Out of CO2 Setting V-B-R
Out of O2 Setting V-B-R
Door Open V-B
Power Supply 230 V
Frequency 50 Hz
Noise Level 25 dB
