Nitrogen Generators

HF30P

Consitent gas quality
Gas on-demand, affordable and reliable

Features

Laboratories demand reliable, cost effective and high quality sources of Nitrogen

By introducing Nitrogen into the Multigas Incubator with the help of a Nitrogen Generator, the oxygen concentration can be controlled specifically according to requirements.

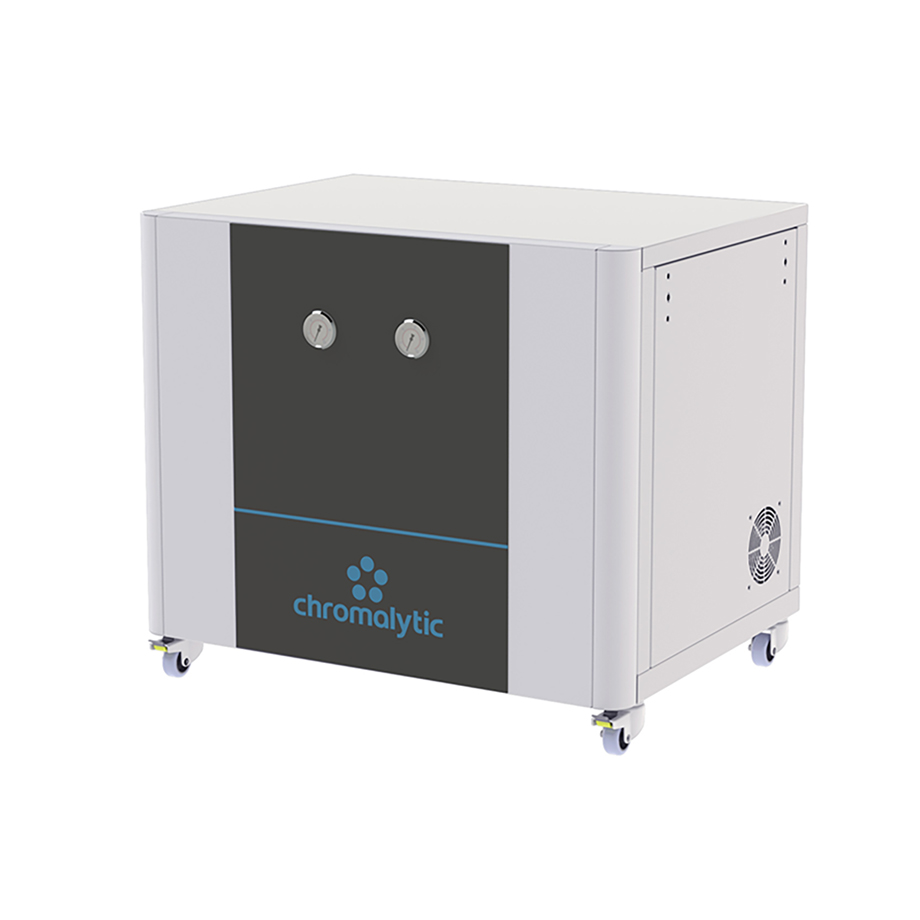

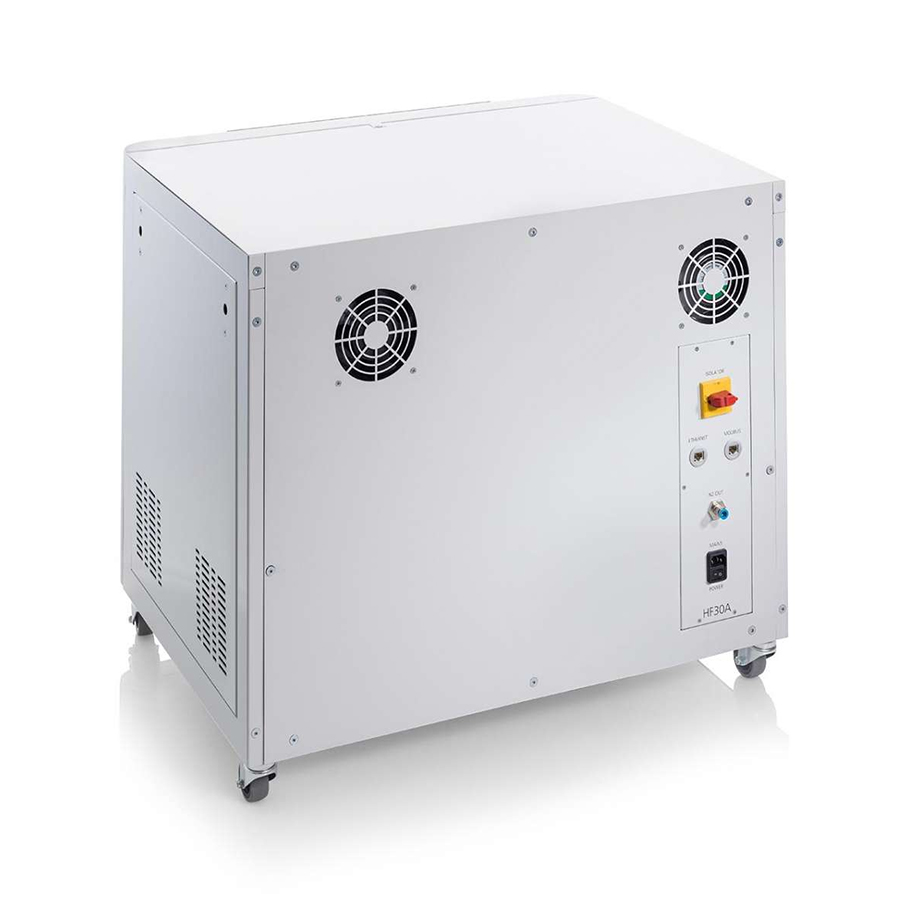

HF30P Nitrogen Generator

The pneumatic version of the HF30P. The nitrogen generator has a pneumatic control system and is ideal for use in laboratories where a dependable and affordable source of nitrogen is essential and is suitable for all laboratories, especially where a high pressure clean air source is not available at the point of use. Thanks to its compact dimensions, the nitrogen generator can be placed anywhere.

Safe and easy to use

No more high-pressure gas cylinders in your laboratory – no risk of explosion or gas leaks. Plug-and-Play installation and simple user interface.

Compatibility

The N2 generators are adjusted to the requirements of the PHCbi multigas incubators to supply continuous and direct N2 gas to lower control lower oxygen levels from 2~18%,

Contact

Product Photos

Specfications

Flow Rate up to 32 l/min
Purity up to 99.5%
Pressure 1 bar
Internal Compressor yes
Dimensions (LxWxH) 800 x 605 x 695 mm
Noise < 59 dB(A) at 1 m
Condensate Management no
