Undercounter Medical Refrigerator

PR-L5181W-PA

Effective Capacity
5.0 cu.ft. | 142 L
Temperature Range
+2°C to +8°C

Model PR-L5181W-PA Features

Purpose-Built Cold Chain Storage

PHCbi brand undercounter refrigerators are engineered to create, maintain and restore precise temperatures necessary for vaccine storage. Our purpose-built vaccine storage refrigerators are designed for temperature uniformity and stability that is not commonly found with household or commercial cabinets. PHCbi brand vaccine refrigerators satisfy current and evolving storage guidelines essential for vaccine cold chain storage.

Meeting Regulatory Standards

The PR-L5181W-PA features precise temperature control engineered to meet the current and evolving criteria included in the CDC, NSF and ANSI guidelines for vaccine storage while requiring less energy than traditional undercounter refrigerators.

Compact Design

With a compact footprint, the PR-L5181W-PA is designed for functional workspaces and fits under most tables, cabinets and lab benches. An optional stacking accessory is available to maximize storage capacity when space constraints become a concern.

High Performance

The purpose-built PR-L5181W-PA is designed to maintain the high performance necessary for valuable inventory. This biomedical undercounter refrigerator has been designed to maintain high performance temperature uniformity of ±3°C even when loaded, as often occurs during peak vaccine season. The solid door protects light-sensitive materials. The self-closing mechanism mitigates scenarios that could result in lost product if a door is left ajar.

Microprocessor Controller and Alarms

The unit has a door-mounted control with an easy to view LED display that features a preset automatic alarm tracking around the temperature setpoint. The alarm is set at +3°C above and below setpoint, consistent with vaccine and high-value product storage requirements.

Cycle Defrost System

The PR-L5181W-PA undercounter refrigerator utilizes a sophisticated defrost cycle, which provides assurance of optimum temperature control maintenance at all times. The cycle defrost system only triggers when needed and when the compressor is not running, minimizing temperature spikes often associated with common defrost systems.

Energy and Sustainability

This undercounter laboratory refrigerator provides energy efficiency and sustainability without compromising performance. Traditional HFC refrigerants have been replaced with environmentally friendly HC refrigerants to meet EPA Significant New Alternatives Policy (SNAP) guidelines and Canadian Environmental Protection Act (CEPA) regulations for low global warming and ozone depleting substances.

Access Port and Security

The 1.2" (30 mm) access port permits the passage of external temperature monitoring probes through the chamber without intruding on the door gasket. The door includes an integrated key lock.

Overview

Undercounter Refrigerator

The PR-L5181W-PA is engineered to meet the strict regulatory guidelines of the CDC, ANSI and NSF. The laboratory undercounter combines high performance temperature control with environmentally friendly refrigerants and energy efficiency. Precision temperature control and uniformity prevent the interior from cooling below freezing and risking vaccine and biologic viability whether the unit is loaded or empty.

Request a Quote

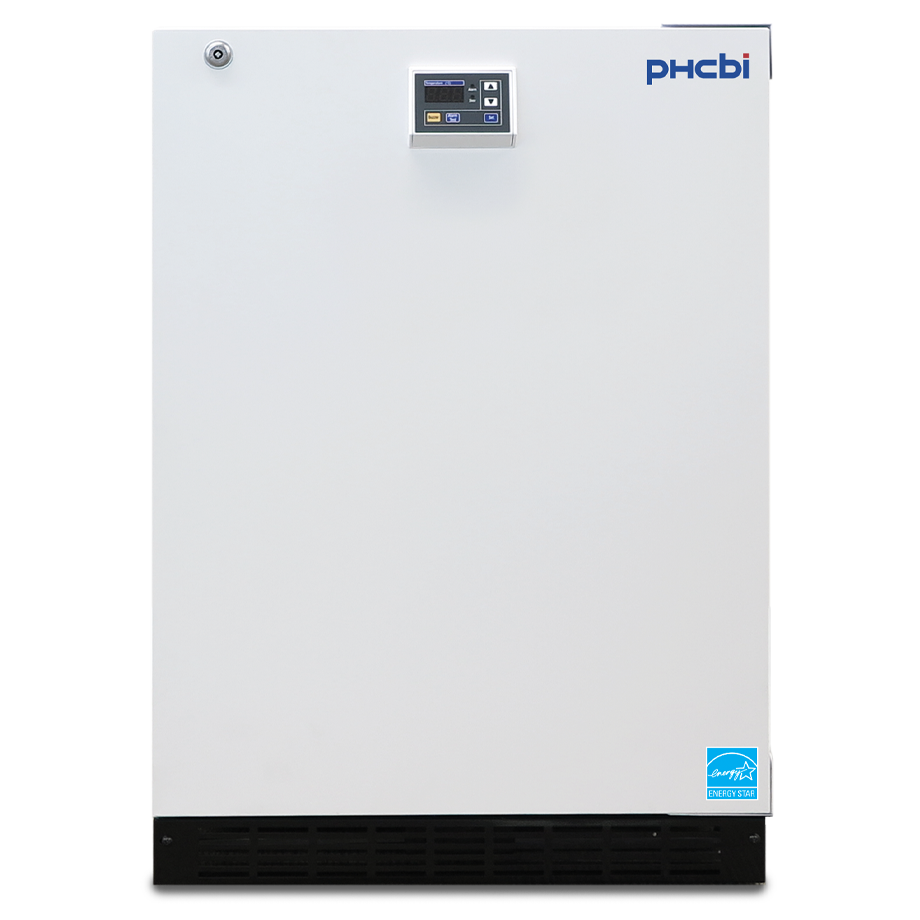

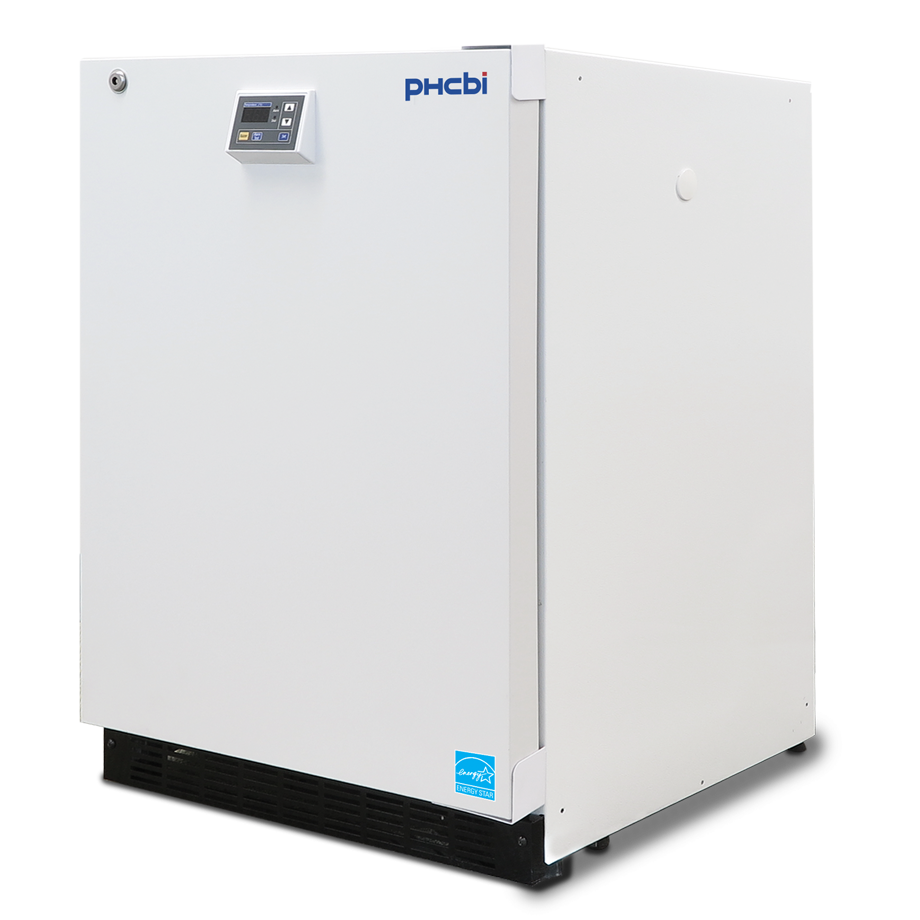

Product Photos

Specifications

EXTERIOR DIMENSIONS 23.8" W x 23.7" D x 34.1" H (606 x 600 x 867 mm)
INTERIOR DIMENSIONS 19.9" W x 17.1" D x 25.6" H (507 x 434 x 650 mm)
EFFECTIVE CAPACITY 5.0 cu.ft. (142 L)
SHELVES AND SHELF DIMENSIONS 3, coated steel wire Dimensions: 19.2" x 14.75" (487 x 375 mm)
ACCESS PORT 1: Right side of product (1.2" (30 mm) diameter)
COMPRESSOR 40 W (hermetic)
REFRIGERANT R-600a
TEMPERATURE CONTROL RANGE 2 to 8 in 0.1° increments
ALARMS Power failure (Optional), high temperature deviation (V-B), low temperature deviation (V-B), door open (V-B), sensor failure (V) V=Visual, B=Buzzer
NET WEIGHT 100 lbs (45 kg)
ELECTRICAL REQUIREMENTS 115V, 60Hz, 1Ø, NEMA 5-15P requires NEMA 5-15R receptacle
DOORS 1, Electro galvanized steel
INSULATION HFO foamed-in-place
TEMPERATURE DISPLAY LED
DOOR LOCK Key lock, top mounted with 2 keys

Price

PR-L5181W-PA Price Upon Inquiry. Please contact us.

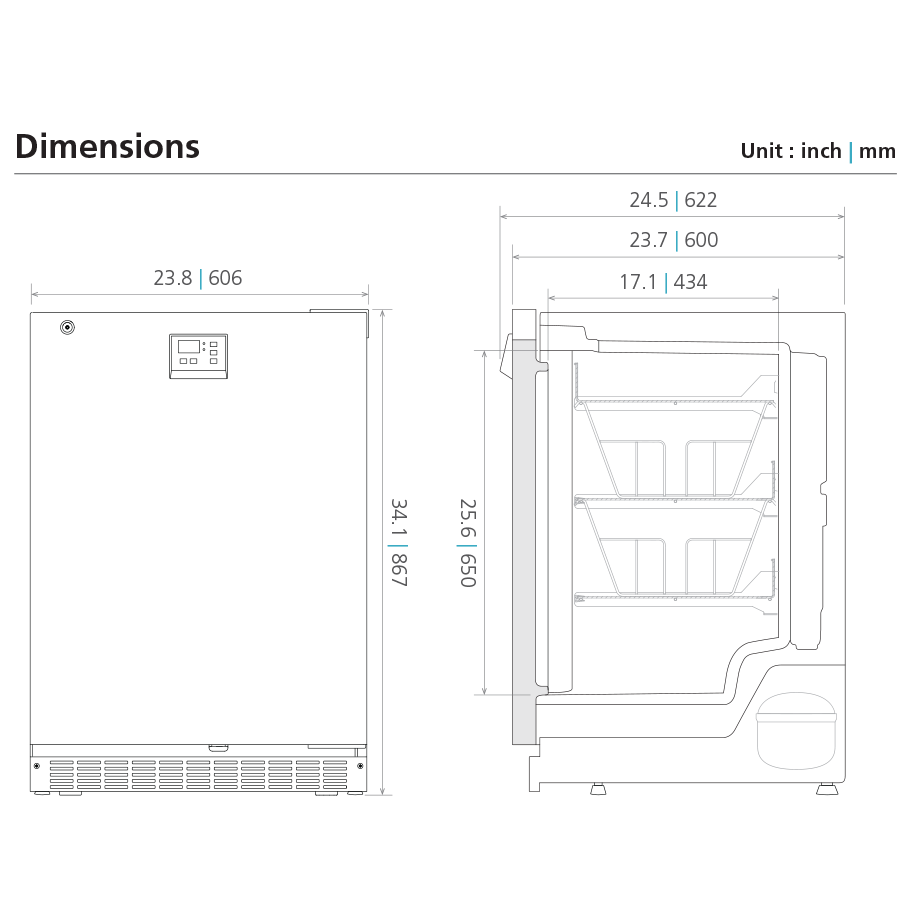

Dimensions

Product Sheet Download
