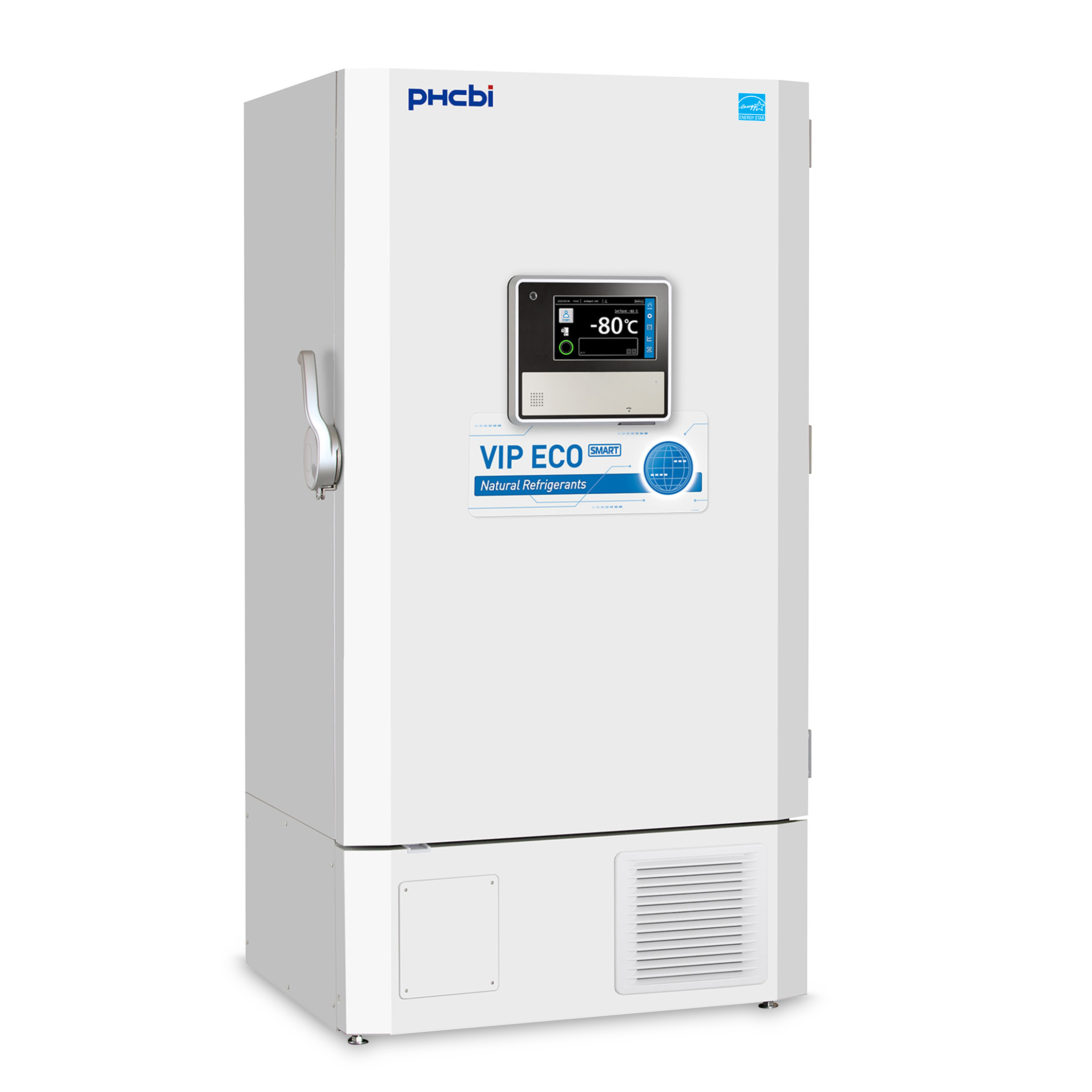

VIP ECO SMART -86°C Freezer

MDF-DU703VHA-PA

Effective capacity
25.7 cu.ft. | 729 L
Cooling Performance
-40℃ to -86℃

Model MDF-DU703VHA-PA Features

Purpose-Built Cold Chain Storage

Now you have flexibility on where to place an ultra-low temperature (ULT) freezer. The dual voltage PHCbi brand ultra-low temperature VIP ECO SMART is engineered from the inside out to create, maintain, and restore precise temperatures. The dual voltage ULT freezer includes both a 115V and 220V power cord that can be selected, easily attached when the freezer is installed, or switched to the other voltage upon relocation if desired.

PHCbi brand VIP ECO SMART ULT freezers provide reliable temperatures as low as -80°C and have earned a worldwide reputation for dependable performance in demanding environments where critical materials must be preserved for generations. Our purpose-built ultra-low temperature freezers are designed to achieve and maintain temperature uniformity and stability not commonly found with household or commercial cabinets.

SMART Performance and Class-Leading Efficiency

From the inside out, VIP ECO freezers are designed for optimal storage and operation. Next-generation engineering harnesses the power of inverter compressor technology to yield greater temperature uniformity. Reserve refrigeration power delivers fast temperature recovery following door openings.

The PHCbi brand MDF-DU703VH-PA VIP ECO SMART is our most advanced ultra-low temperature freezer to date. The VIP ECO SMART uses 30% less energy than other leading ENERGY STAR® Certified freezers.1 The VIP ECO SMART combines next-generation engineering with SMART control technology to provide a ULT with industry-leading energy efficiency and enhanced security and operation. Proven frost mitigation technology lowers the total cost of ownership.

ENERGY STAR Certified

The MDF-DU703VHA-PA has earned ENERGY STAR Certification based on independent testing by third-party laboratories. The VIP ECO SMART delivers the lowest daily energy usage of any ultra-low temperature freezer in its class: 5.40 kWh per day. The VIP ECO SMART has less heat output, resulting in lower HVAC costs and an overall reduction in energy consumption compared to other ULTs of the same size.

Security Control and Monitoring

The PHCbi brand VIP ECO SMART features integrated systems to secure your highly valued inventory. SMART features include three lock methods: facial recognition, keypad, or optional proximity card. Controlled freezer access monitors who has entered the ULT freezer and when and tracks total door opening duration.

LabSVIFT Lab Management Solution

Consolidate the management of multiple laboratory devices into one streamlined platform that beyond basic laboratory monitoring and maintenance tracking. LabSVIFT is a cloud-based lab management solution that allows you to map, track, and manage critical lab devices from one floor to the next or across facilities regardless of equipment brand. LabSVIFT helps improve efficiency and simplifies daily operations. Monitor laboratory equipment, anticipate potential problems, and minimize the amount of time needed to resolve them.

LabSVIFT

Natural Refrigerants

The VIP ECO Series uses naturally recurring refrigerants to minimize environmental impact and allow for greater efficiency, resulting in less heat output and lower energy consumption.

EZlatch Ergonomic Door Closure with Integrated Lock

The VIP ECO SMART uses the EZlatch door closure for simplified, one-handed operation that maintains the integrity of the door seal. An integrated electronic lock on the VIP ECO SMART provides enhanced security.

The patent pending EZlatch is engineered to accommodate frequent door openings and to control frost associated with extreme temperature differentials in high humidity environments. The EZlatch is the centerpiece of a holistic access and frost mitigation system. This combination of product and process maintains the integrity of the door seal to ensure energy efficiency.



1) Based on independent third-party testing at time of publication. ENERGY STAR test results for submitted products can be compared for performance across the competitive market. For results see the ENERGY STAR website www.energystar.gov/productfinder/product/certified-lab-grade-refrigeration/details/2404812. See PHC Corporation of North America's ENERGY STAR Unique ID 2404812.


Overview

SMART Control Ultra Efficient Ultra-Low Freezer

Independently tested and documented, the ENERGY STAR Certified VIP ECO SMART delivers the lowest daily energy usage (5.40 KWh per day) of any ultra-low temperature freezer in its class. The dual voltage MDF-DU703VHA-PA (115V) is purpose-designed for the temperature uniformity and stability required for demanding life sciences applications. It runs on either 115V or 220V power using the corresponding, removable power cords that come standard with every freezer. Variable speed inverter-driven compressors with proprietary SMART control algorithms allow for superior uniformity by running compressors at a slower speed under steady-state conditions.

Request a Quote

VIP ECO Products




Energy Savings Calculator

How much can you save by upgrading your ultra-low temperature freezer to the PHCbi brand VIP ECO SMART? Use our free calculator to see your estimated energy savings over 10 years with the VIP ECO SMART. The PHCbi brand VIP ECO SMART ranks top among ultra-low temperature freezers tested by ENERGY STAR for performance and energy efficiency.ii

Calculate Savings

Energy Savings Calculator

iiSources:

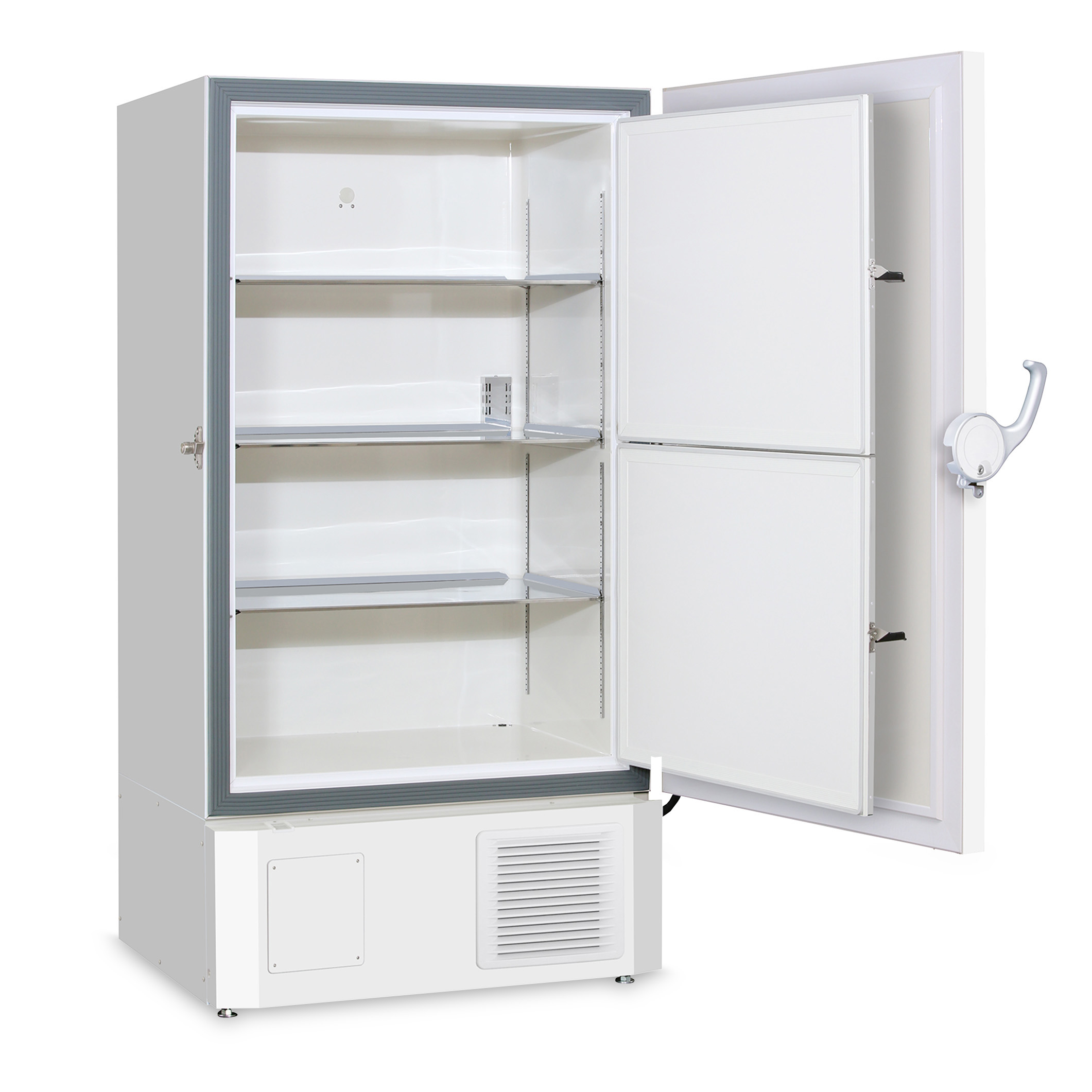

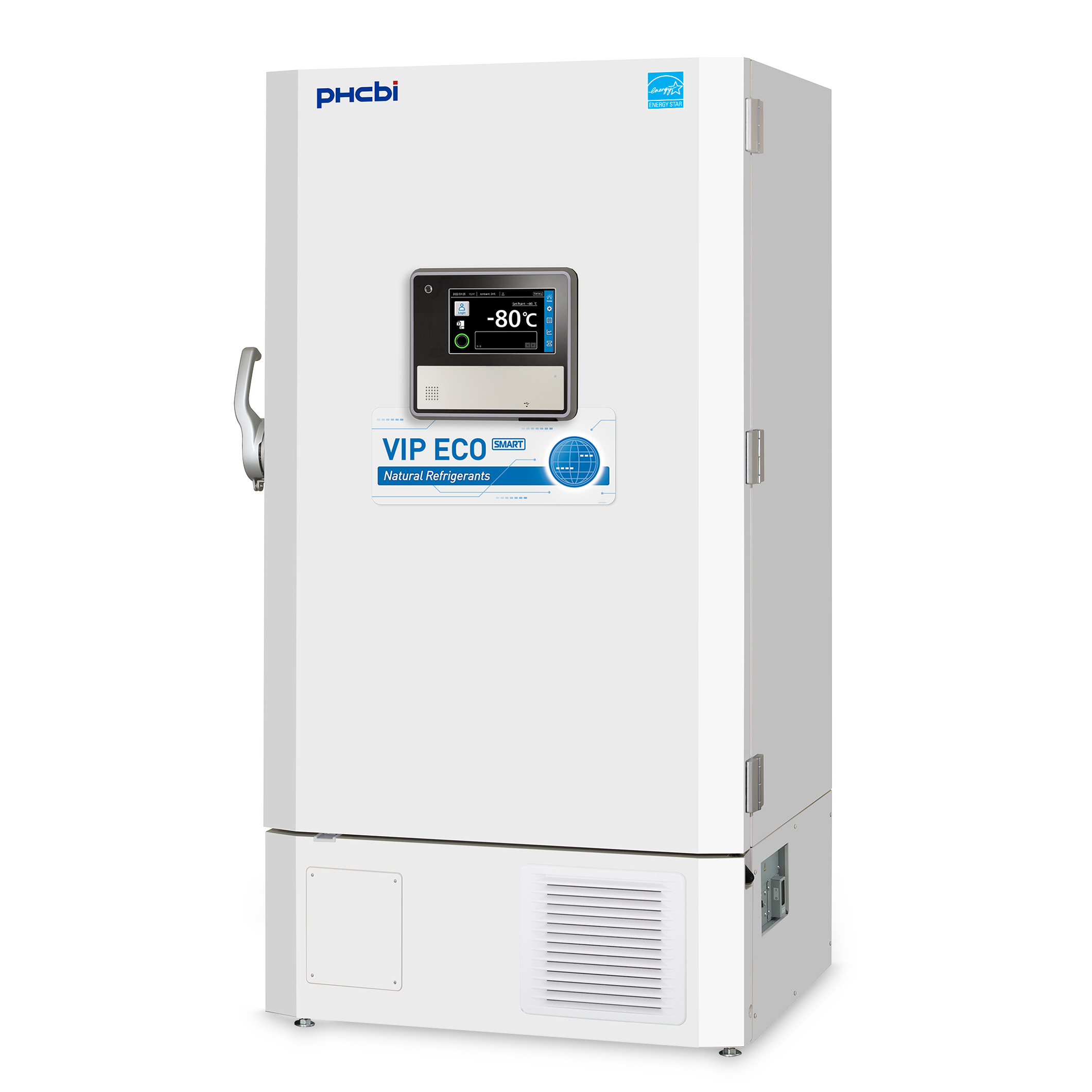

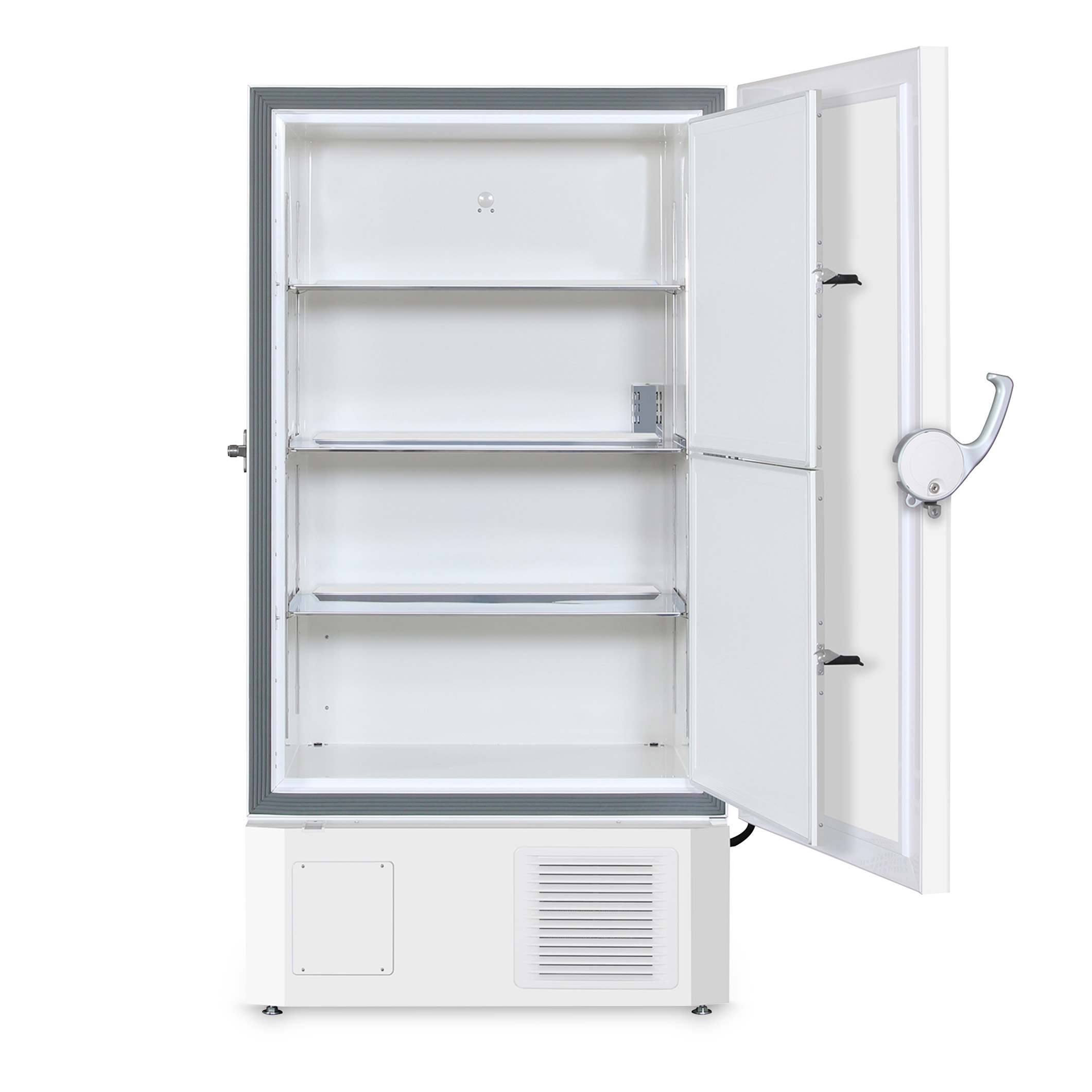

Product Photos

Specifications

ELECTRICAL 115V
EXTERNAL DIMENSIONS 40.6" W x 34.7" D x 78.5" H (1030 x 882 x 1993 mm)*
INTERNAL DIMENSIONS 34.3" W x 23.6" D x 55.1" H (870 x 600 x 1400 mm)
EFFECTIVE CAPACITY 25.7 cu.ft. (729 L)
INTERNAL DOORS 2 insulated; ABS, with stainless steel frames and positive latches
INSULATION Foamed-in-place and VIP Plus vacuum insulated panels: 3.1 in (80 mm)
SHELVES Stainless steel, 3 shelves (adjustable); Inner dimensions:33.7" W x 21.0" D (855 x 534 mm); Load: 110 lbs (50 kg) per shelf
ACCESS PORT 3; upper back wall (back-up system), bottom left (recorder sensor), bottom right (access); Inner diameter: 0.6 in (17 mm)
NET WEIGHT 608 lbs (276 kg)
COMPRESSOR (2) 750 W, variable speed
REFRIGERANT High-stage R-290 natural refrigerant, Low-stage R-170 natural refrigerant
TEMPERATURE CONTROL RANGE -40°C to -86°C in 1° increments (center of chamber, ambient temperature 30°C, no load)
ALARMS High temperature, low temperature, power failure, sensor failure, filter alarm, door ajar, remote alarm, battery life
COOLING PERFORMANCE -86°C center of chamber (ambient temperature 30°C, no load)
TEMPERATURE CONTROL SYSTEM Microprocessor, touchscreen data entry, password protected
AREA FOOTPRINT 9.78 ft2 (0.91 m2)
SOUND LEVEL 52 dB(A)
STORAGE (BOXES) FOR 2”/51 MM FIBERBOARD BOXES 576
STORAGE (RACKS) FOR 2”/51 MM FIBERBOARD BOXES 24
STORAGE (BOXES) FOR 3”/76 MM FIBERBOARD BOXES 384
STORAGE (RACKS) FOR 3”/76 MM FIBERBOARD BOXES 24
ENERGY STAR CERTIFIED ENERGY STAR Unique ID 2404812
*Exterior dimensions of cabinet excluding handle, rear stand-off brackets and other external projections. Consult Doorway Instructions documentation below for doorway entry instructions, less than 36.8".

Price

MDF-DU703VHA-PA Price Upon Inquiry. Please contact us.

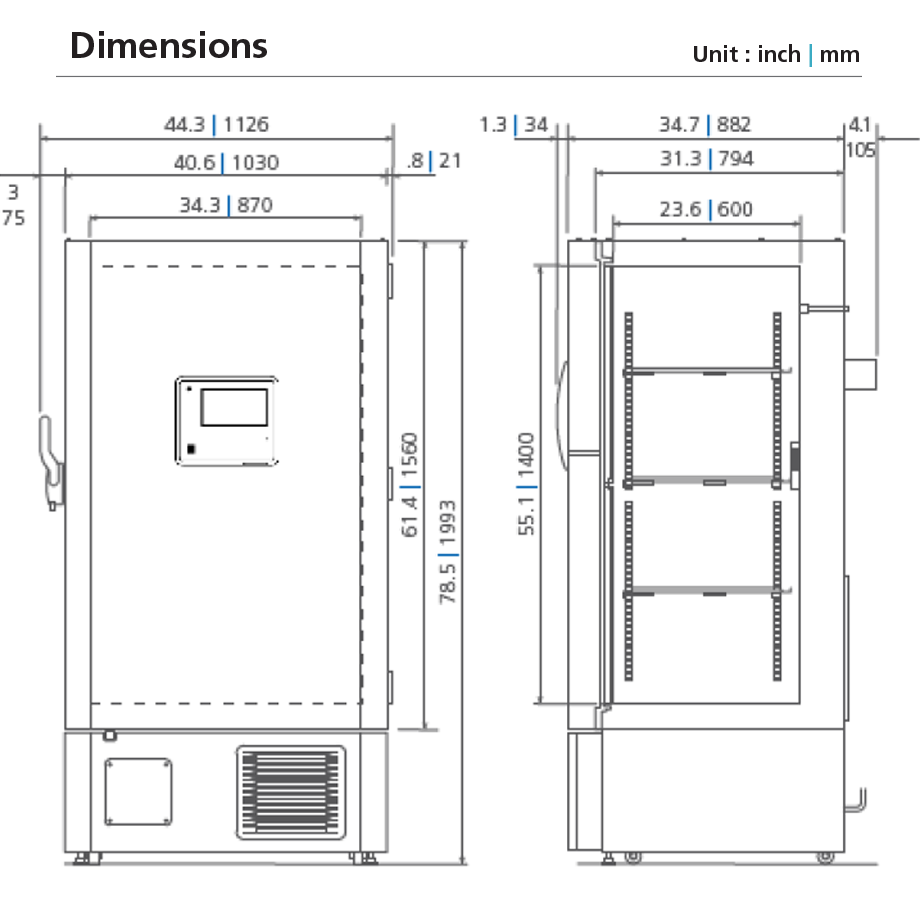

Dimensions

Product Sheet Download

  • MDF-DU703VHA-PA Product Sheet

    Download
  • MDF-DU703VHA-PA Dual Voltage Product Specification

    Download
