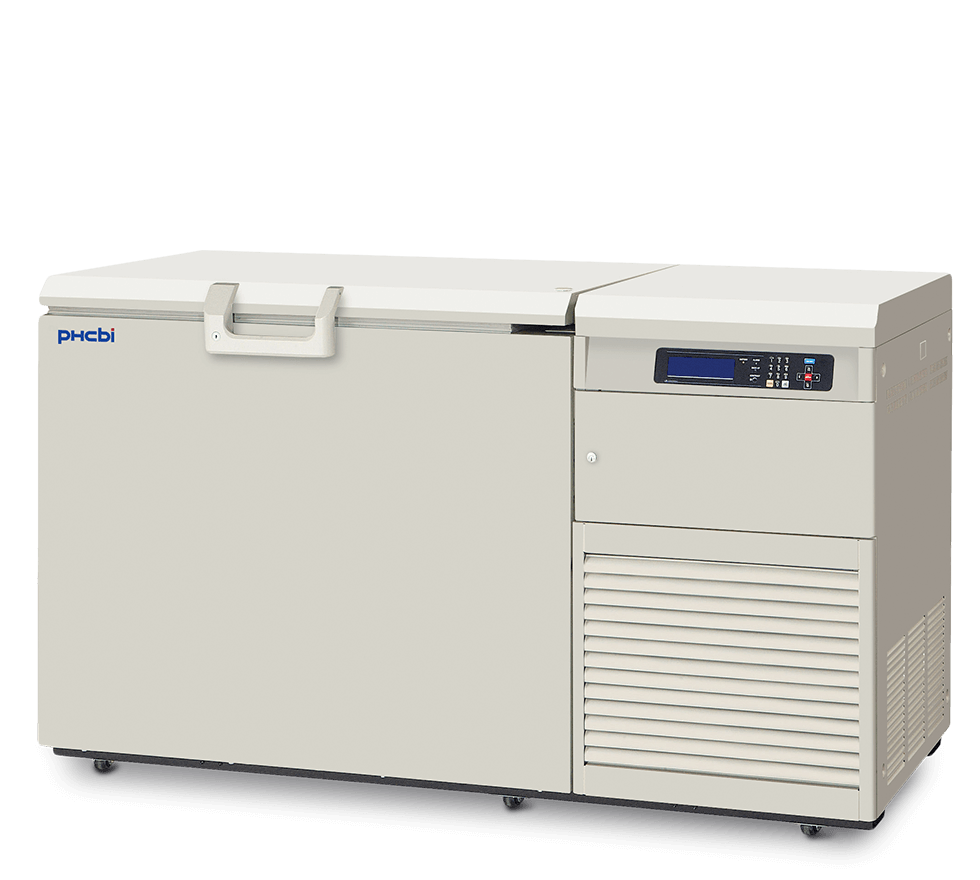

VIP Plus 8.2 cu.ft. -150°C Cryogenic Freezer

MDF-C2156VANC-PA

Effective capacity
8.2 cu.ft. (231 L)
Cooling Performance
-150℃

Model MDF-C2156VANC-PA Features

Mechanical, Air Phase Cryopreservation

The MDF-C2156VANC-PA cryogenic freezer is engineered from the inside out to create, maintain, and restore precise temperatures. The PHCbi brand mechanically refrigerated cryogenic freezer uses a reliable, high performance, hybrid cascade refrigeration system designed to achieve cryogenic temperatures of -150°C.

Mechanical cryogenic refrigeration eliminates the reliance on LN2 as a primary cooling medium for a more efficient storage medium known as "air phase" cryogenic storage. Air phase cryopreservation offers a more economical alternative to liquid nitrogen-based systems, with built-in redundancy safeguards for the ultimate in safe cryogenic preservation.

PHCbi VIP® Plus Insulation Technology

Inside-out engineering starts with our patented VIP Plus insulation composite which results in a highly efficient, thin-walled cabinet. The insulated inner lid improves temperature uniformity, minimizes cold air loss from frequent lid openings and extends warm-up times during power outages. The PHCbi VIP Plus cryogenic refrigeration offers superior performance providing unsurpassed uniformity in the chamber from top-to-bottom, side-to-side, and front-to-back.

High Capacity Storage, Minimal Cabinet Footprint

The VIP Plus cabinet design dramatically reduces wall thickness, allowing for increased cryogenic storage space in a smaller footprint. Store up to 165 2" boxes or 105 3" boxes.

Economic Alternative to LN2 Storage

The PHCbi MDF-C2156VANC-PA cryogenic freezer eliminates hazardous operating conditions as well as frequent maintenance and cost requirements of LN2 storage. It also minimizes the chance of cross-contamination among multiple samples in cryogenic storage.

Microprocessor Temperature Control

The integrated microprocessor-based controller and LCD graphic display allow for intuitive management and monitoring of critical set points. The controller uses an extremely precise and long-lasting platinum RTD sensor.

PHC Designed Compressors

The robust -150°C Cryogenic Freezer is powered by PHC designed compressors. This provides superior performance leading to faster pull-down speed and unsurpassed uniformity throughout the chamber.

Environmentally Friendly

Energy efficiency in VIP Plus freezers is achieved through balanced temperature performance and power management.


Overview

-150°C Cryogenic Freezer

The PHCbi VIP PLUS Cryogenic Series -150°C ultra-low temperature freezers offer superior performance. As a cryogenic freezer or cryogenic storage space, these products provide unsurpassed uniformity in the chamber, from top-to-bottom, side-to-side, and front-to-back.

The MDF-C2156VANC-PA, -150°C Cryogenic Freezer, cooling performance provides VIP Plus insulation for temperature uniformity for long-term storage, an economical alternative to LN2 storage, and maximum storage within a minimal footprint.

Request a Quote

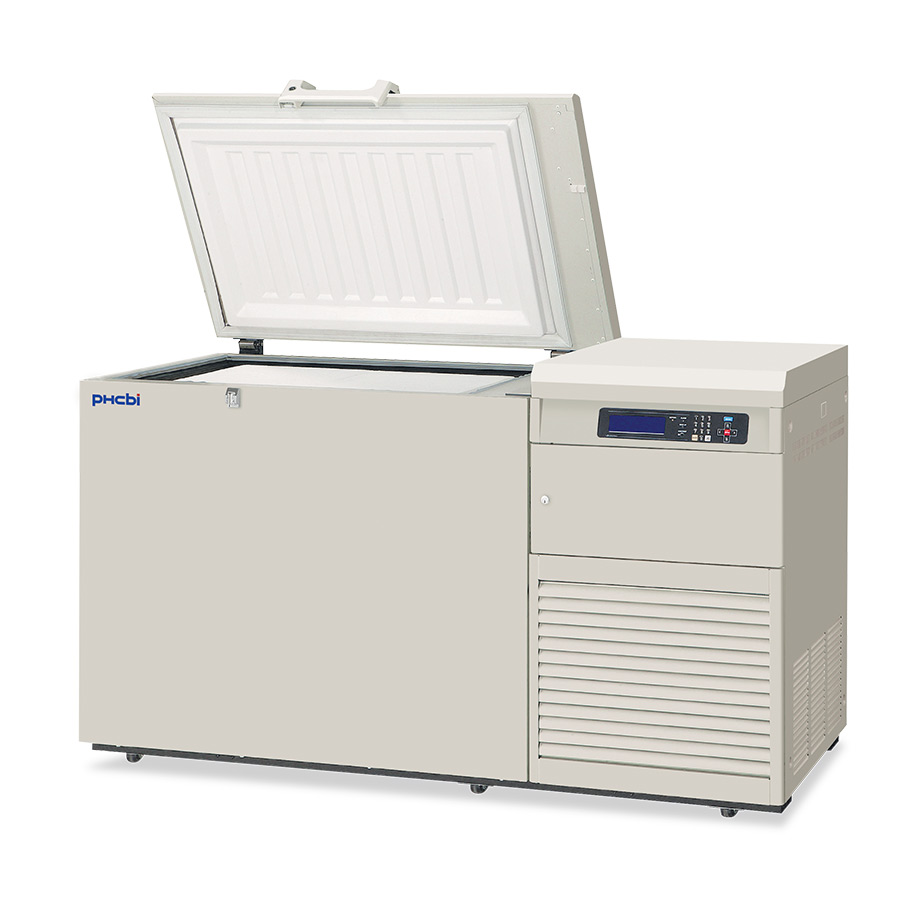

Product Photos

Specifications

EXTERNAL DIMENSIONS 68.1" W x 30.1" D x 39.8" H (1730 x 765 x 1010 mm)
INTERNAL DIMENSIONS 29.9" W x 19.5" D x 24.2" H (760 x 495 x 615 mm)
EFFECTIVE CAPACITY 8.2 cu.ft. (231 L)
INSULATION Rigid foamed-in-place and VIP Plus vacuum insulation panels
ACCESS PORT 1: side table, Inner diameter 1.5 in (40 mm)
NET WEIGHT 716.5 lbs (325 kg)
COMPRESSOR (1) 1100 W, High-stage hermetic type, (1) 1100 W, Low-stage hermetic type
EVAPORATOR High-stage cascade condenser type, Low-stage tube on sheet type
REFRIGERANT High-stage R407D, Low-stage HFC mixed refrigerant
TEMPERATURE CONTROL RANGE -125ºC to -150ºC (ambient temperature 30ºC, no load)
ALARMS High temperature, low temperature, power failure, door alarm, filter check
COOLING PERFORMANCE -150ºC center of the chamber (ambient temperature 30ºC, no load)
TEMPERATURE CONTROL SYSTEM Microprocessor control system
AREA FOOTPRINT 13.07 sq.ft. (1.15 m2)
DATA MANAGEMENT Optional with LabAlert Monitoring System
ENERGY CONSUMPTION AT 23oC AMBIENT 40.8 KWh/day
SOUND LEVEL 51 dB(A) [background noise 20 dB(A)]
STORAGE (BOXES) FOR 2”/51 MM FIBERBOARD BOXES 150
STORAGE (RACKS) FOR 2”/51 MM FIBERBOARD BOXES 15
STORAGE (BOXES) FOR 3”/76 MM FIBERBOARD BOXES 105
STORAGE (RACKS) FOR 3”/76 MM FIBERBOARD BOXES 15

Price

MDF-C2156VANC-PA Price Upon Inquiry. Please contact us.

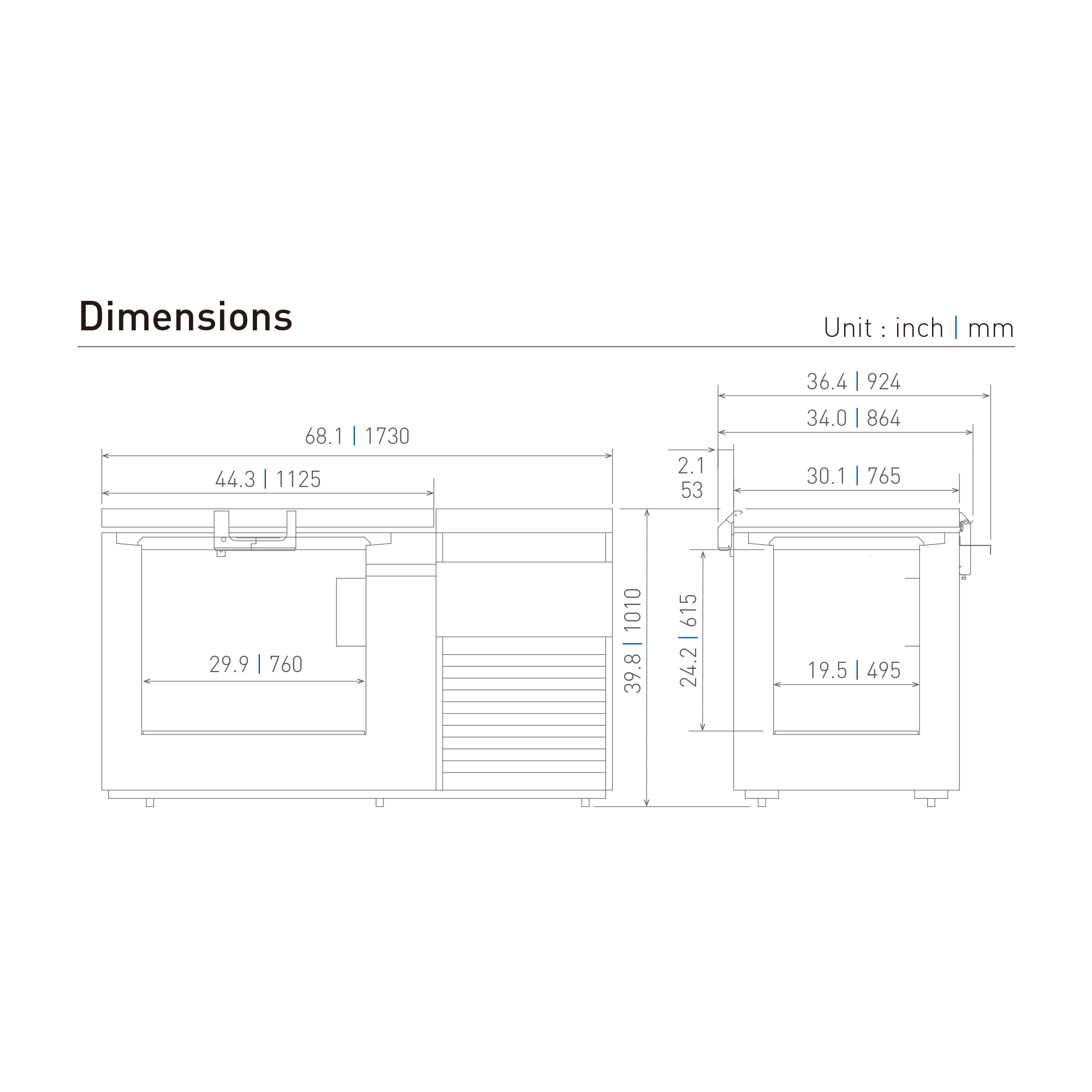

Dimensions
