48.2 cu.ft. Pharmacy Refrigerator

MPR-1412-PA

Effective capacity
48.2 cu.ft. (1364 L)
Temperature range
2℃ to 23℃

Model MPR-1412-PA Features

Purpose-Built Cold Chain Storage

PHCbi brand pharmaceutical refrigerators are engineered from the inside out to create, maintain and restore precise temperatures necessary for vaccine storage. Our purpose-built vaccine storage refrigerators are designed for temperature uniformity and stability that is not commonly found with household or commercial cabinets. PHCbi brand vaccine refrigerators satisfy current and evolving storage protocols essential for vaccine cold chain storage.

Adjustable Design

This CDC compliant pharmacy refrigerator offers a practical solution for storage with adjustable shelves and a wide setpoint range for varying laboratory applications, including biomedical storage and processing. The interior layout makes it ideal for running experiments that require changeable shelf configurations. The shelves can be arranged to accommodate all heights, and deep and strong enough to hold processing equipment and most devices.

Cycle Defrost System

Defrosting is performed automatically and only when required, protecting contents against unnecessary temperature rise. The defrosting heater provides protection from freezing in extremely low ambient temperature conditions.

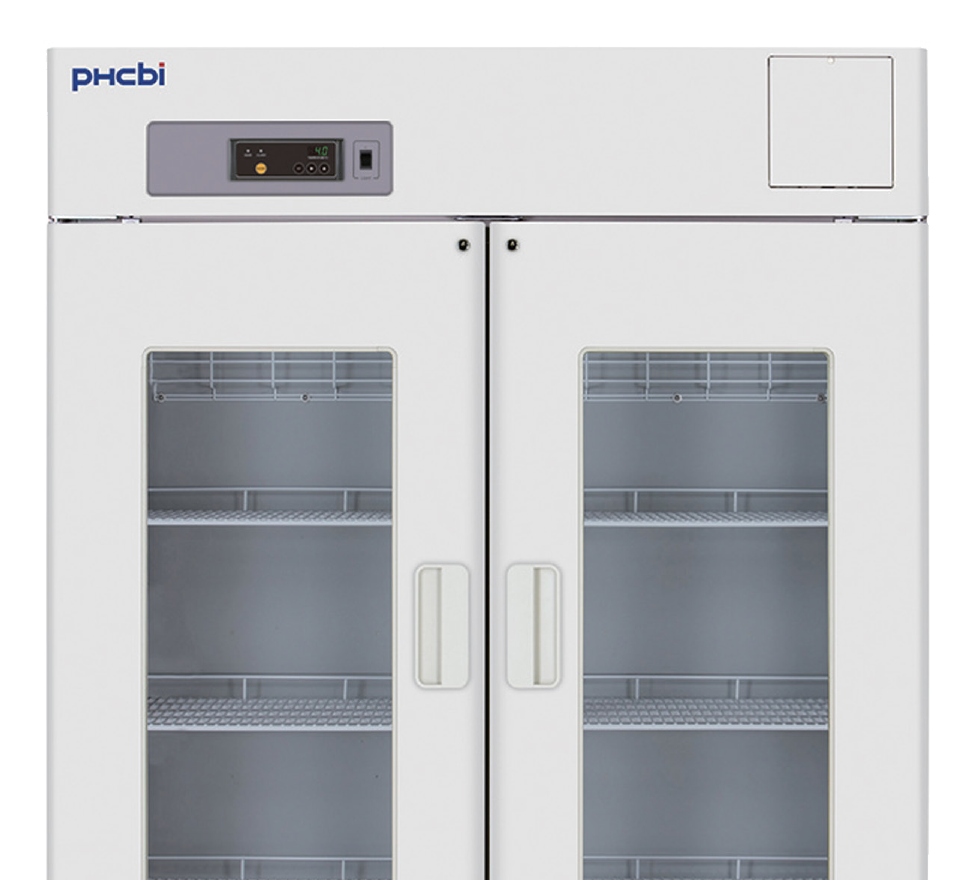

Microprocessor Controller and Alarms

The temperature control system, with a microprocessor, maintains true temperature at the set level and is unaffected by outside ambient temperature. Audible and flashing LED visual alarms alert the user to the unlikely event of either a high or low temperature status.

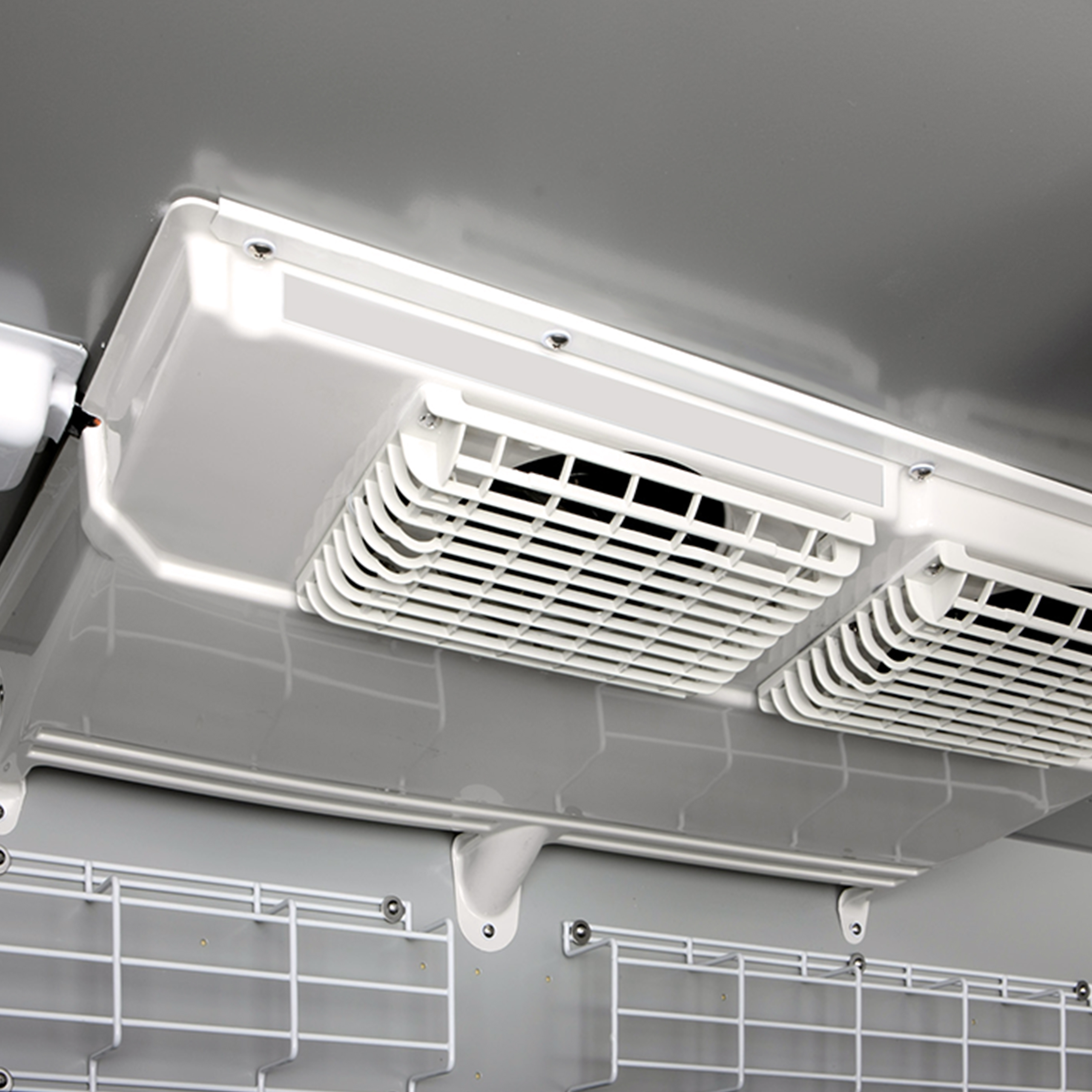

Uniform Temperature with Forced Air Circulation

The fan-forced air circulation and efficient temperature recovery properties allow for precise temperature conditions.

Efficient and Superior Pharmaceutical Refrigerator

High performance compressors and components deliver fast temperature pull-down, recovery and tolerance for high ambient temperature conditions. This energy efficient system improves LEED scores and contributes to global sustainability.

Overview

Energy Saving Pharmaceutical Refrigerator

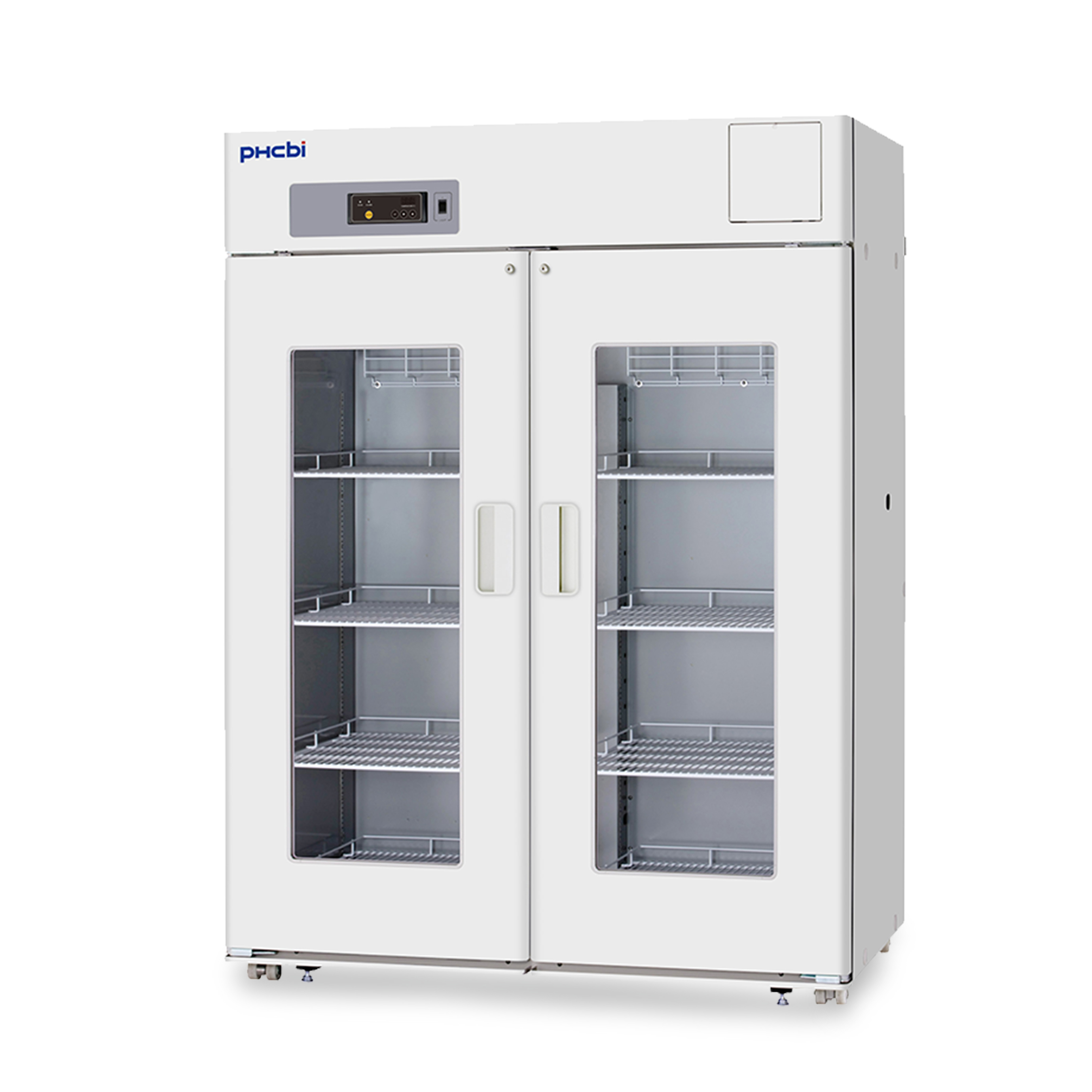

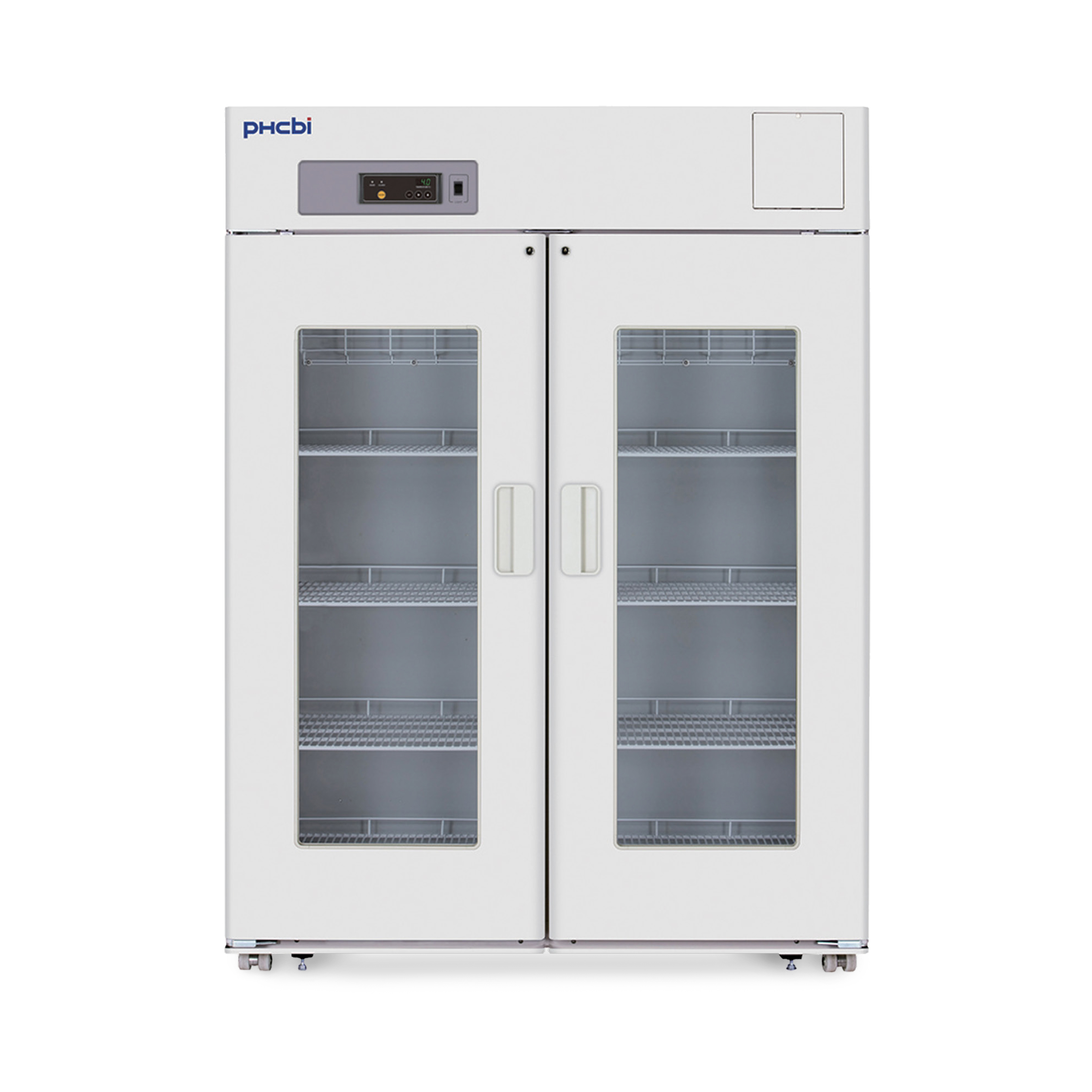

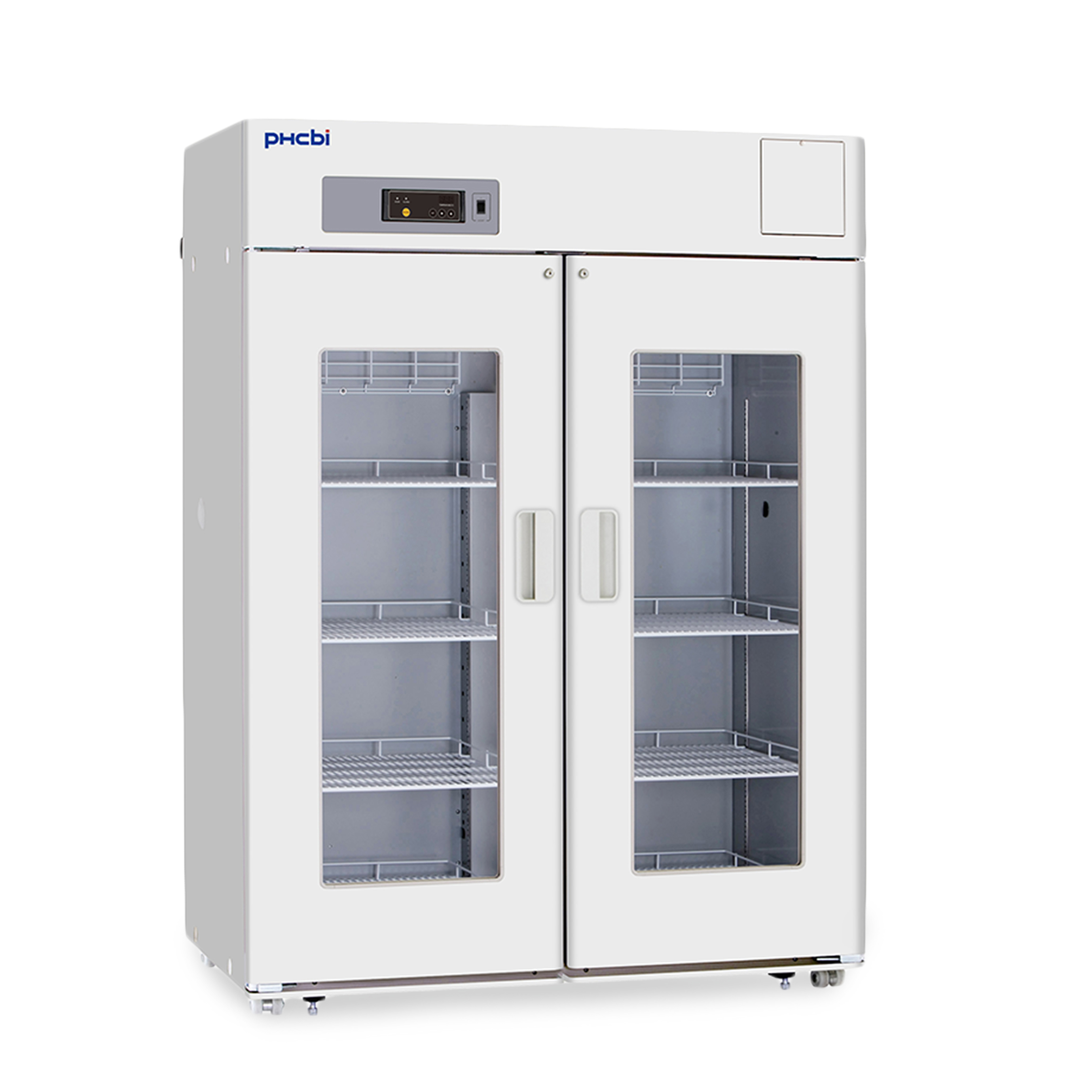

The MPR-1412-PA is a large capacity pharmacy refrigerator delivering a stable and reliable environment for managing clinical, pharmaceutical and biomedical storage and processing at uniform temperatures. Easy to use features and design and precise temperature control with fast recovery following door openings, assures safe storage during frequent access and high ambient conditions.

SNAP Refrigerants and PHC Compliance with EPA Recommendations

Model MPR-1412-PA operates on new generation SNAP compliant, low flammability HFO refrigerants to assure low environmental impact. The use of SNAP compliant refrigerants (Significant New Alternatives Policy) established by the United States Environmental Protection Agency underscores our recognition of social responsibility and environmental sustainability by integrating the latest refrigeration technology. For information on SNAP refrigerants visit https://www.epa.gov/snap.

Request a Quote


Product Photos

Specifications

EXTERNAL DIMENSIONS 56.7" W x 36.2" D x 76.8" H (1440 x 920 x 1951 mm)*
INTERNAL DIMENSIONS 52.0" W x 28.0" D x 59.1" H (1320 x 710 x 1500 mm)
EFFECTIVE CAPACITY 48.2 cu.ft (1364 L)
INSULATION CFC free, rigid polyurethane foamed-in-place
SHELVES 8 shelves (adjustable)
ACCESS PORT 3: Left/right sides, ceiling (1.1"(30 mm) diameter)
COOLING METHOD Forced air circulation with double fan
COMPRESSOR Hermetic type, Output; 250 W
EVAPORATOR Fin tube type
REFRIGERANT SNAP Approved HFO R-513A
DEFROSTING Forced type (cycle defrost system), fully automatic hot pipe for automatical evaporation for drain water
TEMPERATURE CONTROL RANGE Thermistor sensor; Temp. control range: 2 °C to 14 °C (ambient temp. – 5 °C to 0 °C no-load) 2 °C to 23 °C (ambient temp. 0 °C to 35 °C no-load) (1 °C step)
ALARMS High temperature, low temperature, door ajar, power failure
NET WEIGHT 547 lbs (248 kg)
DOOR LOCK 2 x cylinder lock
TEMPERATURE CONTROL SYSTEM Microprocessor controlled on / off type.
AREA FOOTPRINT 12.46 sq.ft. (1.16 m2)
DATA MANAGEMENT Optional with LabAlert Monitoring System
SOUND LEVEL 42 dB(A) (background noise 20 dB(A))
ENERGY STAR CERTIFIED ENERGY STAR Unique ID 2362123
*Consult Doorway Instructions documentation below for doorway entry instructions, less than 36.2"
