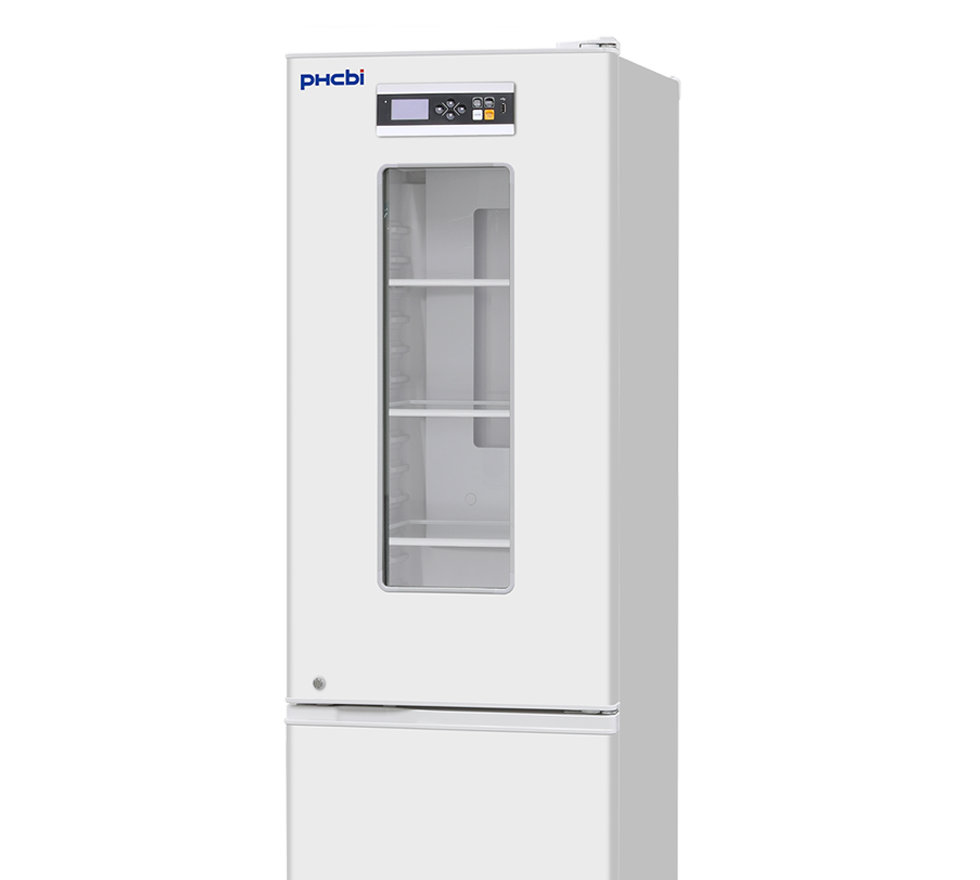

6.3 cu.ft. Ref and 2.8 cu.ft. Frzr Pharmaceutical Refrigerator Freezer Combo

MPR-N250FH-PA

Effective capacity
Refrigerator 6.3 cu.ft. (179 L) | Freezer 2.8 cu.ft. (80 L)
Temperature range
Refrigerator 2℃ to 14℃ | Freezer -20℃ to -30℃

Model MPR-N250FH-PA Features

Purpose-Built Cold Chain Storage

PHCbi brand pharmaceutical refrigerator/freezer combination units are engineered from the inside out to create, maintain, and restore precise temperatures necessary for vaccine storage. Designed specifically for storage not only of vaccines but also other pharmaceuticals, our purpose-built refrigerator/freezer combination units are designed for temperature uniformity and stability that is not commonly found in household or commercial cabinets. Separate refrigerator and freezer compartments provide a wider range of temperature storage points to accommodate a variety of vaccine product cold chain requirements. PHCbi brand vaccine cold chain storage solutions satisfy current and evolving storage protocols essential for continued vaccine efficacy.

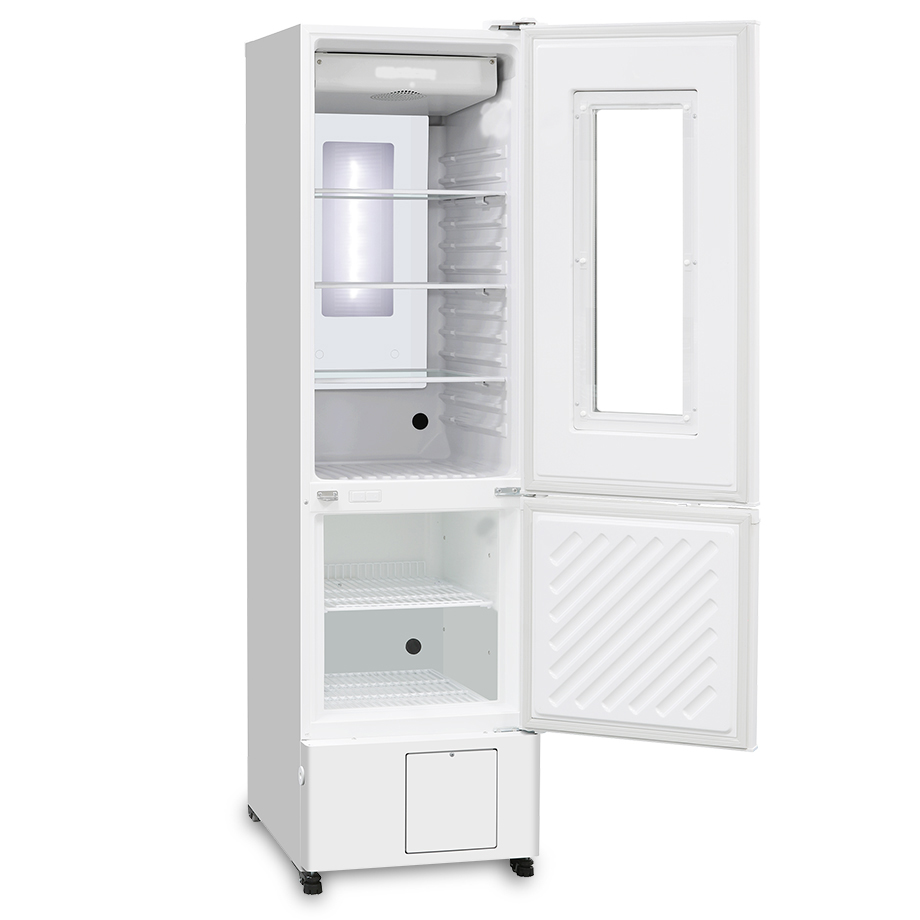

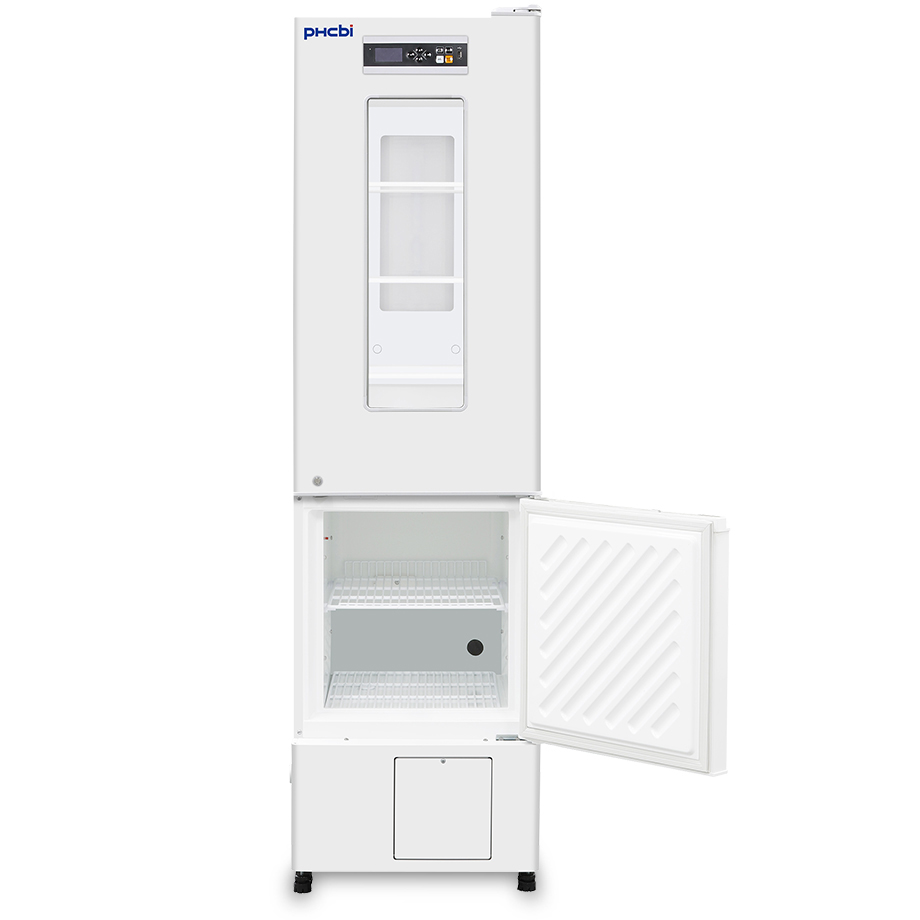

Independent Refrigeration Systems

The single cabinet includes two independent temperature-controlled chambers with separate refrigeration systems. The freezer system maintains temperatures as low as -30°C and can be set between -20°C and -30°C, while the refrigerator system allows for a temperature between +2°C to +14°C.

Natural Refrigerants

Natural refrigerants help achieve facility sustainability objectives without compromising cooling performance and reliability. The use of refrigerants compliant with SNAP (Significant New Alternatives Policy), established by the United States Environmental Protection Agency, underscores our recognition of social responsibility and environmental sustainability by integrating the latest refrigeration technology. For more information on SNAP refrigerants, visit https://www.epa.gov/snap.

Excellent Temperature Uniformity

Forced air circulation/back wall plenum in the refrigerator provides even horizontal air distribution for precise temperature uniformity and efficient temperature recovery to setpoint quickly following routine door openings. Temperatures remain stable wherever products are stored.

Sample Storage Security

The refrigerator evaporator operates above freezing temperatures, reducing the need for defrost and avoiding product exposure to freezing temperatures. This laboratory refrigerator freezer combination is ideal for reagents, vaccine storage, and samples.

Microprocessor Controls

The PHCbi brand microprocessor control system is door mounted at eye level for user access convenience. An OLED alphanumeric display provides alarm conditions (power fail, high and low temperature alarms, door ajar), including refrigerator/freezer temperature display simultaneously or individually.

Validated Storage

The PHCbi brand pharmaceutical refrigerator freezer combination is designed to assure stored product safety to meet regulatory guidelines and international standards for vaccines, biological materials and other cold chain storage.

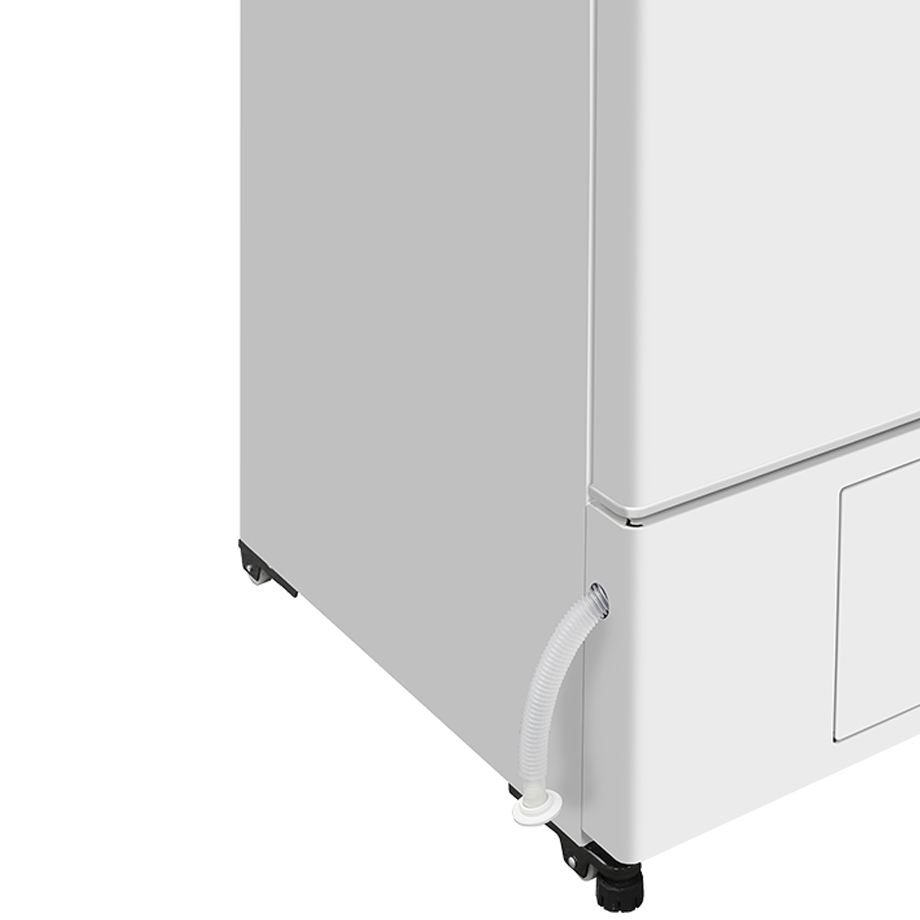

Defrost System

The MPR-N250FH-PA includes manual defrost for the freezer compartment and automatic defrost for the refrigerator compartment.

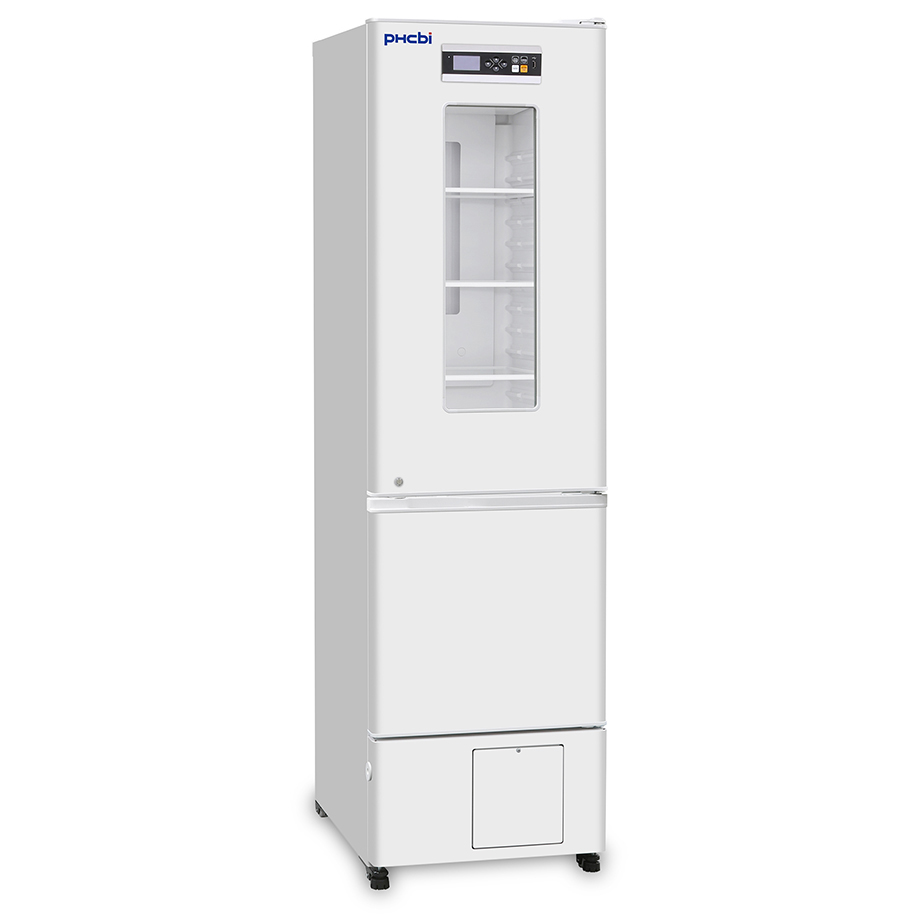

Slim Profile Cabinet

The compact footprint permits easy installation in narrow aisles and hallways for greater flexibility. The MPR-N250FH-PA has a 3.5 sq.ft. footprint and requires only 20.4" (518 mm) clearance for door openings.

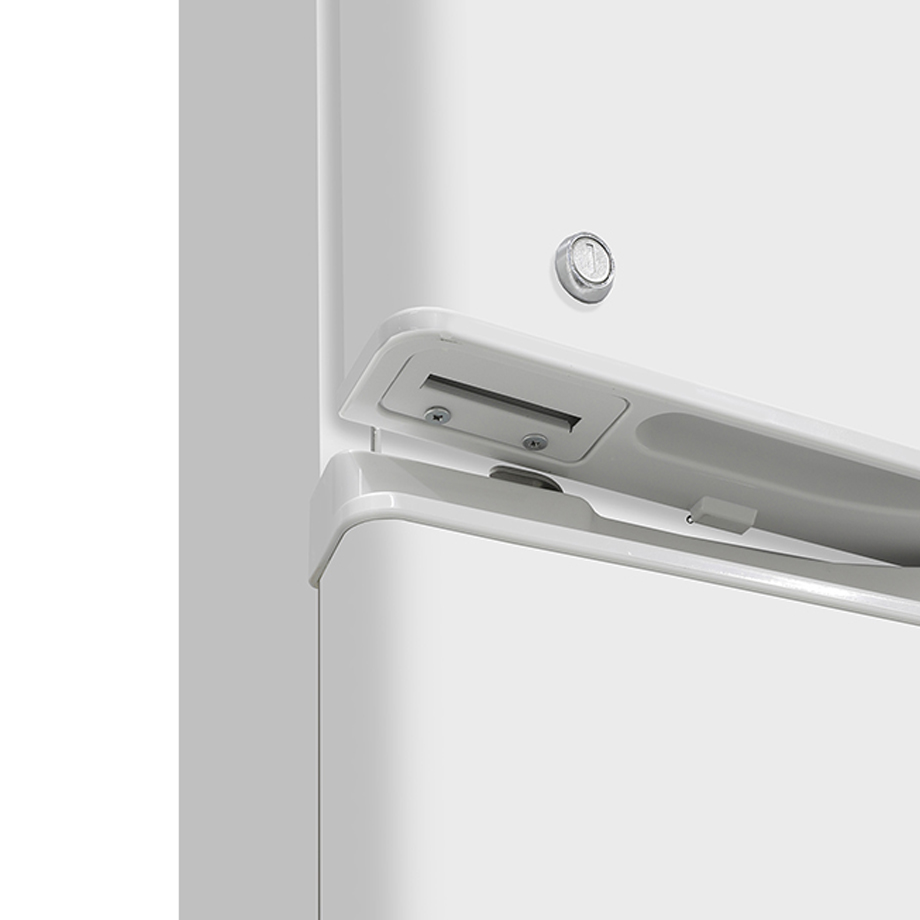

Chamber Access/Security

The slim profile cabinet is designed with a triple-paned viewing window. The key lock increases security of the refrigerator and freezer compartments.

Overview

Biomedical Refrigerator with Freezer

With the growing emphasis on proper storage of laboratory and pharmaceutical materials, the PHCbi Model MPR-N250FH-PA combines high performance refrigeration with a -30°C freezer in a small footprint. Separate refrigeration systems and compressors in the MPR-N250FH-PA laboratory refrigerator/freezer combination enable flexible, reliable and convenient vaccine and biological material storage. The combination refrigerator/freezer maintains proper temperature uniformity essential for the storage of vaccines, pharmaceuticals, reagents, and other biological materials.

Request a Quote


Product Photos

Specifications

EXTERNAL DIMENSIONS 20" W x 25.1" D x 71.2" H (510 x 640 x 1810 mm)
INTERNAL DIMENSIONS Refrigerator 16.9" W x 20.3" D x 35.5" H (430 x 516 x 903 mm) | Freezer 15.3" W x 19.7" D x 16.2" H (390 x 501 x 413 mm)
EFFECTIVE CAPACITY Refrigerator 6.3 cu.ft. (179 L) | Freezer 2.8 cu.ft. (80 L)
INSULATION Polyurethane foam-in-place, CFC free
SHELVES (3) Tempered glass, adjustable (Ref) | (1) PE coated wire (Frz)
ACCESS PORT 2: (1) Back wall, left (1.2" (30 mm) diameter) and (1) Lower back middle (1.2" (30 mm) diameter)
COMPRESSOR (1) 120, inverter (Refrigerator), (1) 120 (Freezer)
REFRIGERANT SNAP Approved HC R-600A (Refrigerator) HC R-290 (Freezer)
TEMPERATURE CONTROL RANGE 2ºC~+14ºC (Refrigerator); -30ºC~-20ºC (Freezer)
ALARMS High temperature, low temperature, 0°C (refrigerator only), door, power failure, over-heat protector (refrigerator), over-cool protector (refrigerator), key lock, thermal sensor abnormality, circuit breaker (acts as power switch)
NET WEIGHT 210 lbs (95 kg)
TEMPERATURE CONTROL SYSTEM Microprocessor Control System
DATA MANAGEMENT Optional with LabAlert Monitoring System
SOUND LEVEL 40 dB(A)
USB LOGGING FUNCTION Logs 3 months of data at 12 minute intervals
DISPLAY OLED alphanumeric | Select refrigerator, freezer or concurrent
NATURAL REFRIGERANT HC R-600a (Ref) | HC R-290 (Frz)
EXTERIOR MATERIAL Painted steel
INTERIOR MATERIAL Colored steel / ABS resin (Refrigerator) Painted steel (Freezer)
CASTERS (4) plus 2 leveling feet on front base

Price

MPR-N250FH-PA Price Upon Inquiry. Please contact us

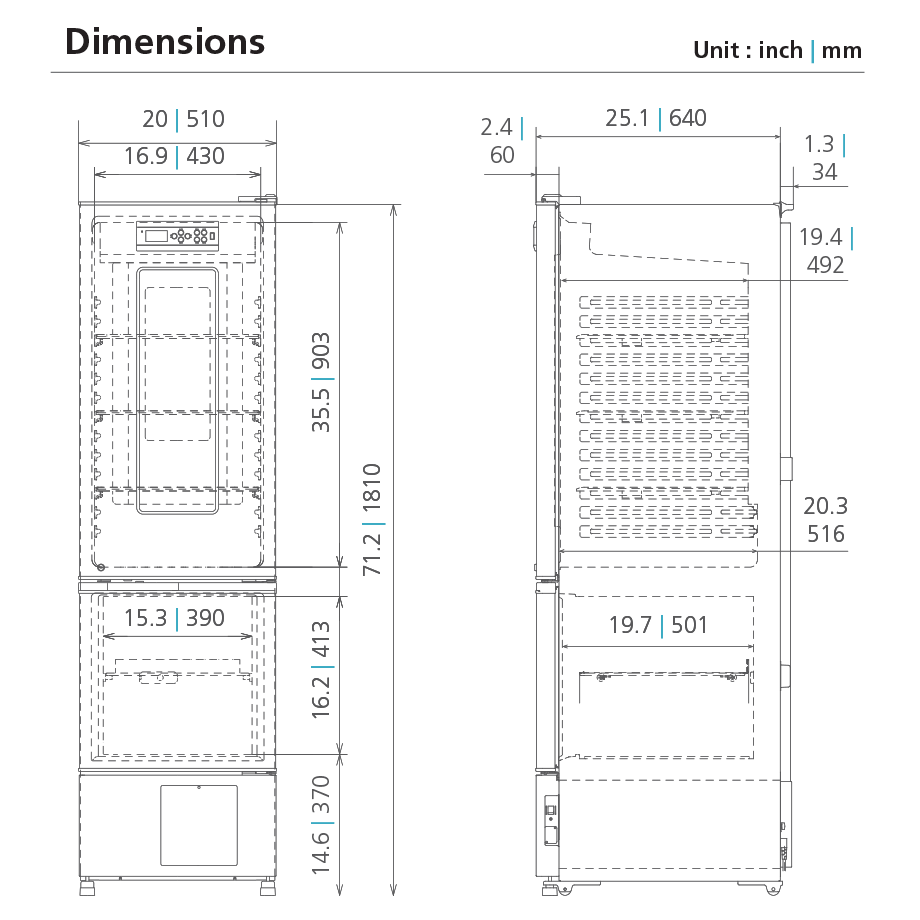

Dimensions

Catalog Download
