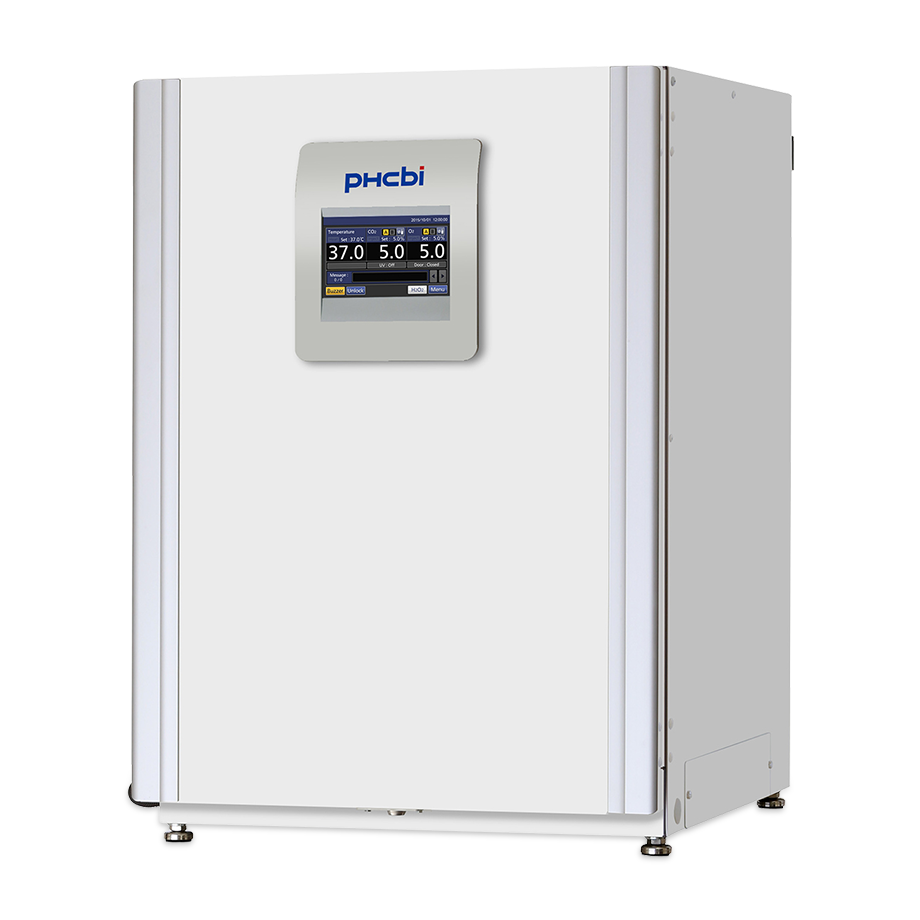

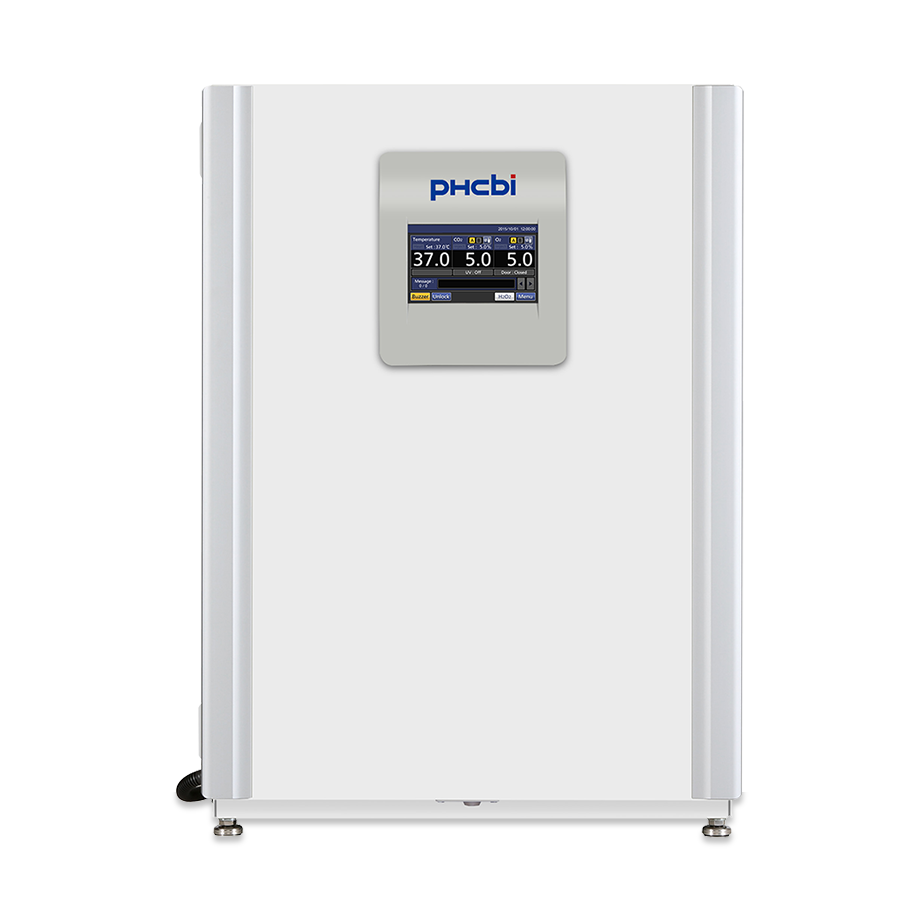

Cell-IQ 5.7 cu.ft. Multigas CO2/O2 Incubator

MCO-170MP-PA

Effective capacity
5.7 cu.ft. (161 L)
Temperature range
+5°C above ambient to +50°C

H2O2

*Optional MCO-170HB/MCO170EL installation required.

MCO-170MP-PA Features

Cell Culture Incubators Capabilities

As a crucial piece of laboratory equipment, PHCbi brand cell culture incubators are designed to ensure highly accurate, reproducible chamber conditions. Our cell culture incubators provide a contamination-free environment while allowing precise CO2 or CO2/O2 control - essential for in vivo environment replication.

Reproduction of In Vivo Conditions

The solid zirconia O2 sensor allows precise control of oxygen levels in order to simulate in vivo conditions similar to a cell's native surroundings. The MCO-170MP-PA multigas incubator reproduces low oxygen concentrations that are often found in tissues, organs and pathogenic tissues.

Time Saving Decontamination

An optional high speed decontamination system uses hydrogen peroxide (H2O2) vapor to clean the incubator chamber in under three hours. The system safely and efficiently decontaminates with a 100% kill rate of major contaminants.

Contamination Control with SafeCell™ UV and InCu-saFe®

The PHCbi inCu-saFe combines the germicidal properties of elemental copper with the corrosion and discoloration resistance of stainless steel to deliver passive contamination control throughout the chamber interior. The SafeCell UV lamp provides safe, active and passive contamination control of circulated air and the humidity water reservoir. SafeCell scrubs and decontaminates circulated chamber air without affecting cell cultures in situ.

Direct Heat and Air Jacket System

Superior temperature uniformity and accurate temperature levels are achieved by the microprocessor controlled Direct Heat and Air Jacket System, which functions under microprocessor control.

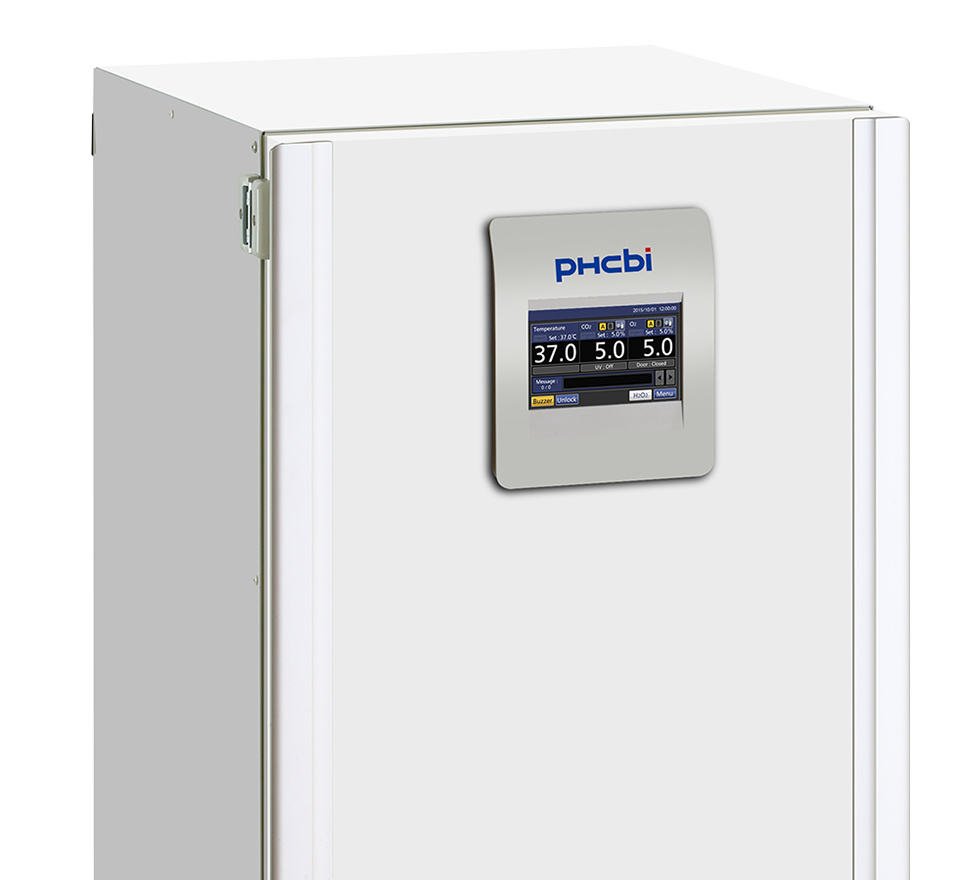

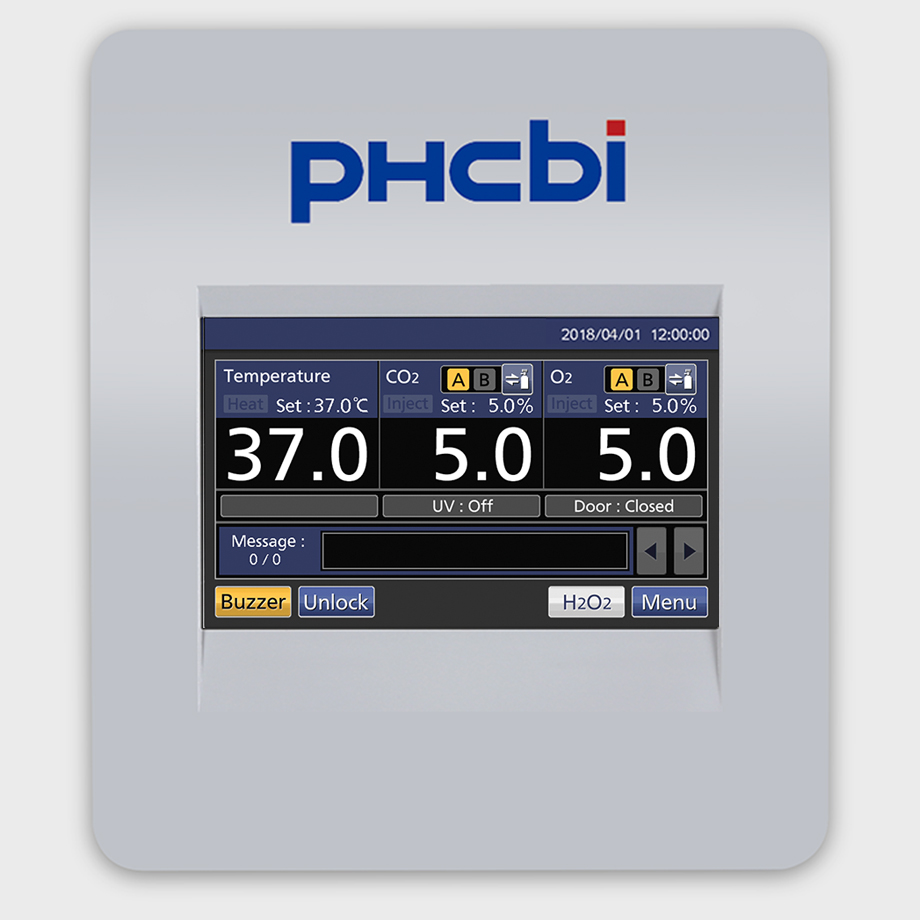

Color LCD Display

The high contrast color LCD display allows for easy, touchscreen use even with gloved hands. The control panel interface allows for easy programming of temperature, CO2, O2 and other internal conditions of your incubator.

USB Log Function for Data Transfer and Storage

A standard USB port simplifies the storage or transfer of logged data.

Rapid CO2 Density Recovery

Proprietary IR2 sensor achieves ultrafast CO2 recovery without overshoot, even following multiple door openings.

Overview

Cell IQ™ Multigas CO2/O2 Incubators

The PHCbi multigas incubators optimize mammalian cell cultures through variable O2 control to better mimic in vivo conditions for regenerative medicine and stem cell applications. The MCO-170MP-PA CO2 O2 incubator allows you to achieve more accurate results by culturing your cells at physiological oxygen levels.

For a copy of Benefits of Oxygen Control in the Cell Culture Incubator, click here to download.

Request a Quote


Videos



Product Photos

Specifications

EXTERIOR DIMENSIONS 24.4" W x 28.7" D x 35.6" H (620 x 730 x 905 mm)
INTERIOR DIMENSIONS 19.3" W x 20.6" D x 26.2" H (490 x 523 x 665 mm)
INTERIOR VOLUME 5.7 cu.ft. (161 L)
OUTER DOOR Heated, painted steel

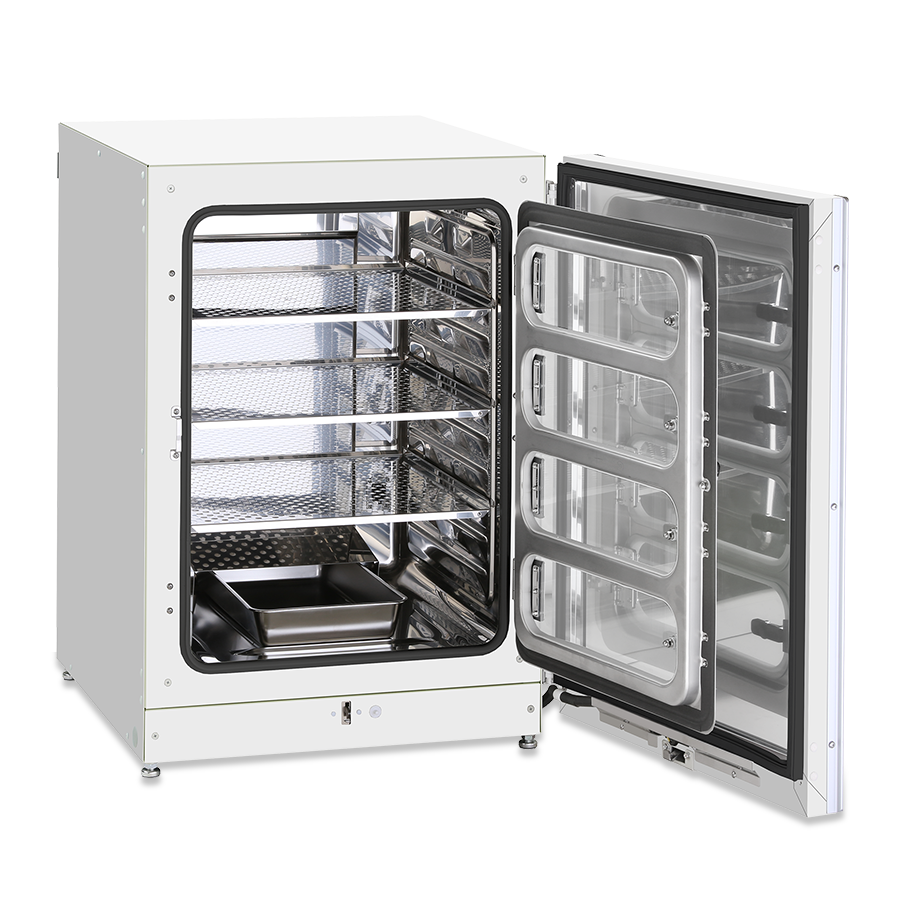

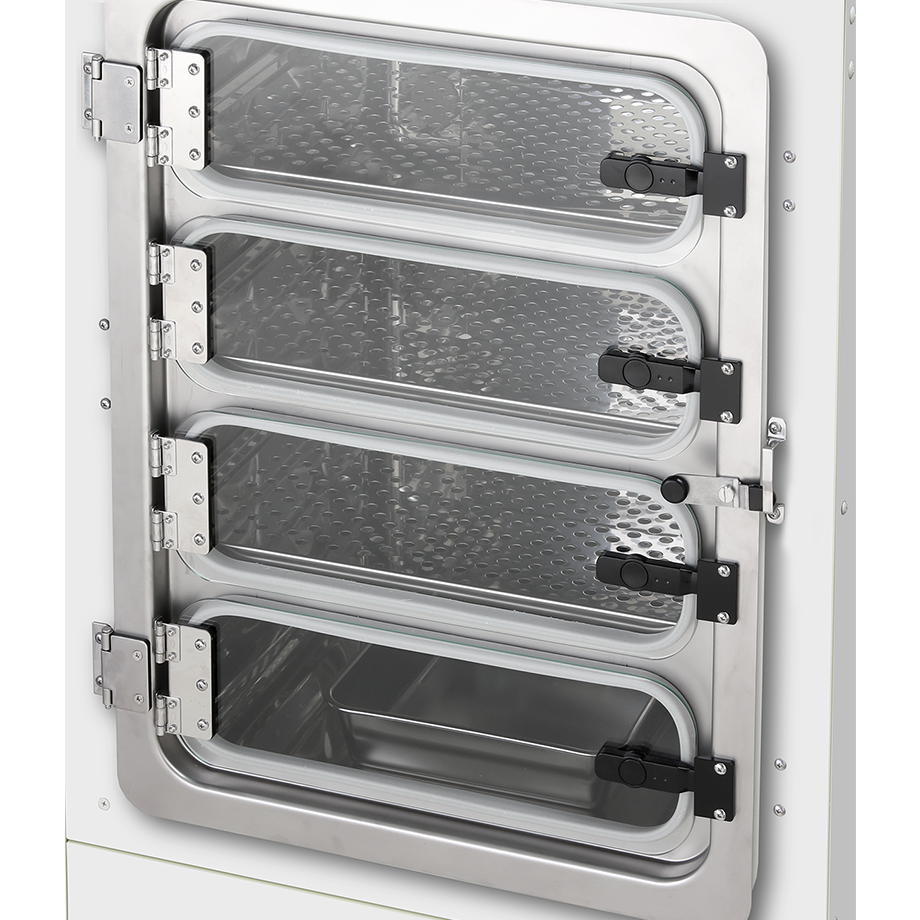

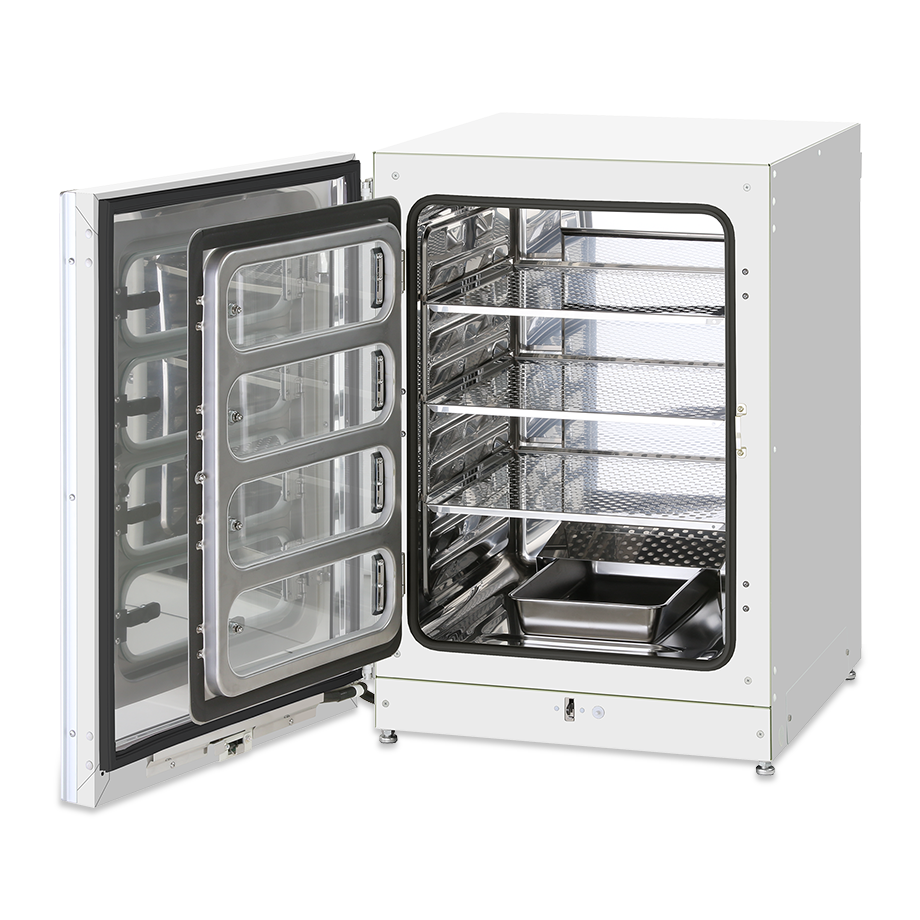

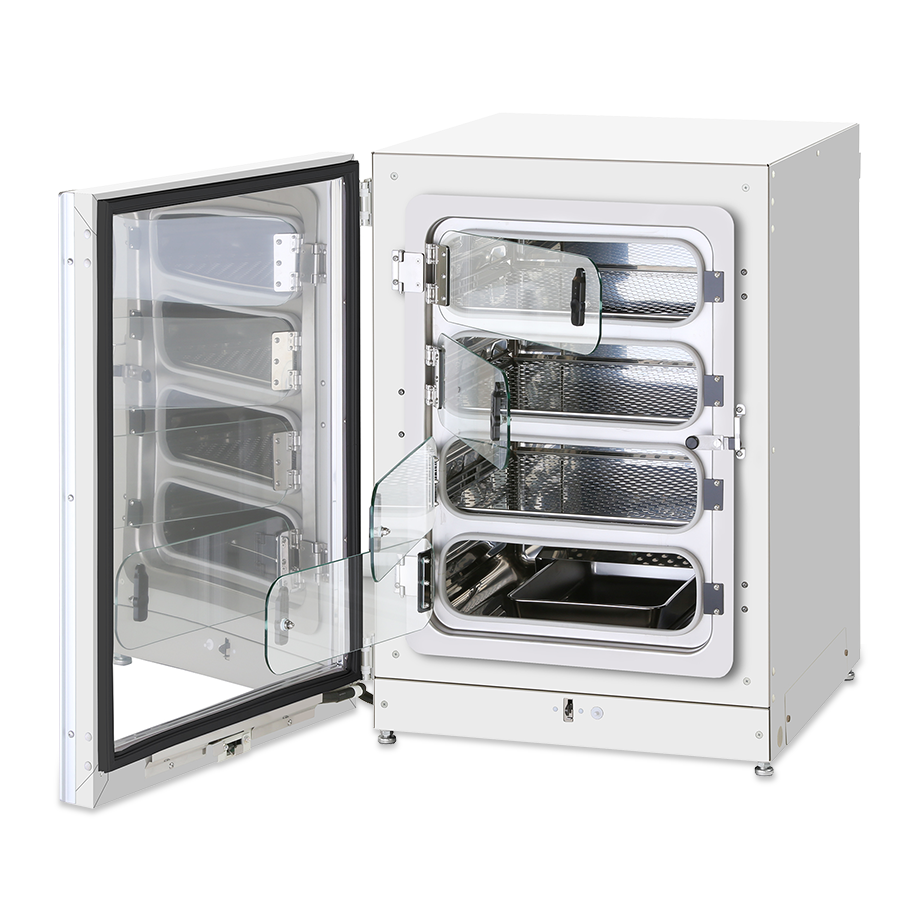

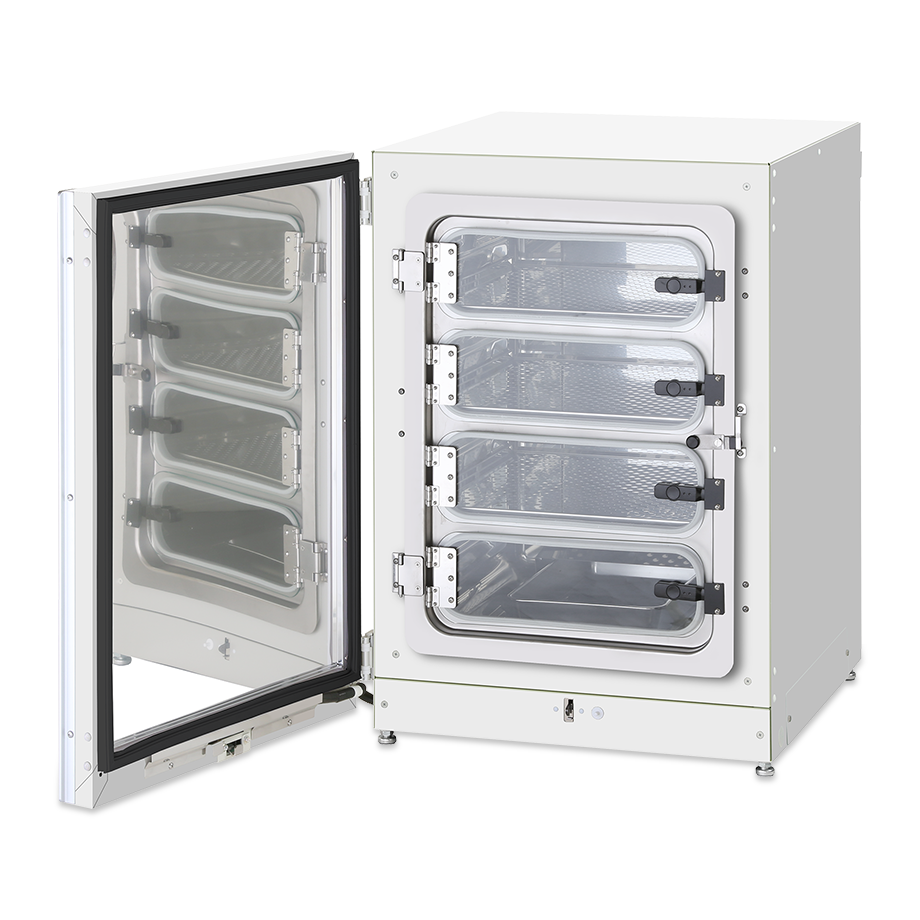

INNER DOOR 4 sealing tempered glass inner doors
SHELVES 3 stainless steel copper enriched alloy shelves; 18.5" x 17.7" (470 x 450 mm)
ACCESS PORT 1: Rear upper left (1.2" (30 mm) diameter)
INSULATION Polystyrene
UV LAMP Optional
NET WEIGHT 170 lbs. (77 kg)
TEMPERATURE CONTROL RANGE Ambient +5°C to +50°C
TEMPERATURE UNIFORMITY ±0.25°C (Ambient temperature 23°C, setting 37°C, CO2 5%, O2 5%, no load)
CO2 CONTROL RANGE 0% to 20%
CO2 VARIATION ±0.15%
CO2 SENSOR TYPE Dual Filter IR
CONTAMINATION CONTROLS InCu-SaFe copper enriched stainless steel interior and shelves, optional SafeCell UV light
DECONTAMINATION CYCLE TIME <3.0 Hours
DISPLAY LCD touchscreen
HEATING SYSTEM Direct Heat and Air Jacket System
INTERIOR SURFACES InCu-saFe copper enriched with stainless steel alloy
OXYGEN CONTROL RANGE 1-18% & 22-80%, ±0.2%; stabilized Zirconia Sensor

Price

MCO-170MP-PA Price Upon Inquiry. Please contact your local dealers.

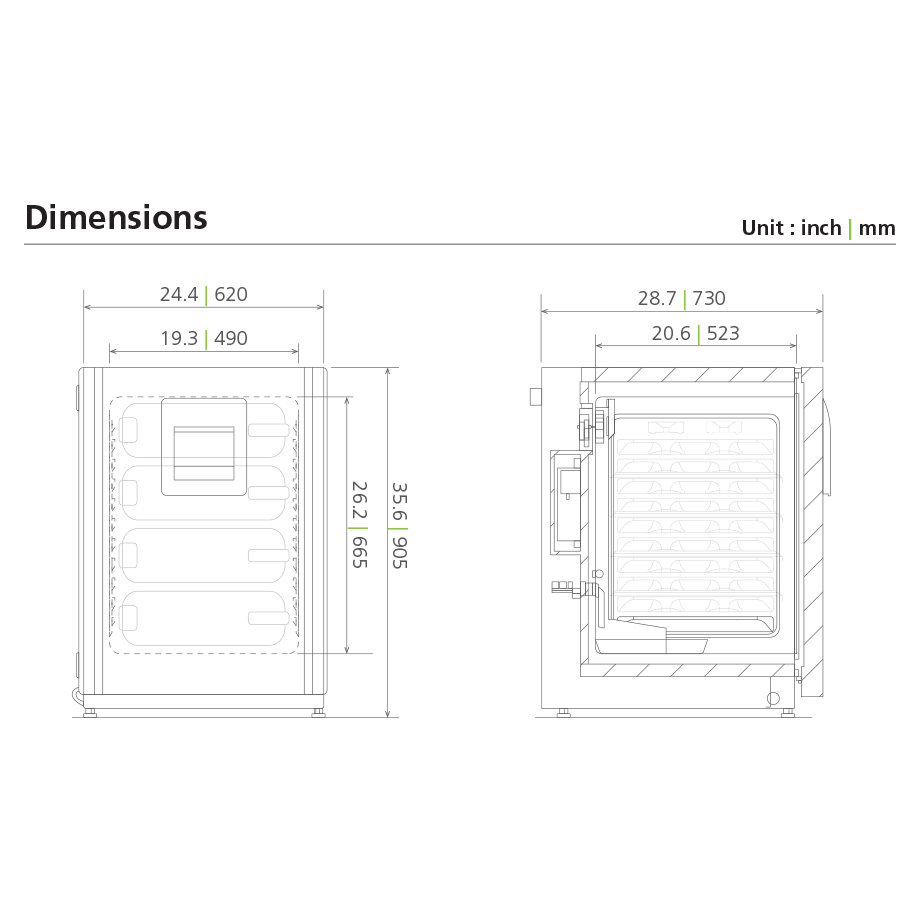

Dimensions
