MIR Series 14.3 cu.ft. Large Capacity Microbiological Incubator

MIR-554-PA

Effective capacity
14.3 cu.ft. (406 L)
Temperature range
-10℃ to +60℃

Model MIR-554-PA Features

Laboratory Incubators Capabilities

PHCbi brand laboratory incubators are designed to ensure highly accurate, reproducible environments that mimic real-world conditions. Our laboratory incubators allow for precise control of temperature, a low humidity setting and lighting protocols - making them ideal for microbiology testing and research, food and cosmetic shelf life testing, and municipal wastewater testing, plant cell culturing and more. Robust cabinet construction with corrosion-resistant stainless-steel surfaces simplify cleaning and eliminate rust due to high humidity in these heated and cooled incubators. PHCbi brand laboratory incubators use SNAP compliant, low flammability refrigerants to assure low environmental impact.

Versatile Applications

The PHCbi large capacity microbiological incubators offer accurate temperature control and consistent uniformity making them suitable for laboratory culturing, industrial incubation and various testing applications.

Wide Temperature Range

This refrigerated incubator offers accurate temperature control and uniformity in wide temperature ranges (-10°C up to +60°C) with excellent chamber uniformity. The microprocessor allows for precision temperature control combined with a heater PID and compressor ON-OFF system. With a feed forward function that inputs the operating conditions of the compressor beforehand, the system ensures accurate temperature control for the chamber.

Ergonomic Cabinet Design

The MIR-554-PA features improved usability with modern design, reversible door, adjustable low vibration and gentle air circulation that reduces media drying.

Microprocessor Controls

The MIR Series large capacity microbiological incubator has an 8-bit microprocessor controller for heat and refrigeration control +/-2°C. This compact microbiological incubator is completely programmable, allowing for direct numeric input with memory of operation, start dates and hours, clock mode and timer. The LCD control improves user interface for better programming and control.

Memory Backup

Should the power source be interrupted due to power failure or other event, programmed data remains stored in memory semi-permanently. When the power source is restored, operation can be continued according to the predetermined program.

Programmable Operational Functions

Program input is simple and accommodates a range of diversified experimentation requirements. It is ideal during night time or weekend experimentation or experimentation that requires setting changes. It is also ideal for microorganism cultures and preservation.

Videos



Overview

MIR Series Refrigerated Incubator

The MIR-554-PA large capacity microbiological incubator is recognized as an exceptional unit suitable for a wide range of applications that require a temperature range of -10°C to +60°C. Programmable models include three-step functions useful for investigations involving microbiology, plant cell biology and more.

The MIR-554-PA refrigerated incubator provides an ergonomic cabinet design, versatile applications usage and a wide temperature range control.

Request a Quote

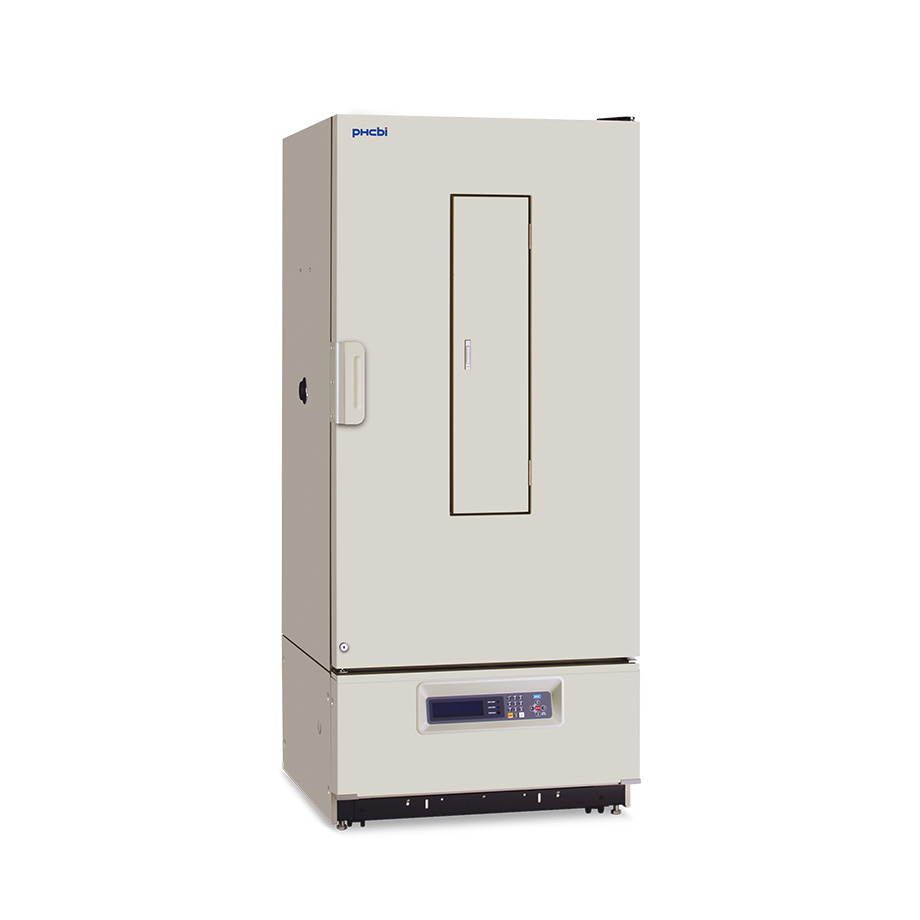

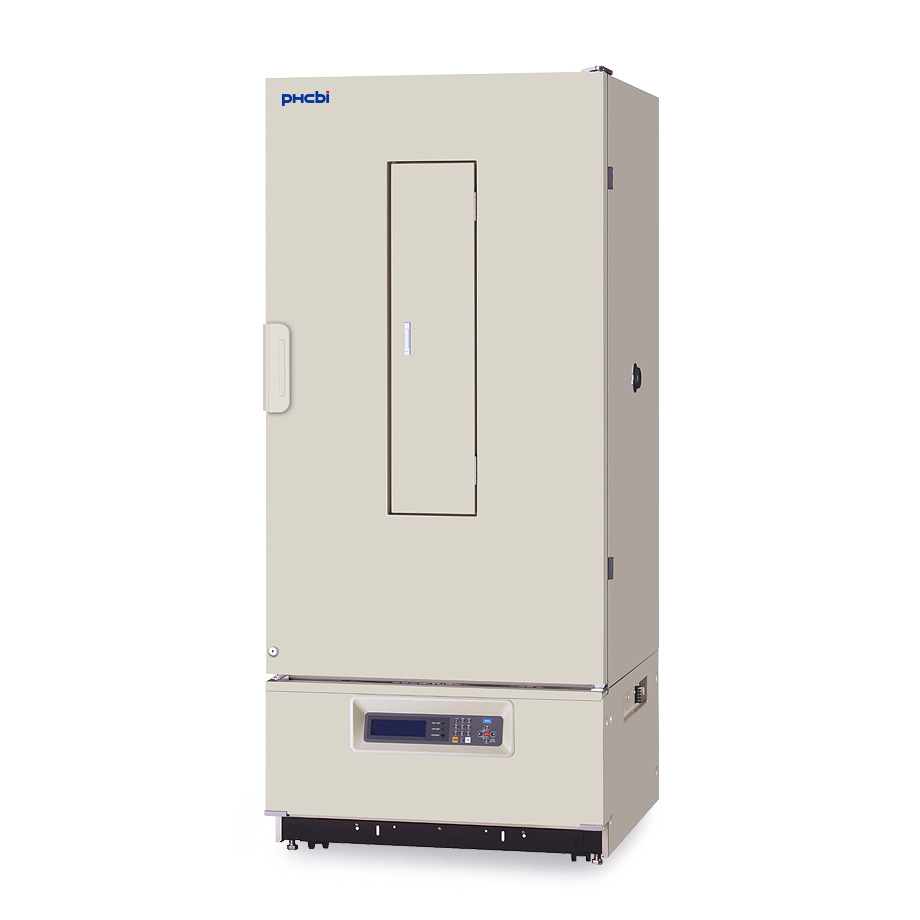

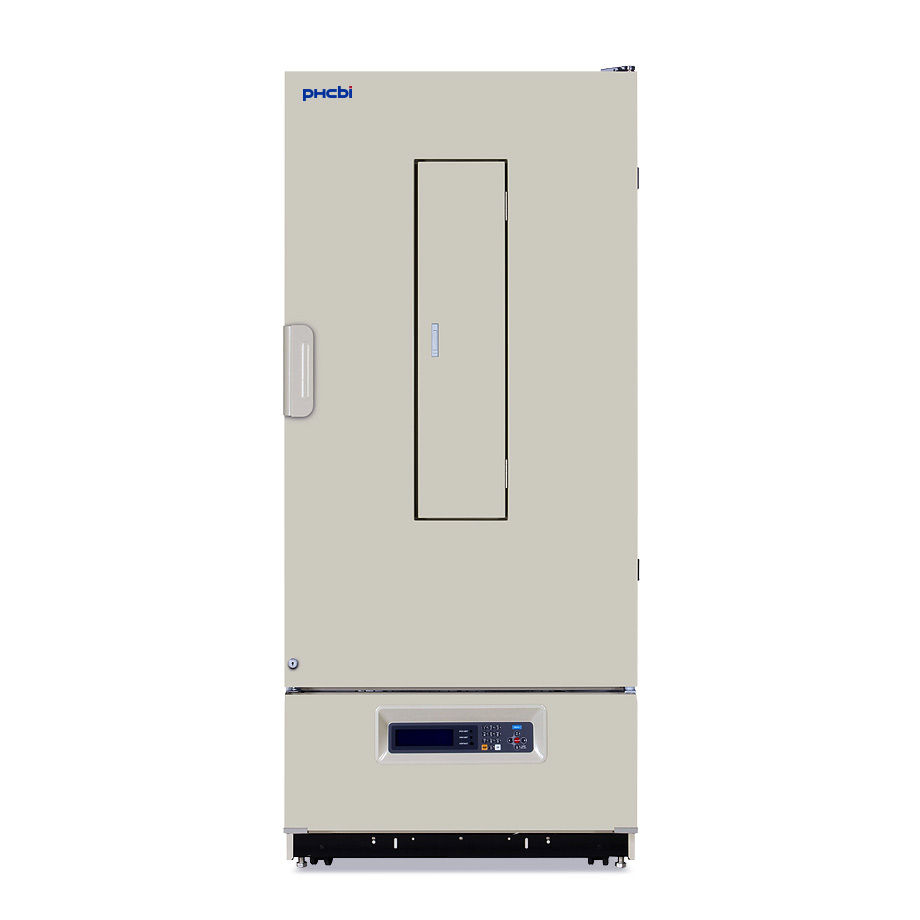

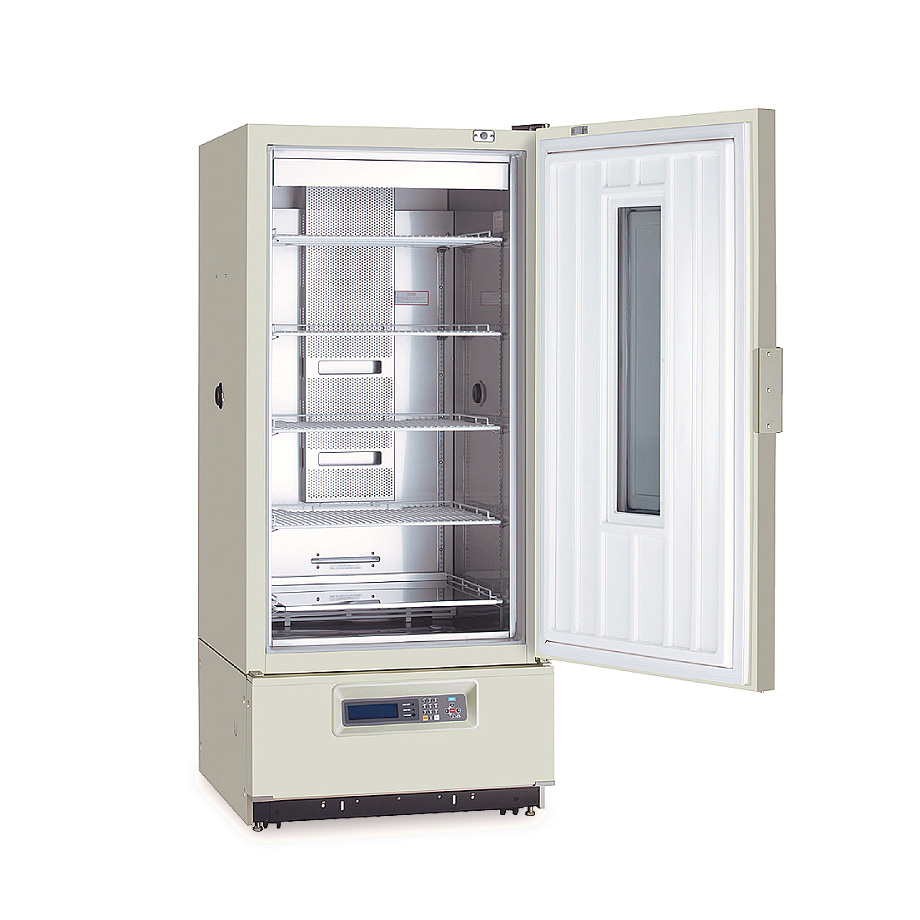

Product Photos

Specifications

EFFECTIVE CAPACITY 14.3 cu.ft. (406 L)
EXTERIOR DIMENSIONS 31.5" W x 32.8" D x 71.3" H (800 x 832 x 1810 mm)
INTERIOR DIMENSIONS 25.2" W x 21.7" D x 45.7" H (640 x 550 x 1160 mm)
DOORS Painted Steel
INSULATION Rigid polyurethane foamed-in-place
SHELVES AND SHELF DIMENSIONS Polyethylene coated steel wire, 5 pcs, adjustable. Dimensions: Upper 4 pcs, 22.8" x 17.3" (580 x 440 mm); Bottom 1 pc, 22.8" x 19.3" (580 x 490 mm); Max load: 110 lbs (50 kg)
AIR CIRCULATION Forced air circulation
ACCESS PORT 2: Left and right side (1.57" [40 mm] diameter)
COMPRESSOR Hermetic reciprocated compressor. Output: 250 W
TEMPERATURE CONTROL RANGE -10ºC to 60ºC (ambient temperature: 5ºC to 35ºC, no load)
TEMPERATURE UNIFORMITY ±0.5ºC (SV:37%, ambient temperature: 20ºC, no load)
ALARMS High/Low temp alarm, independent over-heat/over-cool limiter
NET WEIGHT 430 lbs (195 kg)
ELECTRICAL REQUIREMENTS 290 W, AC 115 V, 60 Hz

Price

MIR-554-PA Price Upon Inquiry. Please contact us.

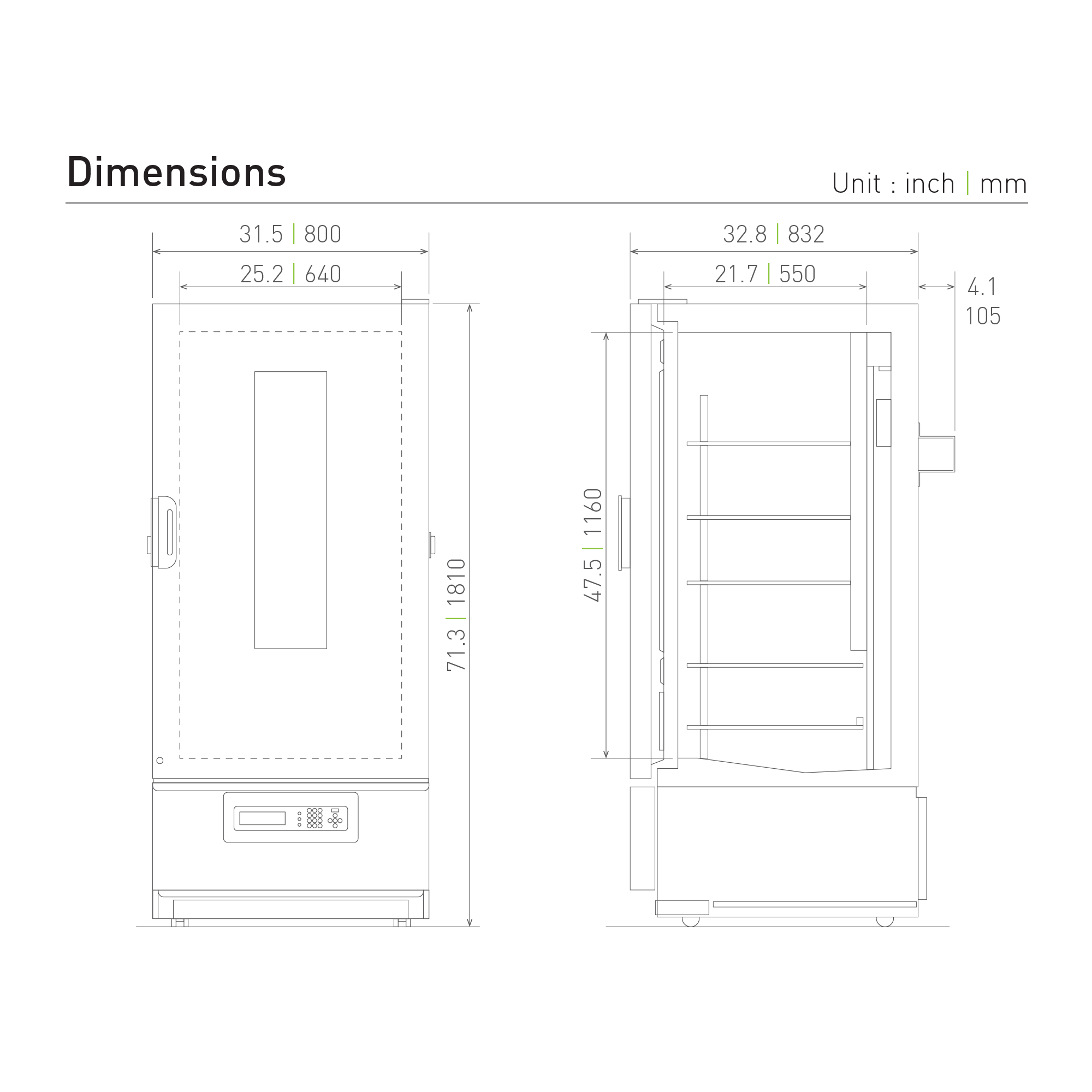

Dimensions
