MIR Series 4.3 cu.ft. Compact Microbiological Incubator

MIR-154-PA

Effective capacity
4.34 cu.ft. (123 L)
Temperature range
-10℃ to +60℃

Model MIR-154-PA Features

Laboratory Incubators Capabilities

PHCbi brand laboratory incubators are designed to ensure highly accurate, reproducible environments that mimic real-world conditions. Our laboratory incubators allow for precise control of temperature, a low humidity setting and lighting protocols - making them ideal for microbiology testing and research, food and cosmetic shelf life testing, and municipal wastewater testing, plant cell culturing and more. Robust cabinet construction with corrosion-resistant stainless-steel surfaces simplify cleaning and eliminate rust due to high humidity in these heated and cooled incubators. PHCbi brand laboratory incubators use SNAP compliant, low flammability refrigerants to assure low environmental impact.

Versatile Applications

The PHCbi compact microbiological incubators offers accurate temperature control and consistent uniformity making them suitable for laboratory culturing, industrial incubation and various testing applications.

Wide Temperature Range

This plant cell biology incubator offers accurate temperature control and uniformity in wide temperature ranges (-10°C up to +60°C) with excellent chamber uniformity. The microprocessor allows for precision temperature control combined with a heater PID and compressor ON-OFF system. With a feed forward function that inputs the operating conditions of the compressor beforehand, the system ensures accurate temperature control for the chamber.

Ergonomic Cabinet Design

The MIR-154-PA features improved usability with a modern design, reversible door, adjustable low vibration and gentle air circulation that reduces media drying.

Microprocessor Controls

The MIR Series compact microbiological incubator has an 8-bit microprocessor controller for heat and refrigeration control +/-2°C. This compact microbiological incubator is completely programmable, allowing for direct numeric input with memory of operation, start dates and hours, clock mode and timer. The LCD control improves user interface for better programming and control.

Memory Backup

Should the power source be interrupted due to power failure or other event, programmed data remains stored in memory semi-permanently. When the power source is restored, operation can be continued according to the predetermined program.

Programmable Operational Functions

Program input is simple and accommodates a range of diversified experimentation requirements. It is ideal for night time or weekend experimentation or experimentation that requires setting changes. It is also ideal for microorganism cultures and preservation.

Overview

MIR Series Plant Cell Biology Incubator

The MIR-154-PA compact microbiological incubator is recognized as an exceptional unit suitable for a wide range of applications that require a temperature range of -10°C to +60°C. Programmable models include three-step functions useful for investigations involving microbiology, plant cell biology and more.

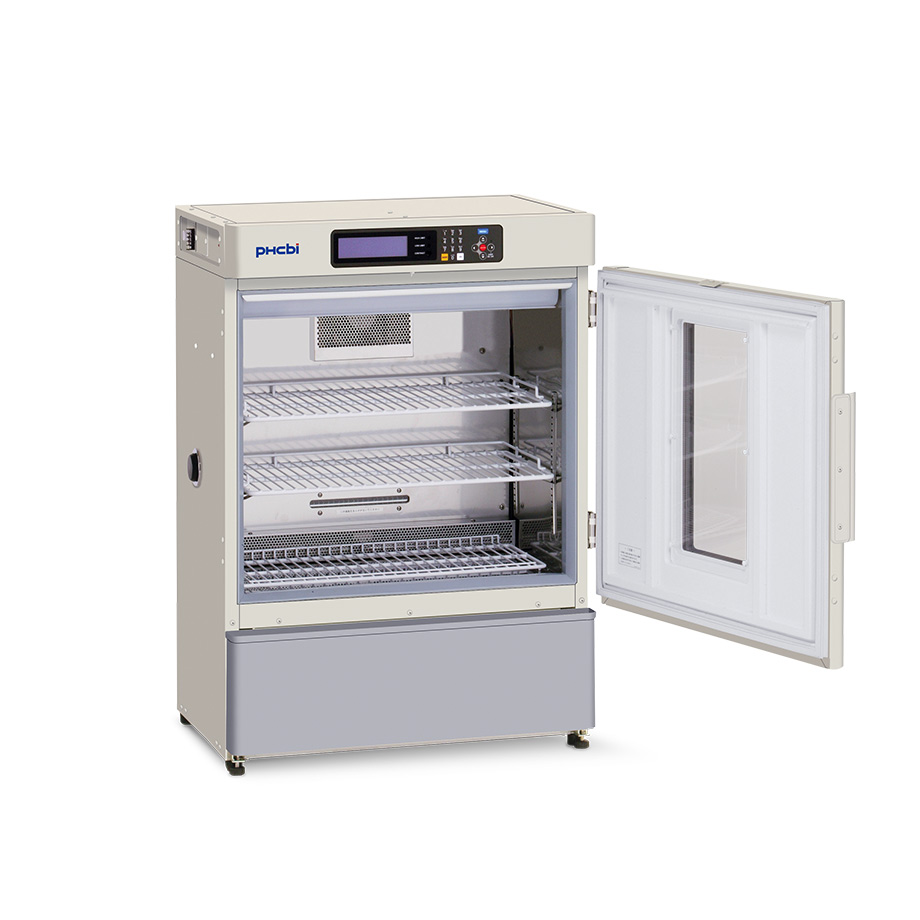

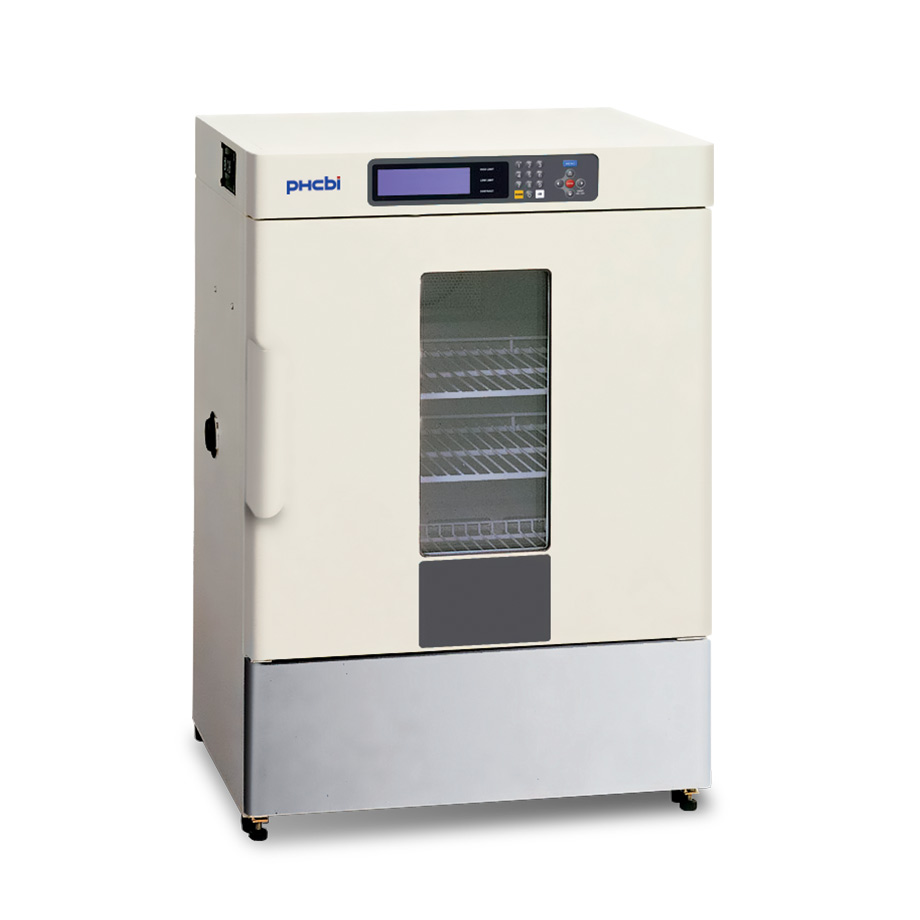

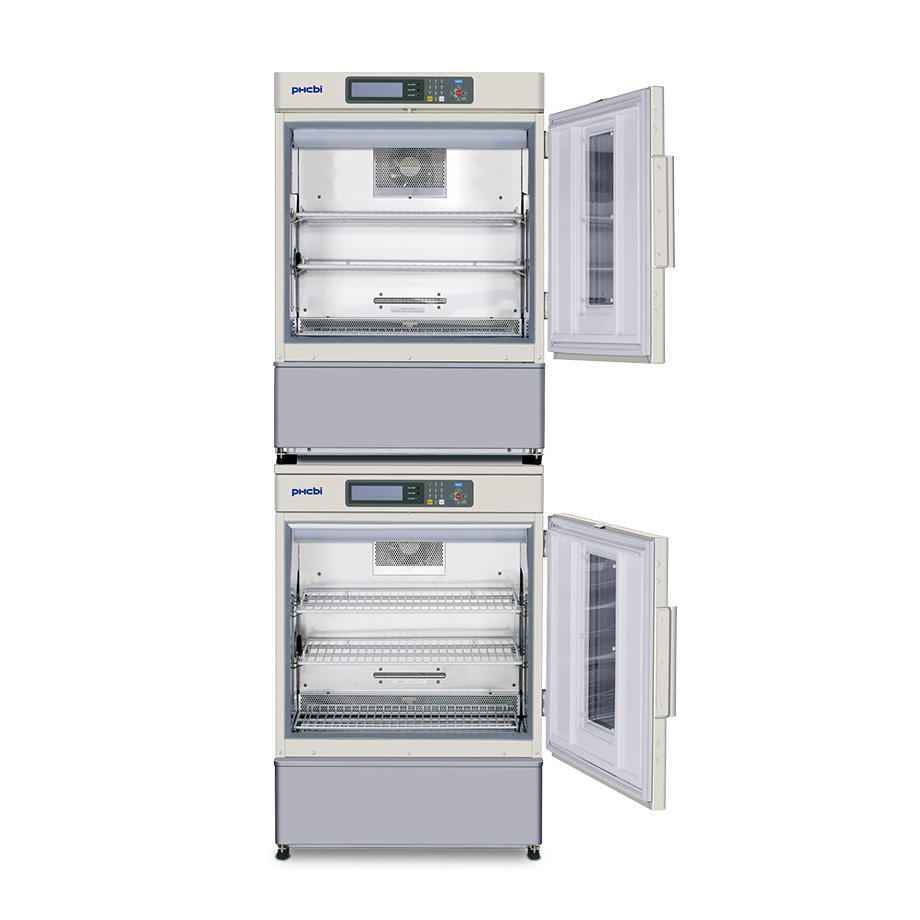

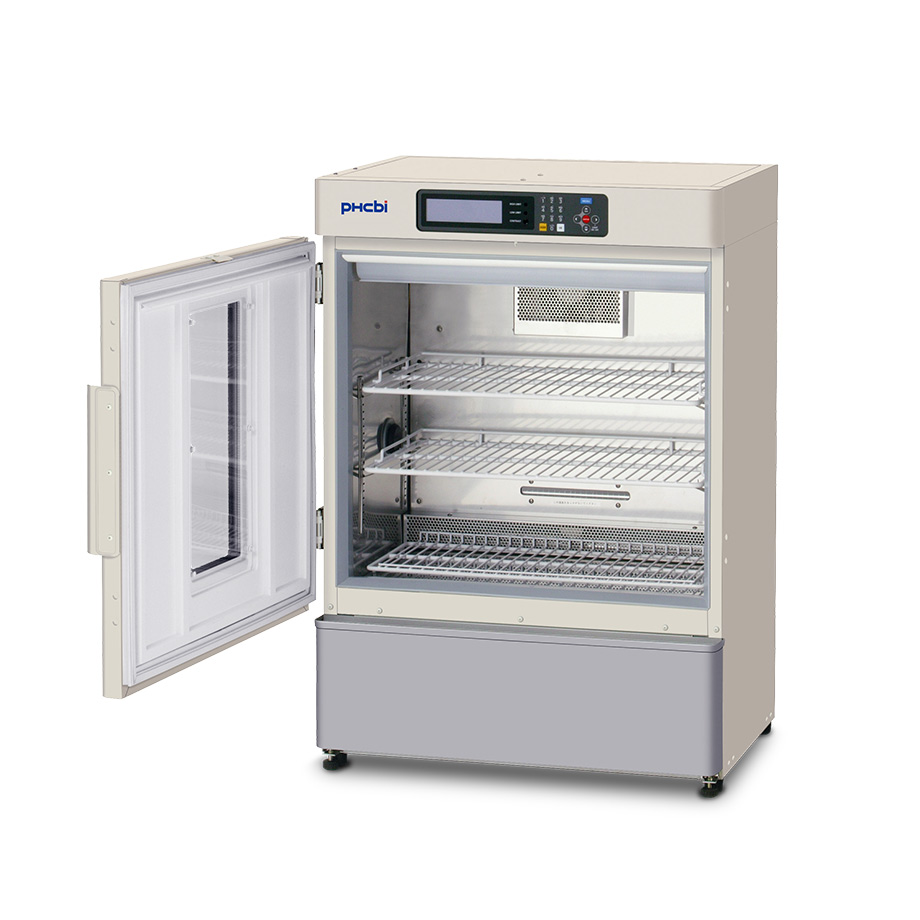

Product Photos

Specifications

EFFECTIVE CAPACITY 4.34 cu.ft. (123 L)
EXTERIOR DIMENSIONS 27.6" W x 22.8" D x 40.1" H (700 x 580 x 1018 mm)
INTERIOR DIMENSIONS 24.4" W x 14.5" D x 21.9" H (620 x 368 x 555 mm)
DOORS Painted Steel
INSULATION Rigid polyurethane foamed-in-place
SHELVES AND SHELF DIMENSIONS Polyethylene coated steel wire, 3 pcs, adjustable. Dimensions: Upper 2 pcs, 22.4" x 11.8" (570 x 300 mm); Bottom 1 pc, 21.7" x 9.25" (550 x 235 mm); Max load: 44 lbs (20 kg)
AIR CIRCULATION Forced air circulation
ACCESS PORT 1: Left side (1.57" (40 mm) diameter)
COMPRESSOR Reciprocated compressor. Output: 150 W
TEMPERATURE CONTROL RANGE -10ºC to 60ºC (ambient temperature: 5ºC to 35ºC, no load)
TEMPERATURE DISPLAY Microprocessor, PID Control (compressor; ON-OFF)
TEMPERATURE UNIFORMITY ±0.5ºC (SV:37%, ambient temperature: 20ºC, no load)
ALARMS High/Low temp alarm, independent over-heat/over-cool limiter
NET WEIGHT 172 lbs (78 kg)
ELECTRICAL REQUIREMENTS 160 W, AC 115 V, 60 Hz
ENERGY CONSUMPTION 200 W

Price

MIR-154-PA Price Upon Inquiry. Please contact us.

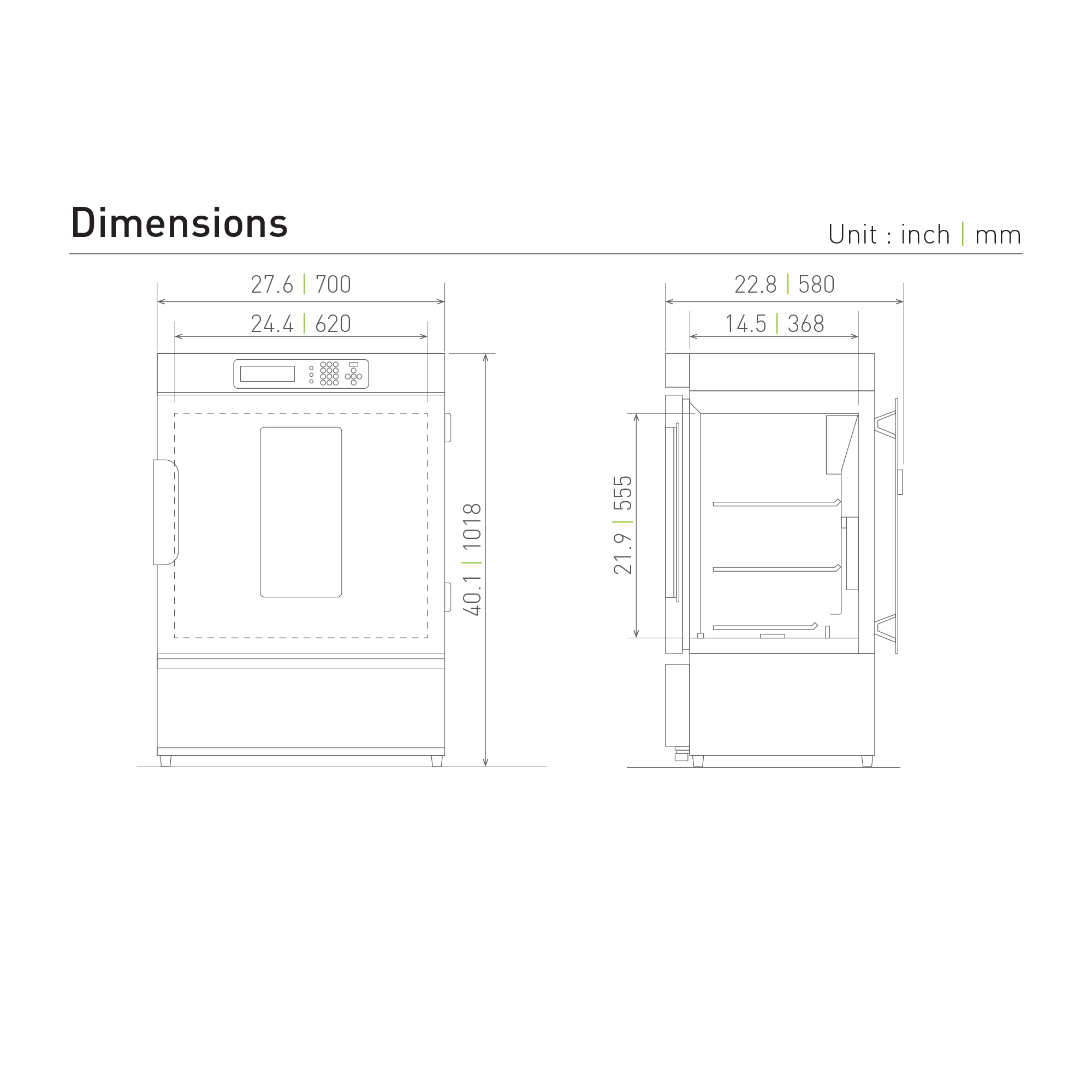

Dimensions

Catalog Download

  • Cooled Incubators MIR-154-PA

    Download
  • Laboratory Incubators and Growth Chambers Series Brochure

    Download
  • Heated and Cooled Incubator Snapshot

    Download
  • Heated and Refrigerated Incubators Warranty Statement

    Download
