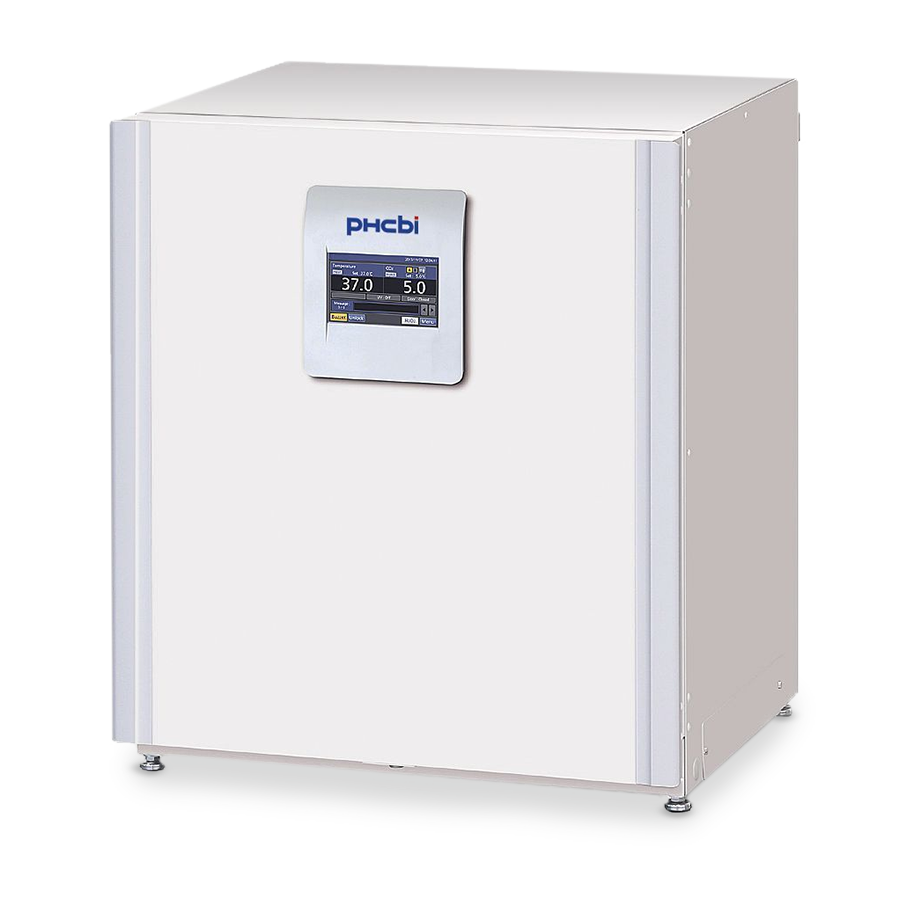

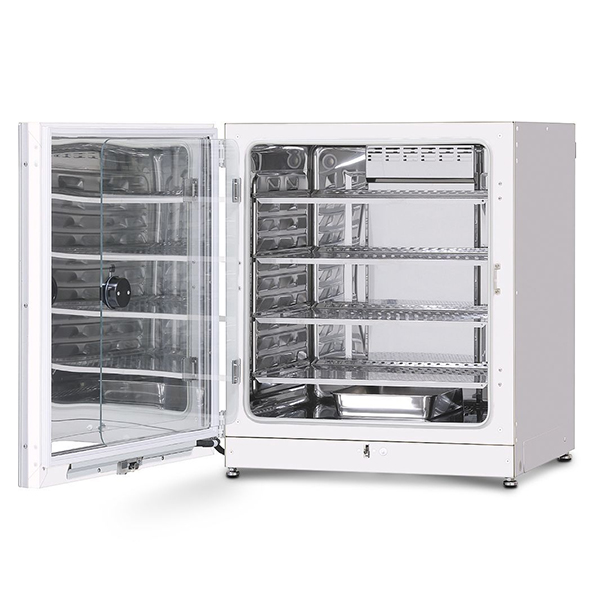

Cell-IQ™ Series 8.1 cu.ft. CO2 Incubator for Cell Culture

MCO-230AICUVLG-PA

Effective capacity
8.1 cu.ft. (230 L)
Temperature range
+5℃ above ambient to +50℃

H2O2

*Optional MCO-170HB/MCO170EL installation required.

MCO-230AICUVLG-PA Features

Cell Culture Incubators Capabilities

As a crucial piece of laboratory equipment, PHCbi brand cell culture incubators are designed to ensure highly accurate, reproducible chamber conditions. Our cell culture incubators provide a contamination-free environment while allowing precise CO2 or CO2/O2 control - essential for in vivo environment replication.

Uniform Consistent Environment

The patented Direct Heat and Air Jacket system, IR2 sensor, SafeCell™ UV and inCu-saFe® work together to ensure precise temperature, CO2 levels and contamination control respectively for a precise and repeatable environment.

Rapid CO2 Recovery with IR2 Sensor

Proprietary IR2 sensor provides superior CO2 control with fast recovery without overshoot even following multiple door openings.

Time Saving Decontamination

An optional high speed decontamination system uses hydrogen peroxide (H2O2) vapor to clean the incubator chamber in under three hours. The system safely and efficiently decontaminates with a 100% kill rate with at least a six log reduction of major contaminants.

Contamination Control with SafeCell UV and InCu-saFe

The PHCbi inCu-saFe combines the germicidal properties of elemental copper with the corrosion and discoloration resistance of stainless steel to deliver passive contamination control throughout the chamber interior. The SafeCell UV lamp provides safe, active and passive contamination control of circulated air and the humidity water reservoir. SafeCell scrubs and decontaminates circulated chamber air without affecting cell cultures in situ.

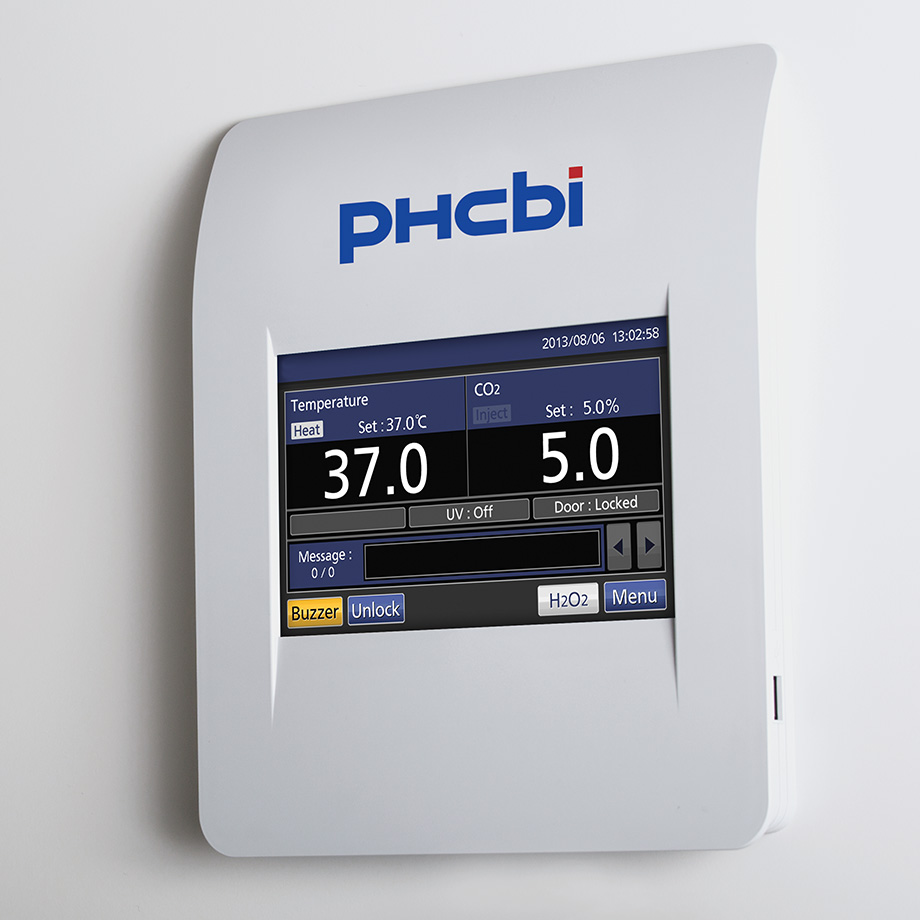

Color LCD Display

The high contrast color LCD display allows for easy, touchscreen programming of temperature, CO2and other internal conditions of your incubator even with gloved hands.

USB Log Function for Data Transfer and Storage

A standard USB port simplifies the storage or transfer of logged data.



Videos



Overview

The Next Generation of Incubator Technology

Enhance the production yield of your cell culture experiments with PHCbi's large capacity CO2 incubator. Part of the Cell-IQ CO2 series, the MCO-230AICUVLG-PA is the ideal high throughput cell culture incubator for culturing or protocols that may require the use of an experimental apparatus.

The MCO-230AICUVLG-PA Cell-IQ™ Series 8.1 cu.ft. CO2 Incubator for Cell Culture contains the patented Direct Heat and Air Jacket system to provide precise temperature and CO2 levels, time-saving decontamination, and an intuitive control panel interface for easy programming.

Request a Quote

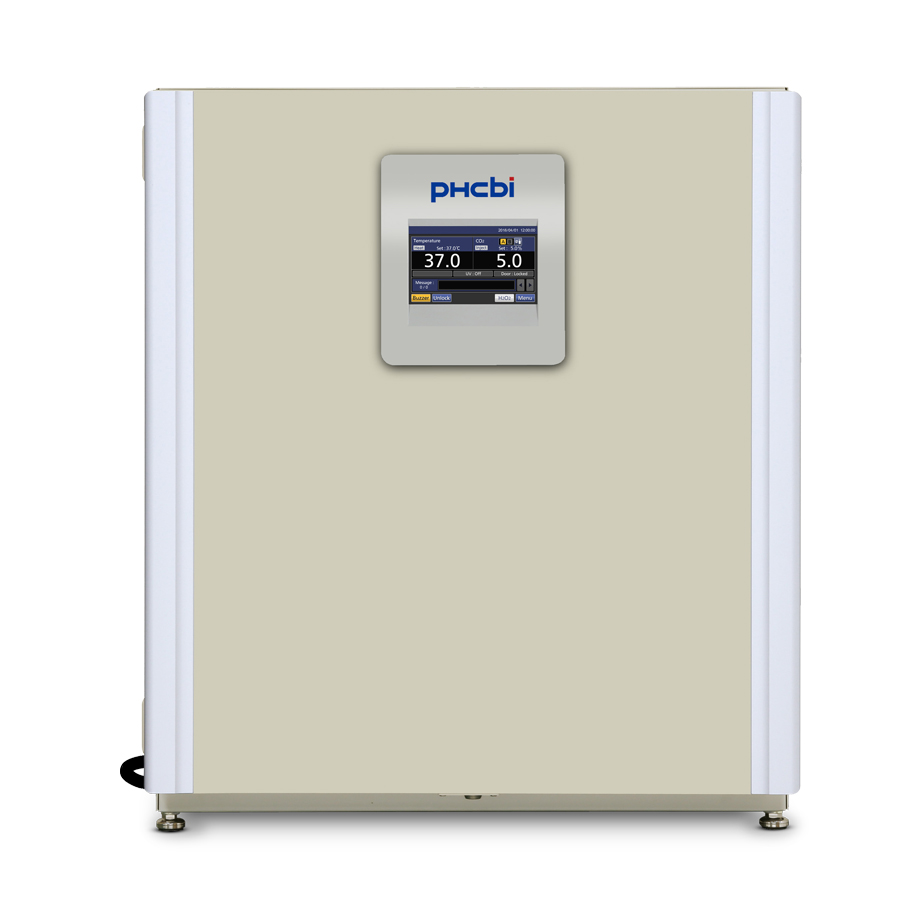

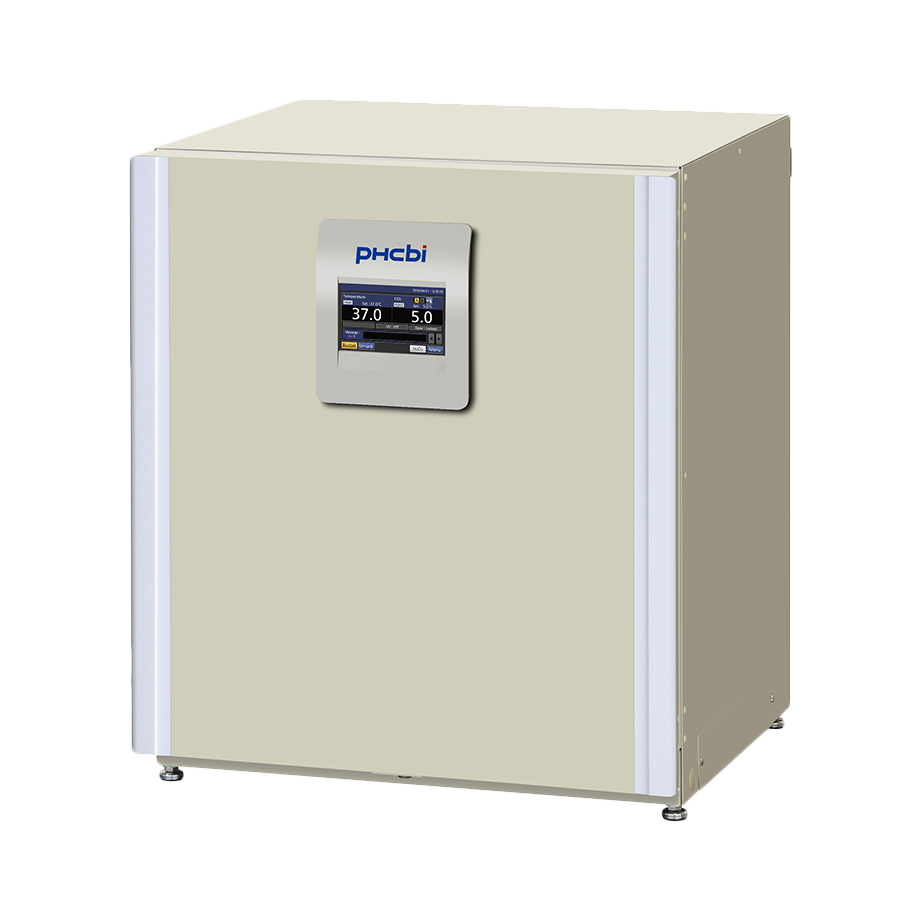

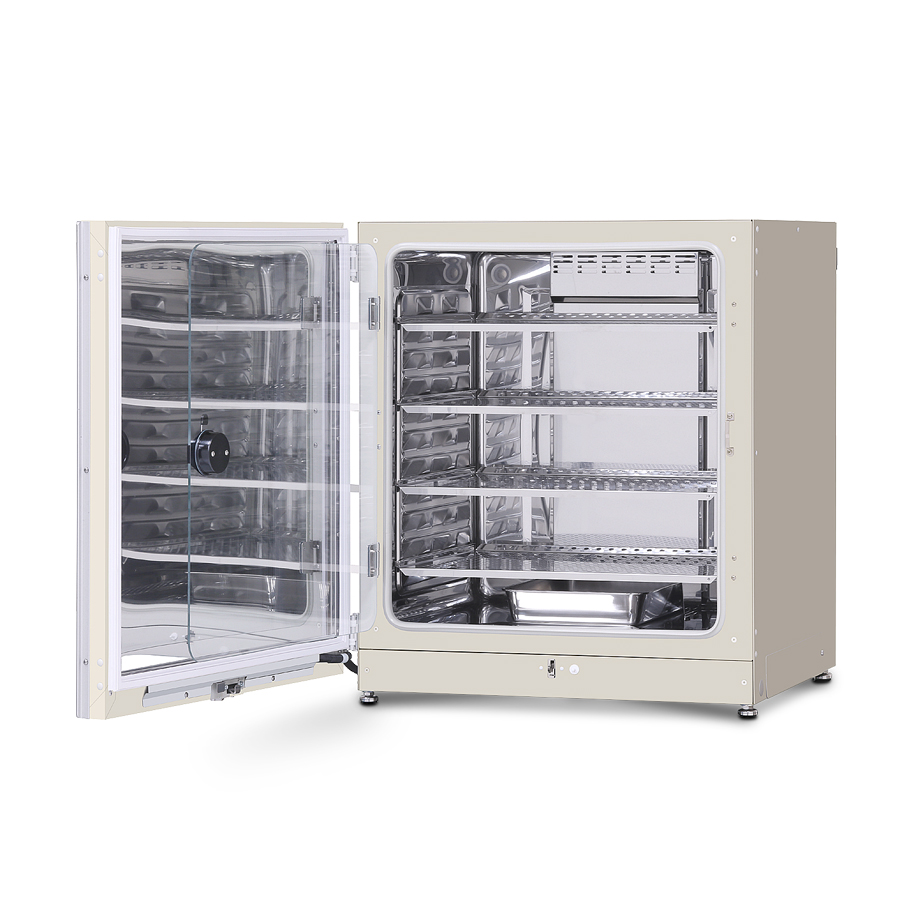

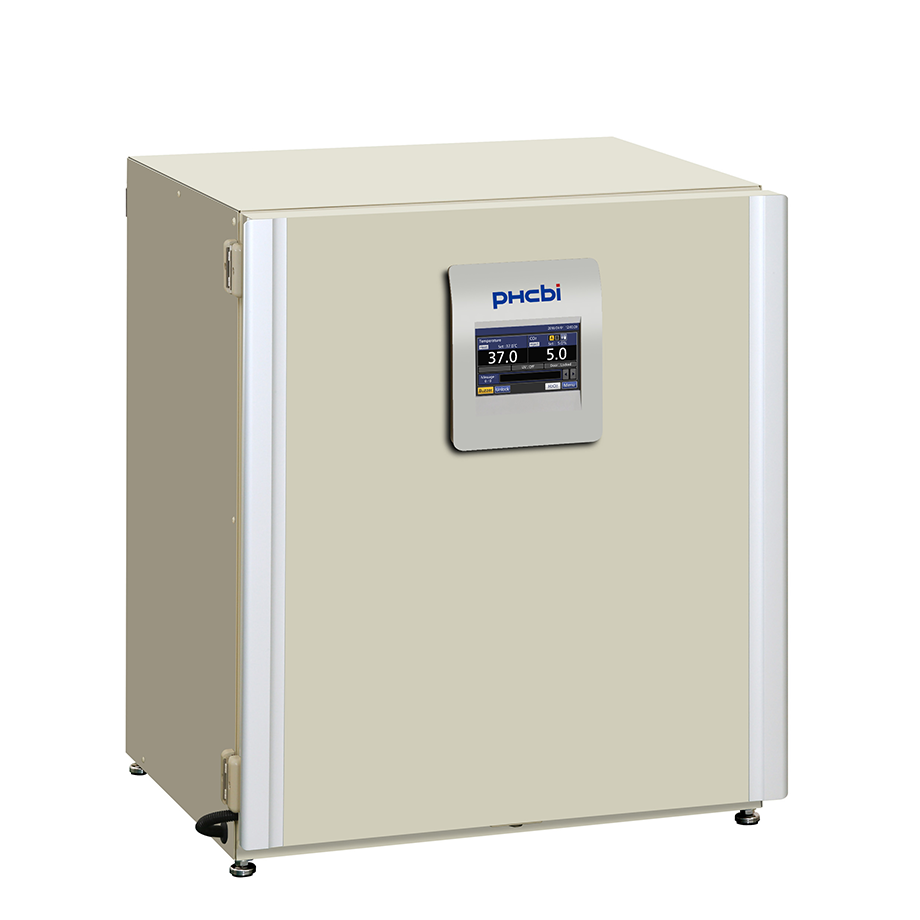

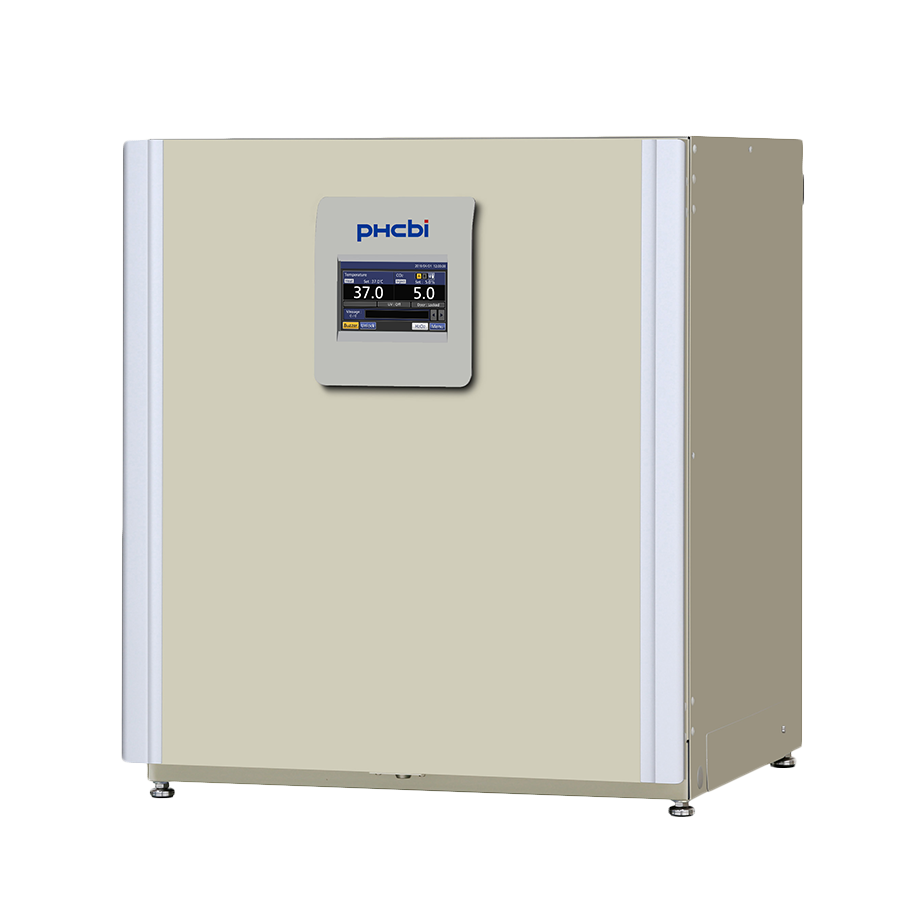

Product Photos

Specifications

EXTERIOR DIMENSIONS 30.3" W x 28.7" D x 35.6" H (770 x 730 x 905 mm)
INTERIOR DIMENSIONS 25.3" W x 20.6" D x 27.6" H (643 x 523 x 700 mm)
INTERIOR VOLUME 8.1 cu.ft. (230 L)
DATA ACQUISITION Optional analog on cloud-based monitoring
OUTER DOOR Painted steel
SHELVES W24.4 inch x D17.7 inch (W620 mm x D450 mm) Maximum load: 15 lbs (7 kg)/tray
ACCESS PORT 1: Back side (1.2" [30 mm] diameter)
HEATING METHOD Direct Heat and Air Jacket System
AIR FILTER 0.3 um, Efficiency: 99.97 % or higher
UV LAMP 4W x 1 (ozone-free emission)
NET WEIGHT 198 lbs (90 kg)
TEMPERATURE CONTROL RANGE Ambient temperature +5ºC to 50ºC
TEMPERATURE UNIFORMITY ±0.25ºC (ambient temperature: 23ºC, setting: 37ºC, CO2: 5 %, no load)
CO2 CONTROL RANGE 0% to 20%
CO2 CONTROLLER PID Control System
CO2 GAS CONNECTION 0.157 inch to 0.36 inch (4 mm to 6 mm) diameter tube can be connected
CO2 VARIATION ±0.15% (ambient temperature: 23ºC, setting: 37ºC, CO2: 5%, no load)
CO2 SENSOR TYPE Dual Infrared Sensor
DATA OUTPUT USB
DECONTAMINATION METHODS Standard 24 hr full chamber UV decontamination
CONTAMINATION CONTROLS InCu-SaFe copper enriched stainless steel interior and shelves, SafeCell UV light
DECONTAMINATION CYCLE TIME 24 hour UV decontamination
DISPLAY Color LCD touchscreen
HUMIDIFYING SYSTEM Natural evaporation with humidifying pan, 95 %R.H.±5 %R.H.
INTERIOR SURFACES InCu-saFe stainless steel with copper enriched alloy

Price

MCO-230AICUVLG-PA Price Upon Inquiry. Please contact your local dealers.

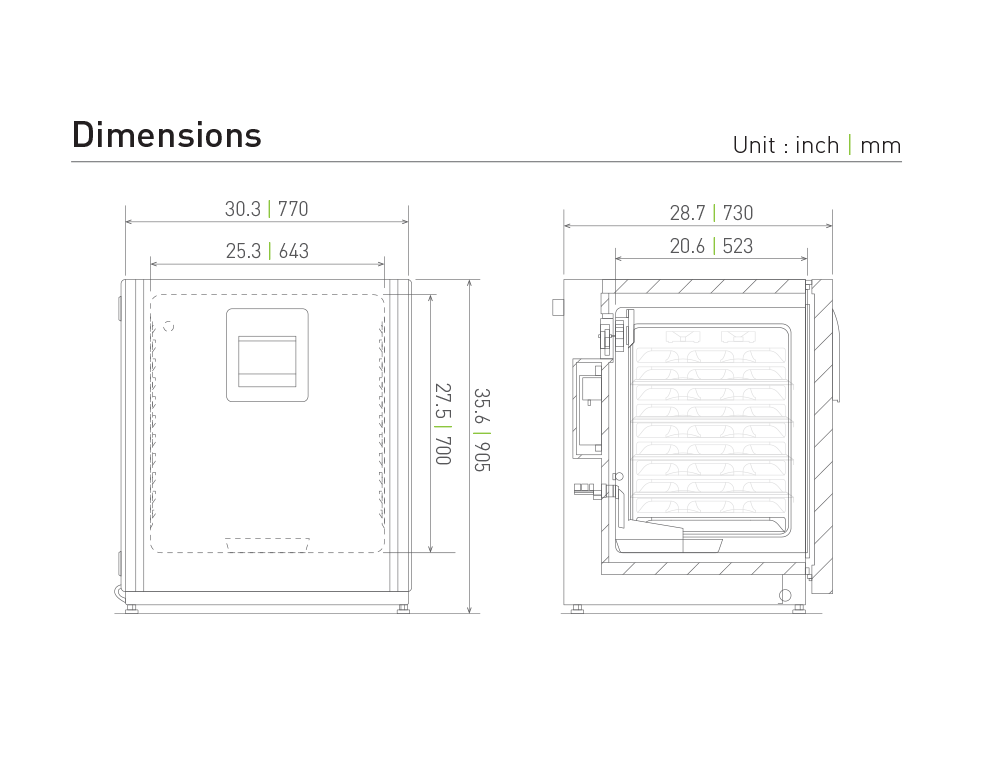

Dimensions
