Incubator Options

Incubations

Gas Related Options

CO2 Gas Tank Switcher

Option model Description Applicable product Photo
MCO-21GC MCO-170AC series, MCO-170AIC series, MCO-170AICD series, MCO-170M series, MCO-230AIC series MCO-21GC

MCO-21GC

MCO-5GC MCO-5AC series, MCO-5M series
MCO-80GC MCO-80IC

STD Gas Auto Calibration Kit

Option model Description Applicable product Photo
MCO-SG MCO-170AIC series, MCO-170AICD series, MCO-170M series, MCO-230AIC series MCO-SGC

Gas Regulator

Option model Description Applicable product Photo
MCO-010R ·Primary side: 0 ~ 25 MPa
·Secondary side: 0 ~ 0.25 MPa
·Maximum primary side gas pressure: 11.8 MPa
·Maximum secondary side gas pressure: 0.10 MPa
·Maximum stream flow: 6 L/min(within 10min) 600 ml/min(within 40min)
except for MCO-80IC MCO-010R

Stacking Kits

Stacking Kits

Option model Description Applicable product Photo
MCO-170SB ·Upper unit:
for MCO-170AC series, MCO-170AIC series, MCO-170AICD series, MCO-170M series
·Lower Unit:
MCO-20AIC series, MCO-19AIC series, MCO-19M series, MCO-18AC series
MCO-170SB
MCO-230SB ·Upper unit:
MCO-170AC series, MCO-170AIC series, MCO-170AICD series, MCO-170M series
·Lower Unit:
MCO-230AIC series

·Upper unit:
MCO-230AIC series
·Lower Unit:
MCO-230AIC series
MCO-230SB
MCO-170PS ·Upper unit:
MCO-170AC series, MCO-170AIC series, MCO-170AICD series, MCO-170M series
·Lower Unit:
MCO-170AC series, MCO-170AIC series, MCO-170AICD series, MCO-170M series
·Upper unit:
MCO-230AIC series
·Lower Unit:
MCO-230AIC series
MCO-170PS
MIR-S154SB ·Upper unit:
MIR-154
·Lower Unit:
MIR-154

Roller Bases

Option model Description Applicable product Photo
MCO-230RB ·External Dimensions (W × D × H):
804 × 674 × 92 mm
MCO-230AIC series MCO-230RB
MCO-170RB ·External Dimensions (W × D × H):
654 × 674 × 92 mm
MCO-170AC series, MCO-170AIC series, MCO-170AICD series, MCO-170M series MCO-170RB
MCO-5RB ·External Dimensions (W × D × H):
570 × 615 × 93 mm
MCO-5AC/MCO-5M series MCO-5RB

Tray

Tray (same as standard accessory)

Option model Description Applicable product Photo
MCO-230ST ·External Dimensions (W × D × H):
628 × 450 × 12 mm
·Max. Load Per Shelf: 7 kg
MCO-230AIC series MCO-230ST
MCO-170ST ·External Dimensions (W × D × H):
475 × 450 × 12 mm
·Max. Load Per Shelf: 7 kg
MCO-170AC series, MCO-170AIC series,MCO-170AICD series, MCO-170M series MCO-170ST
MCO-30ST ·External Dimensions (W × D × H):
310 × 310 × 12 mm
·Max. Load Per Shelf: 4 kg
MCO-5AC/MCO-5M series MCO-30ST

MCO-30ST

MCO-80ST ·External Dimensions (W × D × H):
800 × 680 × 12 mm
·Max. Load Per Shelf: 30 kg
MCO-80IC

Tray (Reinforced Tray)

Option model Description Applicable product Photo
MCO-230RT ·External Dimensions (W × D × H):
628 × 450 × 12 mm
·Material: Stainless Steel Copper-Enriched Alloy
·Max. Load Per Shelf: 30 kg
MCO-230AIC series MCO-230RT
MCO-170RT ·External Dimensions (W × D × H):
475 × 450 × 12 mm
·Material: Stainless Steel Copper-Enriched Alloy
·Max. Load Per Shelf: 30 kg
MCO-170AC series, MCO-170AIC series, MCO-170AICD series, MCO-170M series MCO-170RT

Half tray(Stainless Steel Copper-Enriched Alloy, Set of two)

Option model Description Applicable product Photo
MCO-25ST ·External Dimensions (W × D × H):
208 × 450 × 12 mm
·Material: Stainless Steel Copper-Enriched Alloy
MCO-170AC series,MCO-170AIC series, MCO-170AICD series, MCO-170M series MCO-25ST

MCO-25ST

MCO-35ST ·External Dimensions (W × D × H):
273 × 445 × 15 mm
·Material: Stainless Steel Copper-Enriched Alloy
MCO-230AIC series

Light, UV Light Kit

Light add on kit

Option model Description Applicable product Photo
MIR-L15 MIR-154, MIR-254, MIR-554

UV system set

Option model Description Applicable product Photo
MCO-170UVS MCO-170AC, MCO-170ACL, MCO-170AIC, MCO-170AICL, MCO-170M, MCO-170ML, MCO-230AIC, MCO-230AICL MCO-170UVS

MCO-170UVS

MCO-170UVSD MCO-170AICD series
MCO-19UVS MCO-5AC, MCO-5M
MCO-80UVS MCO-80IC MCO-80UVS

Door

Glass protect plate

Option model Description Applicable product Photo
MIR-154BP MIR-154
MIR-254BP MIR-254

Inner doors

Option model Description Applicable product Photo
MIR-55ID The chamber temperature is limited below +50°C. MIR-554

Small door

Option model Description Applicable product Photo
MCO-170ID MCO-170AC, MCO-170ACL, MCO-170AIC, MCO-170AICL, MCO-170AICUV, MCO-170AICUVL, MCO-170AICUVH, MCO-170AICUVHL MCO-170ID

MCO-170ID

MCO-80ID MCO-80IC

Options for H2O2 Decontamination (Electric Lock MCO-170EL is required)

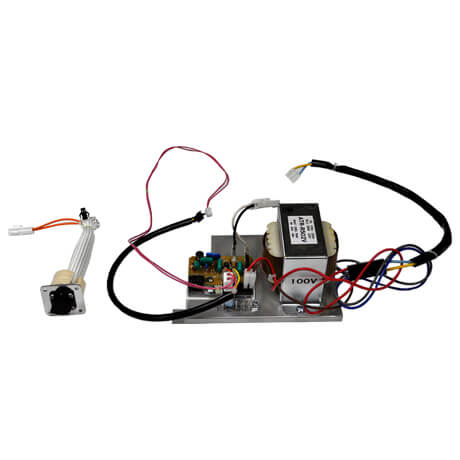

H2O2 decon board

Option model Description Applicable product Photo
MCO-170HB ·Electric Lock MCO-170EL must be also attached in order to change the models to the H2O2 Decontamination version.
·The optional components UV system set, MCO-170UVS, and H2O2 decon board,MCO-170HB must be attached to the unit in order to add the H2O2 decontamination function, except MCO-170AICUVH/MCO-170AICUVHL
MCO-170AICUV, MCO-170AICUVL, MCO-170AIC, MCO-170AICL, MCO-170M, MCO-170ML, MCO-230AICUV, MCO-230AICUVL, MCO-230AIC, MCO-230AICL MCO-170HB

H2O2 generator

Option model Description Applicable product Photo
MCO-HP for H2O2 Decontamination Models of MCO-170AIC series, MCO-170M series, MCO-230AIC series MCO-HP

H2O2 reagent

Option model Description Applicable product Photo
MCO-H2O2 for MCO-HP(The 6 bottles in one package.Keep refrigerated.Expiration date: Described within label. ) H2O2 Decontamination Models of MCO-170AIC series, MCO-170M series, MCO-230AIC series MCO-H2O2

Key

Padlock bracket

Option model Description Applicable product Photo
MIR-LP MIR-154, MIR-254 MIR-LP

Electric Lock

Option model Description Applicable product Photo
MCO-170EL MCO-170AICUV, MCO-170AICUVL, MCO-170AIC, MCO-170AICL, MCO-170M, MCO-170ML, MCO-230AIC, MCO-230AICL, MCO-230AICUV, MCO-230AICUVL MCO-170EL

Other Option

Roller bottle rack mount

Option model Description Applicable product Photo
MCO-80RBS MCO-80IC

Auto water supply system

Option model Description Applicable product Photo
MCO-80AS MCO-80IC

Interface board(4-20 mA Transmitter)

Option model Description Applicable product Photo
MCO-420MA ·Output: 3 Ch for Temperature, CO2 and O2data
·Input Voltage Range: 0-100mV
·Output Current Range: 4-20mA
·Power source: DC 24 V(supplied from a main board via enclosed connecting cable)
(The output of O2 data is only provided with Multigas Incubator.)
MCO-170AC series, MCO-170AIC series, MCO-170AICD series, MCO-170M series, MCO-230AIC series MCO-420MA
