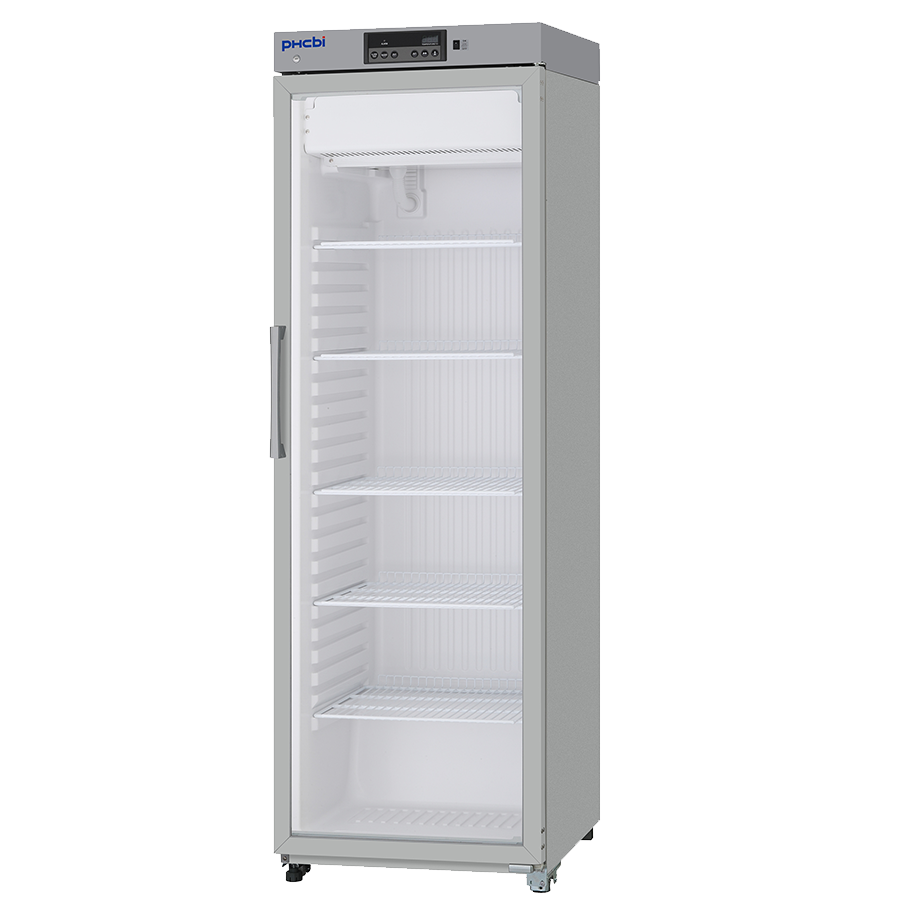

LPR Laboratory Refrigerator

LPR-400-PE

Effective capacity
400L
Temperature range
+4°C to +14°C

Features

The LPR Laboratory Refrigerator is designed for general laboratory storage with user-friendly features

The LPR-400-PE Laboratory Refrigerator is designed for general laboratory storage with user-friendly features. The combination of temperature control accuracy, interior temperature uniformity, quick recovery and resistance to high ambient temperature delivers a quality storage refrigerator that characterizes our commitment to engineering, storage safety and reliability.

Laboratory Refrigerators provide a stable, cold storage for temperature sensitive biosamples, chemicals and other substances that must be kept in an environment of between +4°C to +14°C. They are specially designed with features and options that optimize their use in the laboratory.

As well as accurate and reliable temperature control, laboratory refrigerators must provide exceptional temperature recovery after door opening, monitoring of conditions with alarms, and safe and convenient access through lockable doors and flexible shelving. They must provide convenient access for those authorized to use them, but also features that safeguard against unauthorised access. In addition, all laboratory equipment is increasingly expected to provide a minimal environmental footprint and energy efficiency.

PHCbi is synonymous with quality in all forms of cold storage. Our products are well-established and well-respected products in the world of life sciences and healthcare. And are renowned for their accuracy, reliability, and stability.

Our LPR Laboratory Refrigerators are high-quality products that combine temperature control accuracy, interior temperature uniformity, quick recovery, and resistance to high ambient temperature, as well as user-friendly features.

What makes our LPR Laboratory Refrigerators so accurate?

Forced air circulation technology ensures a uniform temperature throughout the refrigerator’s chamber and fast temperature recovery, even with frequent door opening. A thermistor sensor detects and maintains temperature in the refrigerator chamber at set point.

What makes our LPR Laboratory Refrigerators so convenient?

A microprocessor controller simplifies operation and enables the user to monitor and adjust conditions clearly and easily. The refrigerators feature timer-controlled off-cycle defrosting, which reduces the manual labour and time required to remove frost.

What makes our LPR Laboratory Refrigerators so safe?

Visual and audible alarms alert users if the temperature falls outside the safe range, so prompt action can be taken to protect samples. The door is equipped with a cylinder lock to restrict access.

What makes our LPR Laboratory Refrigerators so easy-to-use?

Our LPR Laboratory Refrigerators feature highly effective user-interfaces, including doors, monitoring systems, and alarms, and clear and specific user protocols. The self-closing double glass door offers better visibility of stored items and provides complete isolation from the outside. A glass door heater prevents condensation occurring without affecting the temperature of the chamber.  The control panel is located above the glass door. An access port in the back allows sensors, probes, and other equipment to be connected.
Flexible shelving options provides easy and adaptable access to samples. There are no special requirements that require consideration before purchasing an LPR Laboratory Refrigerator. Space for the equipment must, of course, be available. Other than that, a normal 230V electrical socket is all that is required to run one.

As well as support during selection and installation, service options from PHC are available with PHCbi Laboratory Refrigerators.

Request a Quote

Product Photos

Specfications

External Dimensions (W x D x H) 610 x 716 x 1886 mm
Internal Dimensions (W x D x H) 516 x 550 x 1467 mm
Volume 400 liter
Net Weight 81 kg
Temperature Setting Range -
Temperature Control Range +4°C to +14°C
Controller Microprocessor, non-volatile memory
Display LED
Temperature Sensor Thermistor
Cooling Method Forced cool air circulation
Defrost Method Timer Cycle defrost
Refrigerant R-134A
Insulation Material Rigid polyurethane foamed-in place
Exterior Material Painted steel
Interior Material Vacuum molding (ABS resin)
Outer Doors 1 (Plastic sash with 2-layer glass window)
Outer Door Lock 1 (Cylinder key lock)
Shelves 5 (polyethylene-coated wire, W500 x D465 mm, adjustable)
Drawers -
Max. Load - Per Shelf/Drawer 30 kg
Max. Load - Total -
Access Port 1
Access Port Position Back
Access Port Diameter 30 mm
Casters 4 (2 levelling feet)
Interior Light -
Power Failure -
High Temperature V-B (V = Visual Alarm, B = Buzzer Alarm)
Low Temperature V-B (V = Visual Alarm, B = Buzzer Alarm)
Door Open -
Power Supply 230 V, 50 Hz
Noise Level 48 dB [A]

Appearance and specifications are subject to change without notice.

1) External dimensions of main cabinet only, excluding external projections - See dimensions drawings on website for full details
2) Air temperature measured at refrigeration compartment Centre with no load and ambient temperature of +10ºC to +35ºC
3) Nominal value - Background noise 20 dB (A)

* Complies with Art. 11, Annex III of F-Gas Regulation (EU) No 517/2014. Contains fluorinated greenhouse gases.

Disclaimer: The LPR-400-PE is only suitable for countries with 230V/50H electrical supply, and not available in the UK, Eurasian Economic Union, and Saudi Arabia.
