PHCbi

VIP ECO ULT Freezers (-86°C)

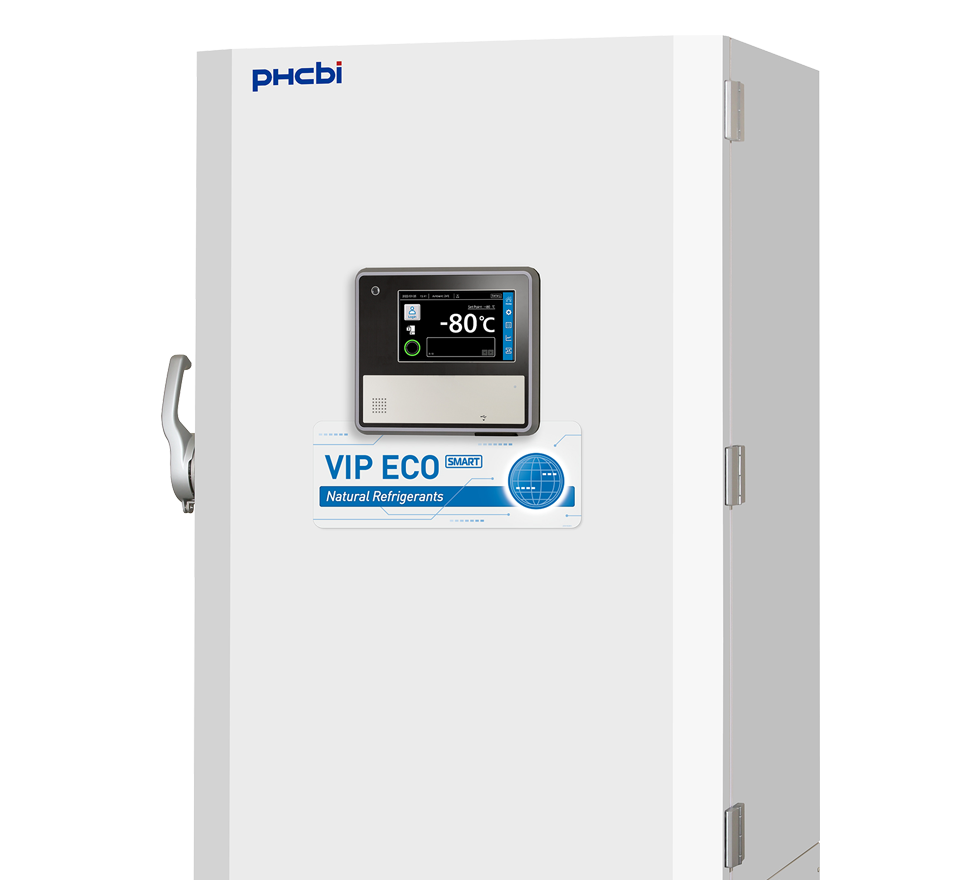

MDF-DU703VH VIP ECO SMART ULT Freezer

Effective capacity
729L
Cooling Performance
-86 to -40℃

Features

Natural refrigerants and inverter technology

Naturally ocurring hydrocarbon (HC) refrigerants have minimal effect on the environment and are compliant with environmental legislation for climate control. Combined with inverter technology, these refrigerants also provide more efficient cooling without compromising cooling performance, ambient tolerance, and recovery speeds following door openings.

Energy efficient performance

Natural refrigerants, compressors and integrated electronics combine to lower operating costs compared to existing models by up to 53%*. Freezer operation is managed by effectively balancing temperature performance and energy management.

New & larger control panel with multiple features

Larger display improves visibility, increasing from 7.0 Inches to10.1 Inches (1.4 times larger in size & 1.6 times higher in resolution), compared to conventional models.

Intelligent interface

The newly designed control panel with rearranged layout and icons greatly enhances usability. The touchscreen method has also changed from the resistive method to the capacitive method, enabling comfortable use even with lab gloves on.

The ergonomic "EZlatch" now coupled
with "Electric Lock"

The ergonomically designed "Ezlatch" door handle, as the name suggests, allows for secure door opening / closing with minimal force.
Newly added “Electric Lock” automatically unlocks/locks the door keys, making access to stored samples much easier.

Various login methods to suit every scenario

1. Password Protection
UP to 100 accounts registrable,
each with individual passwords.

2. Face Recognition
Take a picture of your face and register it.
Once the camera recognizes you, you will automatically be logged in.

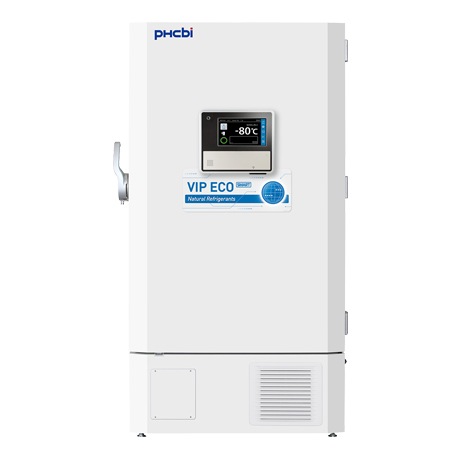

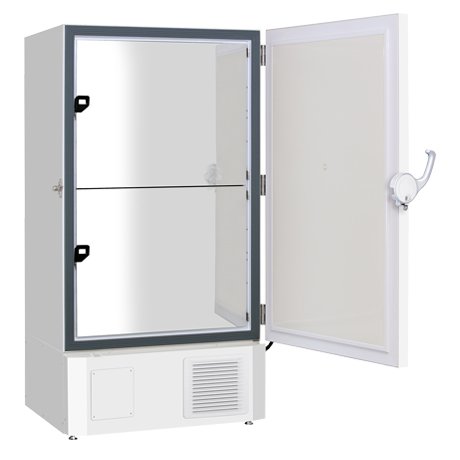

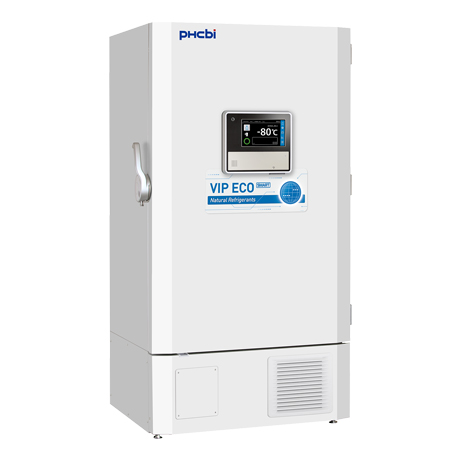

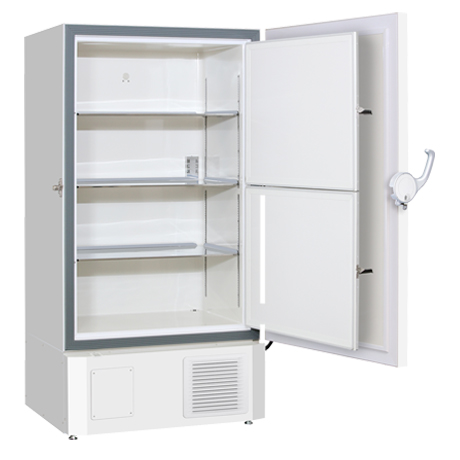

Product Photos

Specifications

External Dimensions (W x D x H) 1030 x 882 x 1993 mm
Internal Dimensions (W x D x H) 870 x 600 x 1400 mm
Volume 729 litres
Net Weight 276 kg
Capacity (2” Boxes in Stainless Steel Racks) 576 (2” boxes)
Capacity (3” Boxes in Stainless Steel Racks) -
Cooling Performance -86 to -40 °C
Temperature Setting Range -90 to -40 °C
Temperature Control Range -86 to -40 °C
Controller Microcomputer control system
Display LCD Digital display
Temperature Sensor Platinum resistance (Pt 1,000 Ω)
Refrigeration System Cascade
Compressors 2 x 750 W
Refrigerant HC
Insulation Material Rigid polyurethane foamed-in place + Vacuum insulation panel
Exterior Material Painted Steel
Interior Material Painted Steel
Outer Doors/Lid 1
Outer Door Lock Y
Inner Doors/Lid 2
Shelves 3
Max. Load - Per Shelf 50 kg
Vacuum Release Port 1 (automatic)
Access Port 3
Access Port Position 3 (back x1, bottom x2)
Access Port Diameter 17
Casters 4 (2 leveling feet)
Power Failure V-B-M-R
High Temperature V-B-M-R
Low Temperature V-B-M-R
Filter V-M
Door Open V-B-M
Power Supply Local
Frequency Local
Noise Level 52 dB [A]

Accessories

Options
Small Inner Door Kit set of 5 MDF-7ID5-PW
Small Inner Door Kit set of 4 MDF-7ID4-PW
Liquid CO2 back-up MDF-UB9-PW
Inventory rack IR-224U-PW, IR-316U-PW
Temperature recorders
- Circular type MTR-G85C-PE/MTR-G85A-PA
- Chart paper: RP-G85-PW
- Ink pen: PG-R-PW
- Continuous strip type MTR-85H-PW
- Chart paper: RP-85-PW
- Ink pen: DF-38FP-PW
- Recorder housing: MDF-S3085-PW
Recorder sensor cover MTR-DU700SF-PW

Price

MDF-DU703VH The price might vary in country. Please send the inquiry form for getting quotation.

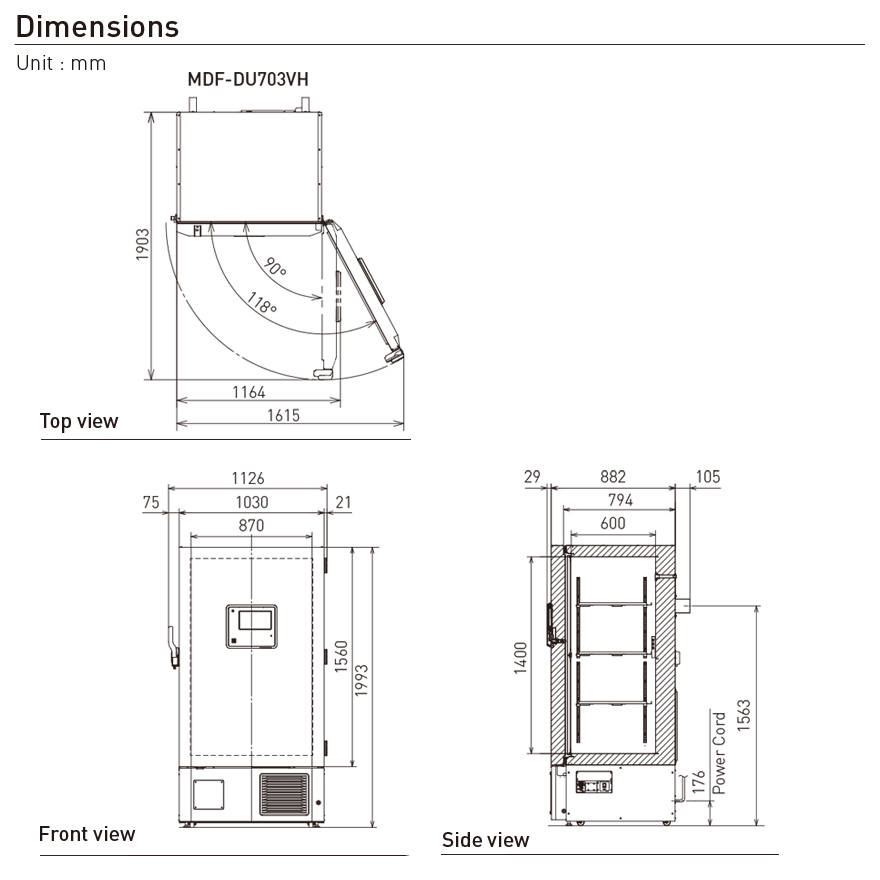

Dimensions
