PHCbi

VIP ECO ULT Freezers (-86°C)

MDF-DC202VH

Effective capacity
84L
Temperature range
-86℃ to -40℃

Features

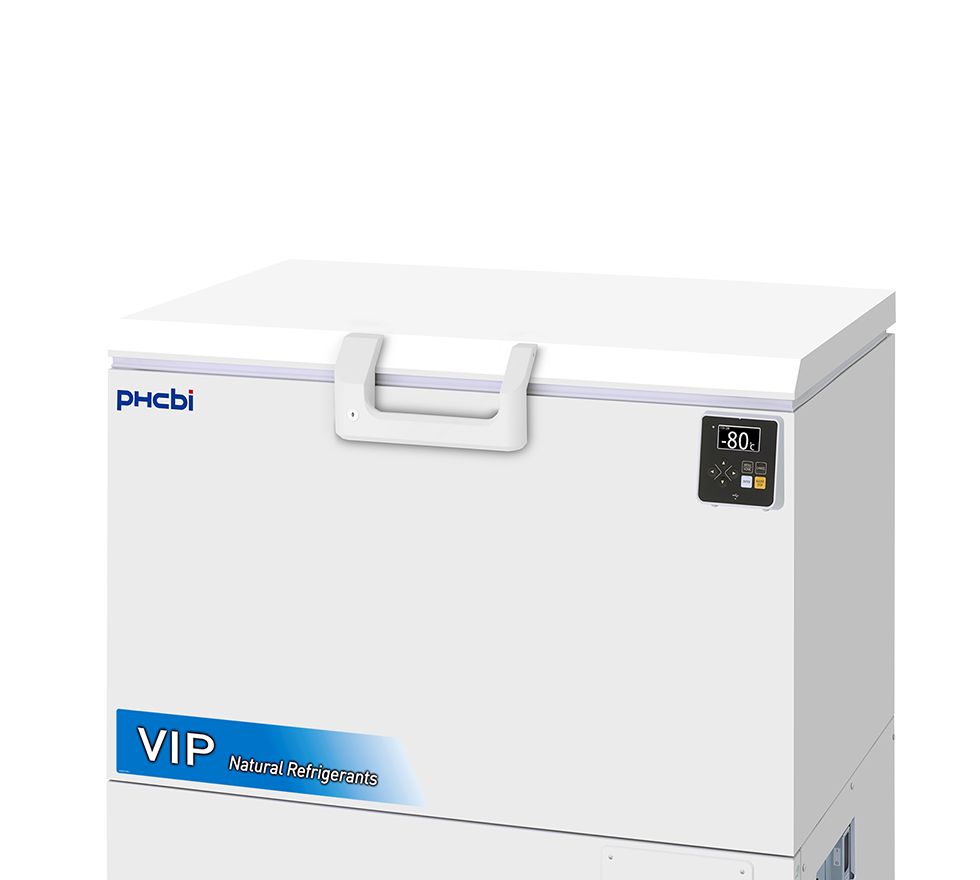

PHCbi’s MDF-DC102VH-PE and MDF-DC202VH-PE VIP ECO Chest Freezers provide maximum sample storage capacity within an optimum footprint combined with industry leading cooling performance and reliability for an ideal long-term preservation solution.

Optimum Sample Storage

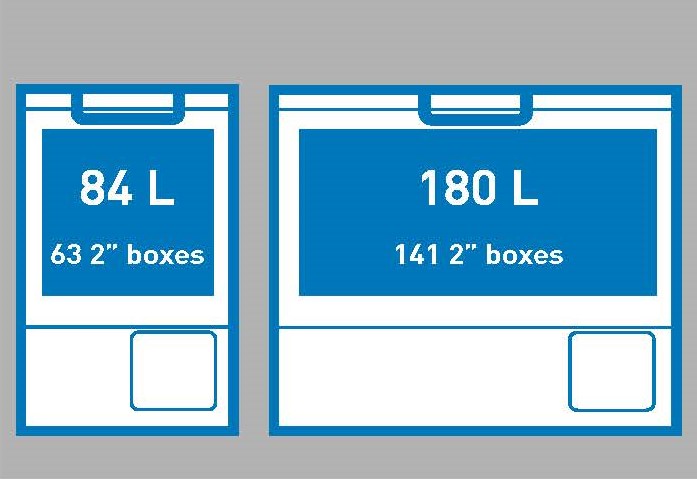

The use of patented VIP PLUS panels within the freezer cabinet provides a reduced wall thickness for maximum interior volume. This technology allows the MDF-DC102VH-PE and MDF-DC202VH-PE to require a small installation space with a great storage capacity.

Efficient Refrigeration

Naturally occurring hydrocarbon (HC) refrigerants provide more efficient cooling due to their high latent heat of evaporation. As well as improved performance this leads to lower GWP.

Ease of Use & Intelligent Security

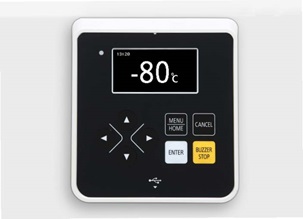

The OLED panel has good visibility and intuitive operation. The USB port and data log functions simplifies temperature data and events management.

Personal Storage

Ideal for reliable storage of small volume clinical trial samples and temperature control testing as well as for a wide variety of other biological applications.

Dependable Preservation

Quality of design and manufacture ensures trusted and reliable storage that maintains the integrity of precious samples.

Uniform Sample Storage

The uniform and stable temperatures provided are ideal for storage of DNA, RNA and other important biological samples.

Product Photos

Specifications

External Dimensions (W x D x H) 1018 x 688 x 993 (mm)
Internal Dimensions (W x D x H) 865 x 490 x 426 (mm)
Volume 180 litres
Net Weight 115 kg
Capacity (2” Boxes in Stainless Steel Racks)
Capacity (3” Boxes in Stainless Steel Racks)
Cooling Performance -86 °C
Temperature Setting Range -40 to -90 °C
Temperature Control Range -40 to -86 °C
Controller Microcomputer control system
Display OLED
Temperature Sensor Pt 1,000 Ω
Refrigeration System
Compressors 550 W
Refrigerant HC mixed refrigerant
Insulation Material PUF / VIP Plus
Exterior Material Painted Steel
Interior Material Painted Steel
Outer Doors/Lid 1
Outer Door Lock Y
Inner Doors/Lid
Shelves
Max. Load - Per Shelf
Vacuum Release Port
Access Port 2
Access Port Position Back/Bottom left front
Access Port Diameter 17
Casters 4 (2 leveling feet)
Power Failure V-B-R
High Temperature V-B-R
Low Temperature V-B-R
Filter Filterless design
Door Open
Power Supply 220/230/240 V
Frequency 50Hz
Noise Level 52dB(A)

*V = Visual Alarm, B = Buzzer Alarm, R = Remote Alarm

Accessories

Options
Liquid CO2 back-up MDF-UB8-PW
Temperature recorders
- Circular type

MTR-G85C-PE

- Chart paper RP-G85-PW
- Ink pen PG-R-PW
- Continuous strip type MTR-85H-PW
- Chart paper RP-85-PW
- Ink pen DF-38FP-PW
- Recorder housing MDF-S3085-PW

Price

MDF-DC202VH The price might vary in country. Please send the inquiry form for getting quotation.

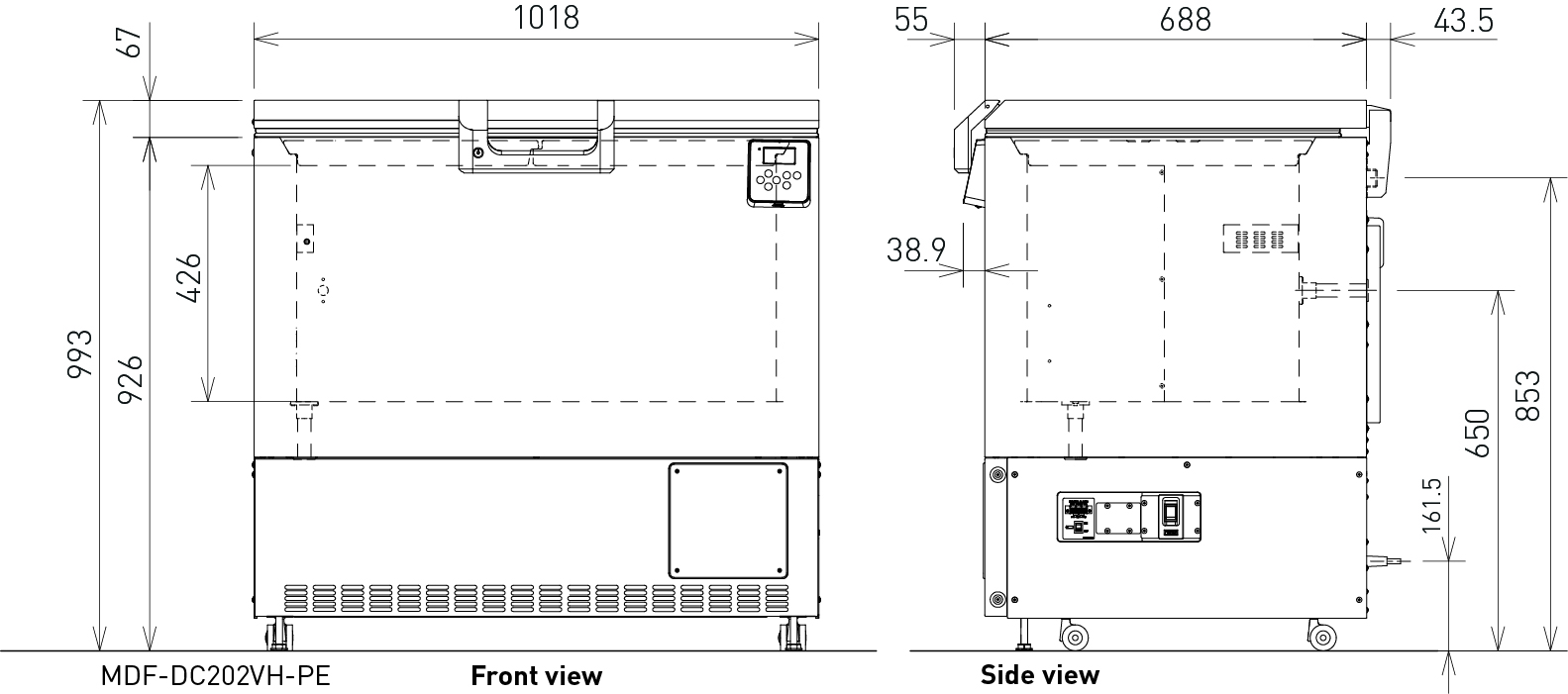

Dimensions

Catalog Download

Options
