TwinGuard ULT Freezers (-86°C)

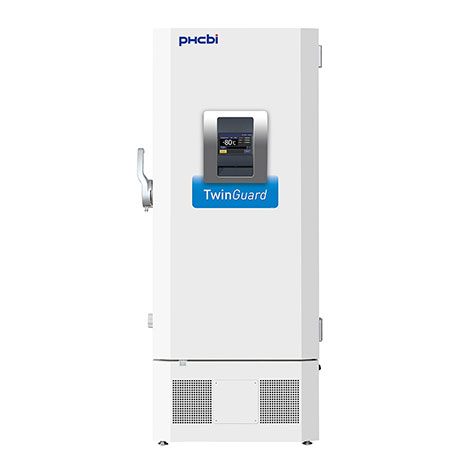

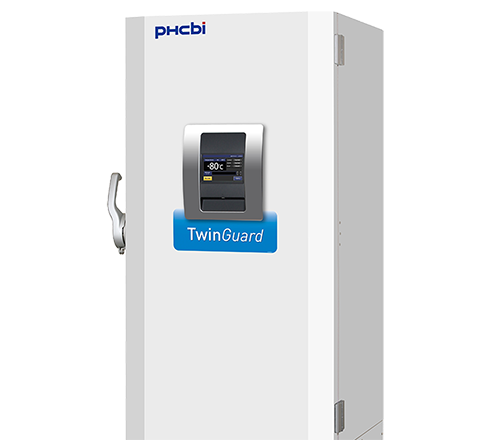

MDF-DU502VX TwinGuard ULT Freezer

Effective capacity
526L
Cooling Performance
-86℃

Features

The secure ultra-low temperature freezers for the storage of high value samples

The TwinGuard MDF-DU502VX -86°C Ultra Low Temperature Freezer satisfies an industry demand for safe, long-term storage for the high-valued materials. Two, independent refrigeration systems, combined with optional liquid CO2 back-up systems, offer a circle of protection unmatched in the marketplace.

With two independent refrigeration systems TwinGuard freezers maintain a reliable and uniform -86ºC ultra low temperature environment. Should one cooling system suffer an unexpected failure, the other circuit will keep irreplaceable samples safely around -70ºC until service can be arranged.

Ultimate Sample Protection

The Dual Cooling System offers the highest level of protection through the use of two independent refrigeration systems. If one system unexpectedly fails the other can maintain the freezer in the -70°C range. Securely store valuable and irreplaceable samples with the upmost confidence that they won’t be lost in the case of compressor failure.

Efficient Sample Storage

The combination of VIP PLUS vacuum insulation and an enhanced cabinet design with insulated outer door, ensures optimum temperature uniformity, while the reduced wall thickness maximizes storage capacity.

Flexible shelf layout

Multiple shelf configurations allow a variety of storage options. Organize your samples by transferring your current inventory racks.

Intelligent Interface

The EZlatch makes access to stored samples even easier. A colour LCD touch panel allows full user control, even with gloved hands, while the USB port makes transferring logged data to a PC convenient. Significantly extended time to react to any sudden mechanical failures and data logging are ideal for high security applications such as pathogenic research.

Benefits

  • Extreme secure Dual Cooling System
  • VIP PLUS insulation
  • Flexible shelf layout
  • Intelligent Interface
  • Innovative Cabinet Design

Features

  • Dual Cooling System
  • EZlatch
  • LCD Touch screen
  • USB port
  • Eco Mode Operation

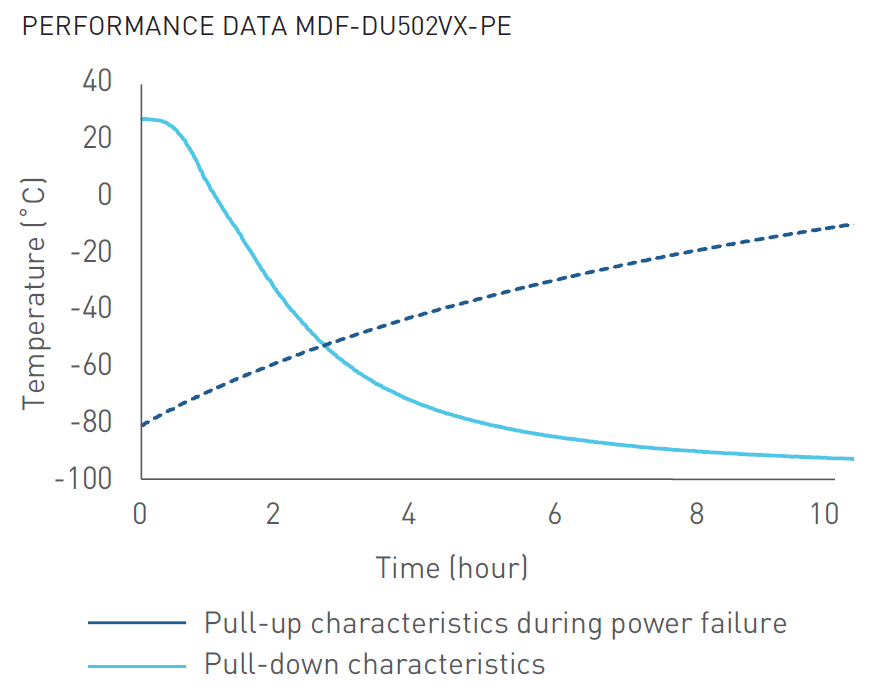

Performance

MDF-DU502VX

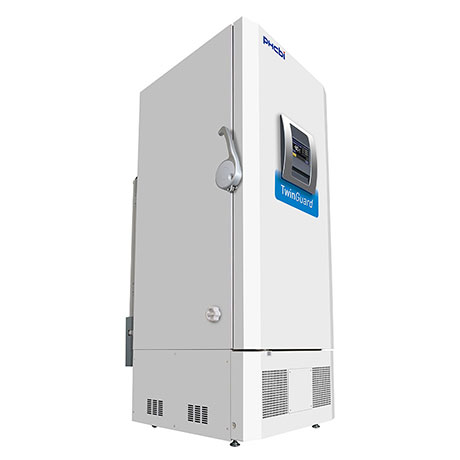

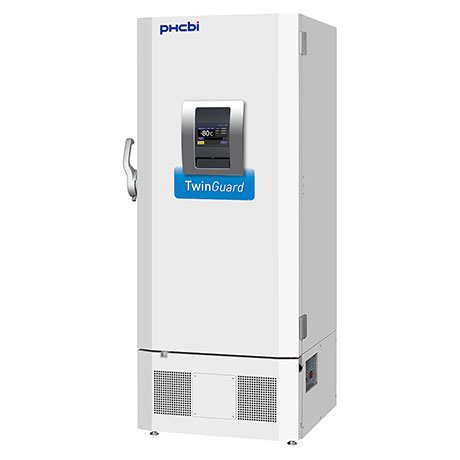

Product Photos

Specifications

External Dimensions (W x D x H) 790 x 882 x 1993 mm
Internal Dimensions (W x D x H) 630 x 600 x 1400 mm
Volume 528 litres
Net Weight 285 kg
Capacity (2” Boxes in Stainless Steel Racks) 384 (2” boxes)
Capacity (3” Boxes in Stainless Steel Racks) -
Cooling Performance -86 °C
Temperature Setting Range -50 to -90 °C
Temperature Control Range -50 to -86 °C
Controller Microprocessor, non-volatile memory
Display LCD Touch Screen
Temperature Sensor Pt-1000
Refrigeration System Independent Dual-Cooling
Compressors 2 x 1100 W
Refrigerant
Insulation Material PUF / VIP Plus
Insulation Thickness 80 mm
Exterior Material Painted Steel
Interior Material Painted Steel
Outer Doors/Lid 1
Outer Door Lock Y
Inner Doors/Lid 2
Shelves
Max. Load - Per Shelf 50 kg
Max. Load - Total 415 kg
Vacuum Release Port 2 (1 automatic, 1 manual)
Access Port 3
Access Port Position back x 1, bottom x 2
Access Port Diameter 17
Casters 4 (2 leveling feet)
Power Failure V-B-R
High Temperature V-B-R
Low Temperature V-B-R
Filter Filterless design
Door Open V-B
Power Supply Local
Frequency Local
Noise Level 52 dB [A]

Price

MDF-DU502VX The price might vary in country. Please send the inquiry form for getting quotation.

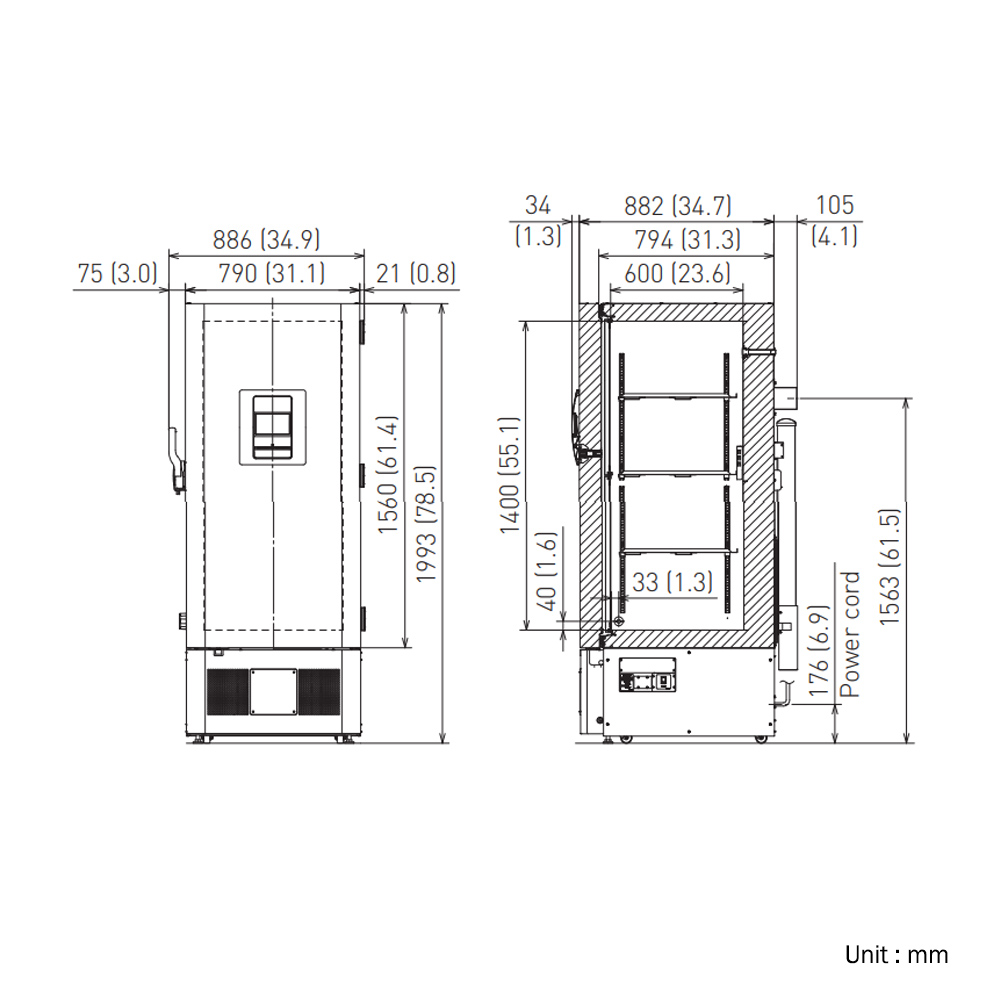

Dimensions

Catalog Download

Options
