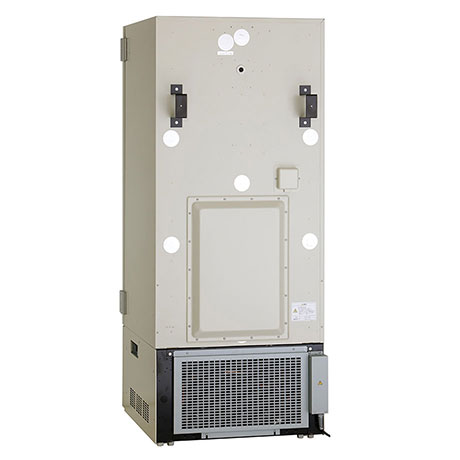

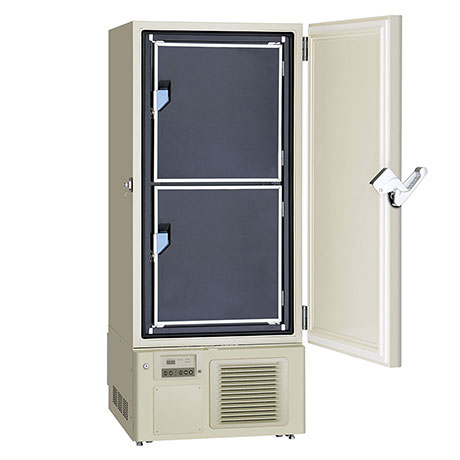

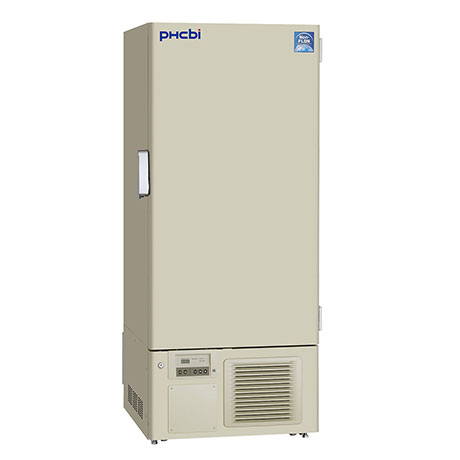

MDF-DU300H ECO ULT Freezer

Cost-saving and environmentally friendly sample storage

The PRO ECO -86°C Ultra-low Freezer, MDF-DU300H (former KM-DU34H1E), is part of our range ECO ultra-low freezers with natural refrigerants. They minimise energy consumption, reduce environmental impact and save money. Innovative technology and Class IIa medical device certification provide secure storage of valuable research and clinical samples.

Performance

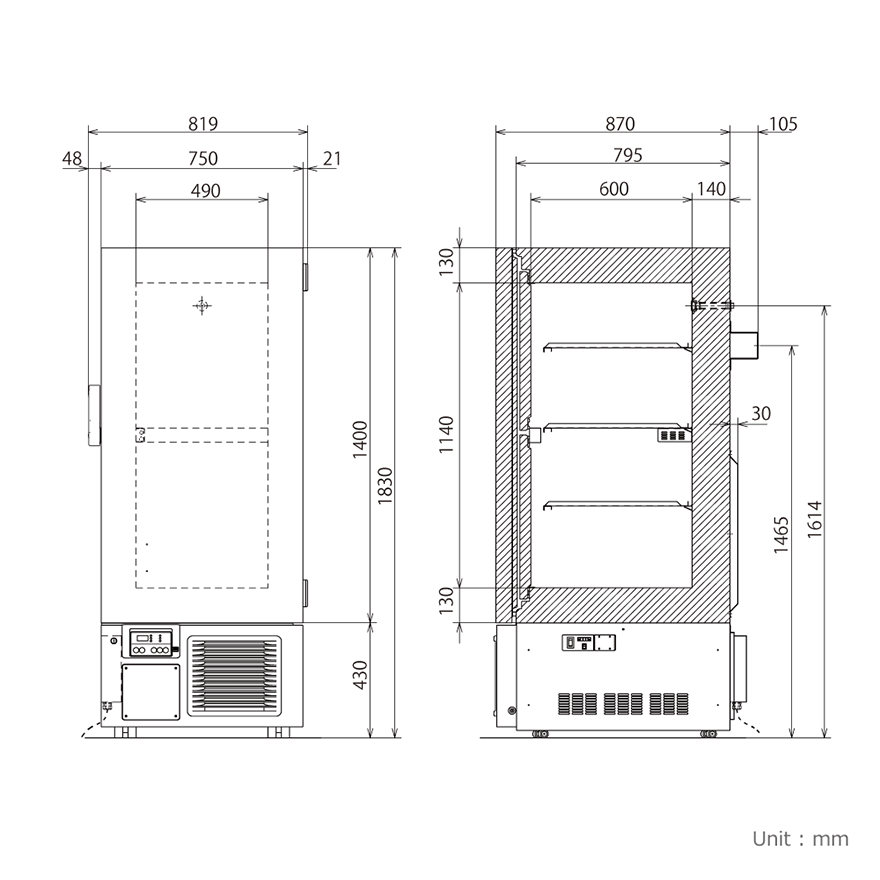

External Dimensions (W x D x H)	750 x 870 x 1830 mm
Internal Dimensions (W x D x H)	490 x 600 x 1140 mm
Volume	333 litres
Net Weight	241 kg
Capacity (2” Boxes in Stainless Steel Racks)	-
Capacity (3” Boxes in Stainless Steel Racks)	-

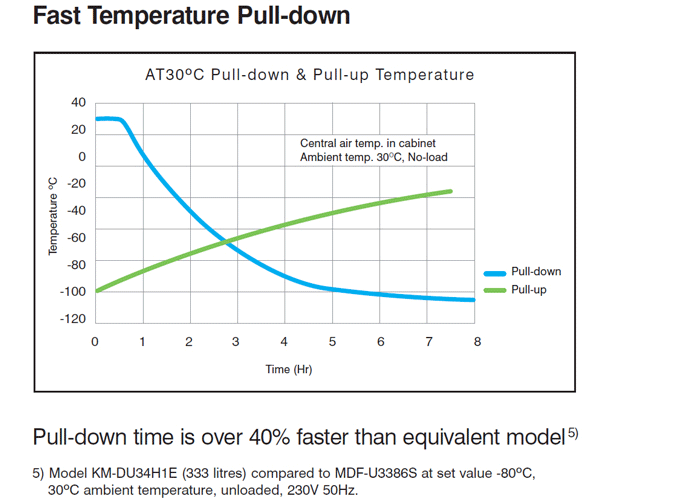

Cooling Performance	-86 °C
Temperature Setting Range	-50 to -90 °C
Temperature Control Range	-50 to -86 °C

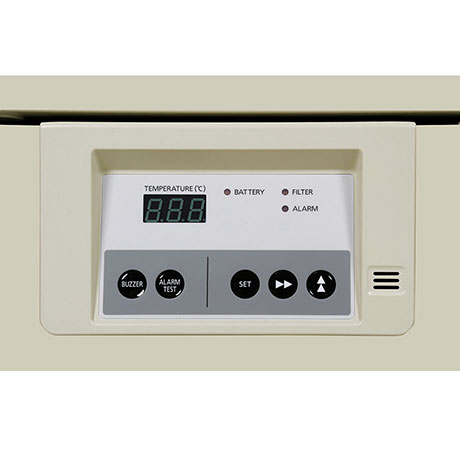

Controller	Microprocessor, non-volatile memory
Display	LED
Temperature Sensor	Pt-1000
Refrigeration System	Cascade
Compressors	450 W
Refrigerant
Insulation Material	PUF
Insulation Thickness	130 mm
Exterior Material	Painted Steel
Interior Material	Painted Steel
Outer Doors/Lid	-
Outer Door Lock	Y

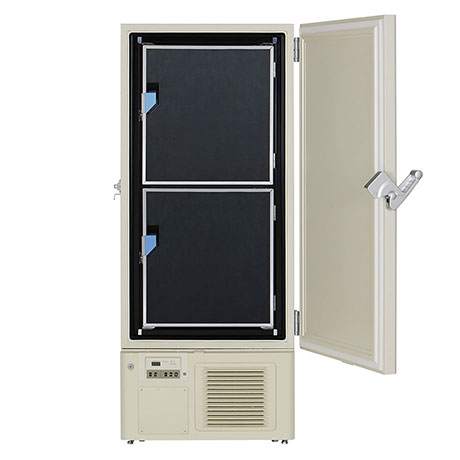

Inner Doors/Lid	-
Shelves
Max. Load - Per Shelf	50 kg
Max. Load - Total	150 kg
Vacuum Release Port	-
Access Port	3
Access Port Position	Back / Bottom x 2
Access Port Diameter	17
Casters	4 (2 leveling feet)
Power Failure	V-B-R
High Temperature	V-B-R
Low Temperature	V-B-R
Filter	V-B
Door Open	-
Power Supply	Local
Frequency	Local
Noise Level	52 dB [A]

Price

MDF-DU300H	Price Upon Inquiry. Please contact your local dealers.
