PHCbi

MPR Sliding Door Pharmaceutical Refrigerators

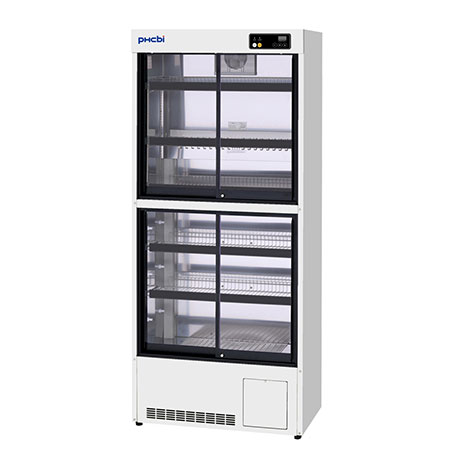

MPR-S313 Pharmaceutical Refrigerator

Effective capacity
340L
Temperature range
2℃ to 14℃

Features

Uniform storage temperature for the most demanding applications

The MPR-S313 (former KM-RS34A1E) Pharmaceutical Refrigerator is compact but has a large capacity for reliable storage of pharmaceutical and medical supplies. The Medi-Cool lineup of medical refrigerators that are equipped with advanced cooling and electronic technology to provide precise temperature for the ideal preservation of medical supplies.

Manufactured and distributed by PHCbi, all our Laboratory Refrigerators / Pharmacy Fridges / Vaccine Fridges / lab fridges are designed to meet the most exacting standards required of a specialist Pharmaceutical Refrigerator. Effective, reliable temperature control, quiet operation, ease of use and ergonomic design are just a few of the features you can expect as standard from a PHCbi Refrigerator.

Environmentally-friendly

CFC-Free

PHCbi refrigerators feature commercially available CFC-free, HFC refrigerants and CFC-free insulation.

RoHS Compliant

On July 1, 2006, the RoHS legislation (EU Directive 2002/95/EU) came into effect. RoHS is the restriction of hazardous substances to reduce the amount of pollution to the environment. Toxic substances in electrical equipment such as lead, cadmium, mercury, chromium 6+, pbb and PBDE, which can do serious harm to the environment, have been banned. The MPR Pharmaceutical Refrigerators are compliant with these regulations.

Benefits

  • Superior cooling performance.
  • Energy efficient.
  • PHCbi refrigerators feature commercially available CFC-free, HFC refrigerants and CFC-free insulation.
  • RoHS Compliant.
  • Uniform Storage Unaffected by Ambient Temperature.
  • Effective Temperature Control.
  • Space Saving Design.

Features

  • Alarm and safety devices
  • Ridged wire shelves with zinc plated finish
  • Microprocessor temperature control
  • Abnormal Temperature Alarm and Safety Devices
  • Fan-forced air circulation
  • Cycle Defrost System

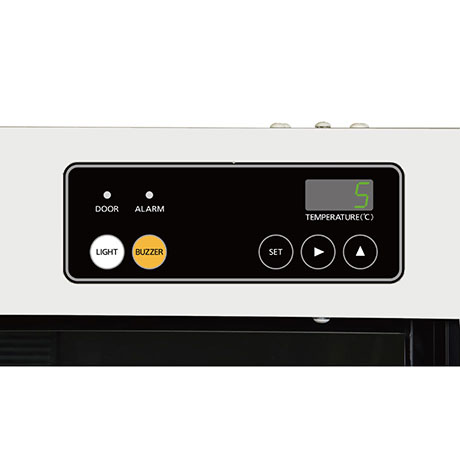

  • Digital Temperature Display
  • Door Open Alarm

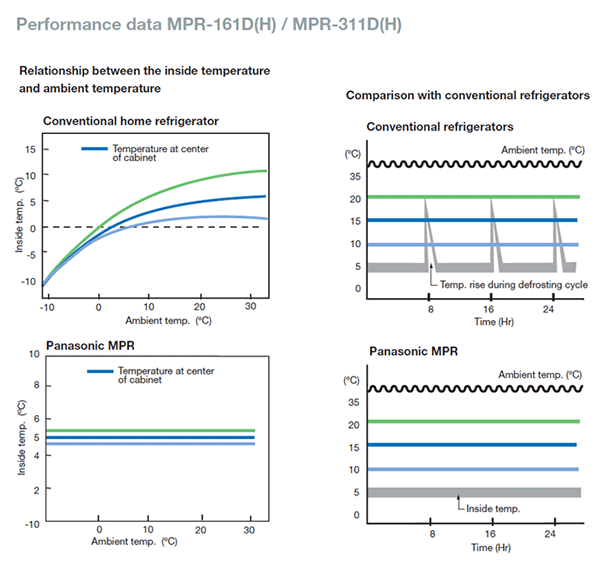

Performance

MPR-S313

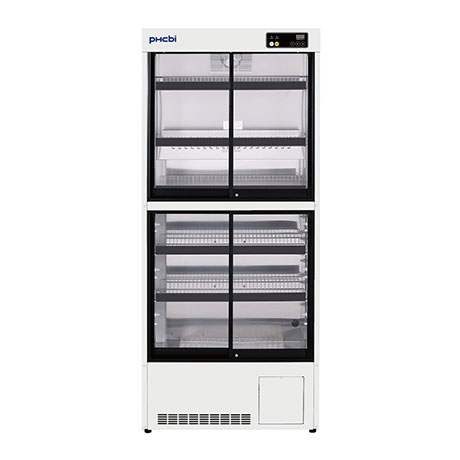

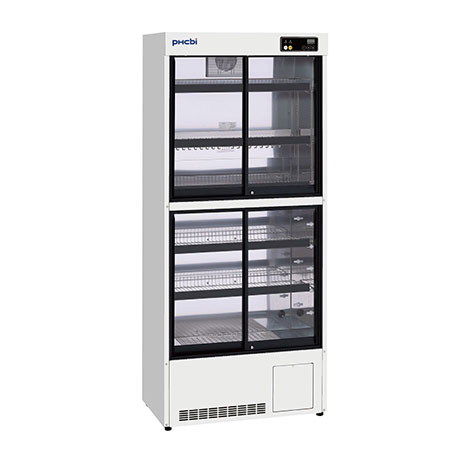

Product Photos

Specifications

External Dimensions (W x D x H) 800 x 465 x 1800 mm
Internal Dimensions (W x D x H) 720 x 350 x 1435 mm
Volume 340 litres
Net Weight 100 kg
Temperature Setting Range +2 to +14 °C
Temperature Control Range +2 to +14 °C
Controller Microprocessor
Display LED
Temperature Sensor Thermistor
Cooling Method Forced air circulation
Defrost Method Cyclical defrost (plus forced defrost)
Refrigerant
Insulation Material PUF
Exterior Material Painted steel
Interior Material Stainless steel
Outer Doors 4 sliding doors
Outer Door Lock Y
Shelves
Drawers
Max. Load - Per Shelf/Drawer 20 kg
Max. Load - Total 100 kg
Access Port 1
Access Port Position Back
Access Port Diameter 30
Casters 2

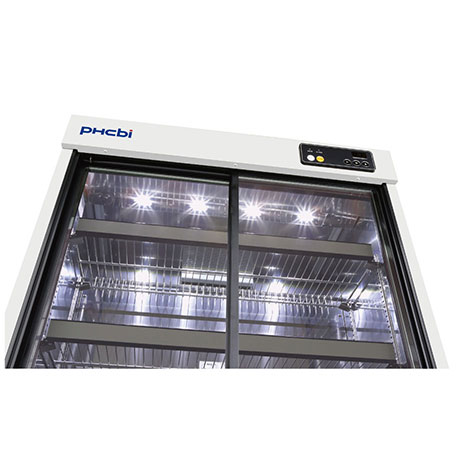

Interior Light LED
Power Failure V-B-R (Optional)
High Temperature V-B-R
Low Temperature V-B-R
Door Open V-B
Power Supply Local
Noise Level 40 dB [A]

Accessories

Temperature recorders
Temperature chart recorder MTR-0621LH-PH
chart paper RP-06-PW

Price

MPR-S313 The price might vary in country. Please send the inquiry form for getting quotation.

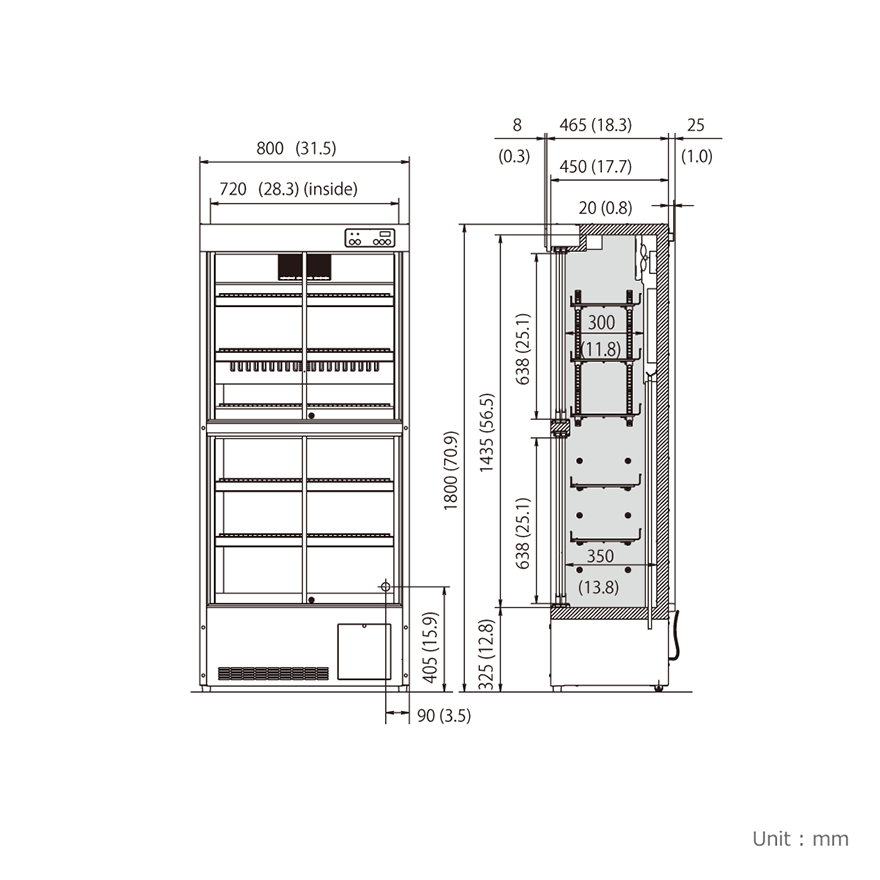

Dimensions

Catalog Download

  • MPR-S313 Product Flyer EN

    Download
  • General Catalog (All PHCbi Products Line-up)

    Download
  • User Manual Download Page

    Go to Download page
  • How to keep Quality of cold of your vaccine, drug or medicine?

    Download
  • Why the Quality of cold matters for Vaccine storage & delivery?

    Download
  • What makes pharmaceutical refrigerators different from consumer refrigerators?

    Download

Options
