PHCbi

(ECO) MPR Sliding Door Pharmaceutical Refrigerators

MPR-S300H ECO Pharmaceutical Refrigerator

Effective capacity
345L
Temperature range
2℃ to 14℃

Features

MPR-S300H Uniform storage temperature for the most demanding applications

MPR-S300H Pharmaceutical Refrigerators offer a complete solution for the most demanding requirements for storage of pharmaceuticals, medicines, vaccines, and other temperature-sensitive applications.

Manufactured and distributed by PHCbi, all our Laboratory Refrigerators / Pharmacy Fridges / Vaccine Fridges / lab fridges are designed to meet the most exacting standards required of a specialist Pharmaceutical Refrigerator. Effective, reliable temperature control, quiet operation, ease of use and ergonomic design are just a few of the features you can expect as standard from a PHCbi Refrigerator.

[ECO model] Natural Hydrocarbon Refrigerants for lower running cost & energy consumption

The new MPR-S300H contains Hydrocarbon [HC] refrigerants have minimal effect on the environment and are compliant with environmental legislation for climate control. Combined with inverter technology, these refrigerants also provide more efficient cooling without compromising cooling performance, ambient tolerance and recovery time following door openings.

Condensation Proof Design

The sliding glass door is meticulously designed to increase energy efficiency and safeguards stored items against heat transfer through the window. The thermal glass door is constructed from a double glass pane where argon gas is used to fill the 12 mm gap. Together with the air vents near the sliding glass door rail, it prevents the formation of moisture.
Pharmacy Vaccine Fridge MPR-S150H | PHCbi

LED flour lamp inside the Vaccine Fridge

The LED interior light automatically turns on/off in conjunction with the door opening/closing. It can also be controlled from the control panel.


Pharmacy Vaccine Fridge MPR-S150H | PHCbi

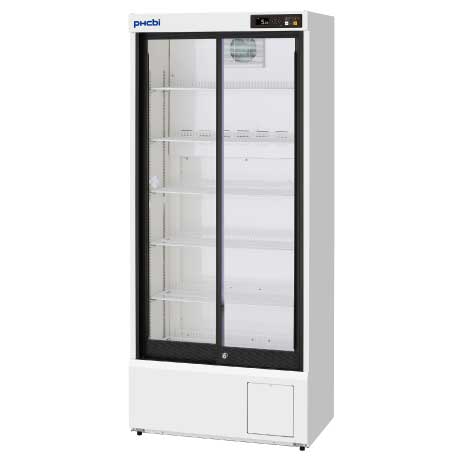

Product Photos

Specifications

External Dimensions (W x D x H) 800 x 500 x 1820 mm
Internal Dimensions (W x D x H) 720 x 360 x 1425 mm
Volume 345 litres
Net Weight 105 kg (MPR-S300H-PE) /104 kg (MPR-S300H-PA)
Temperature Setting Range +2 to +14 °C
Temperature Control Range +2 to +14 °C
Controller Microprocessor
Display Digital (White graphic OLED), 1°C (increment of 0.1)
Temperature Sensor Thermistor
Cooling Method Forced air circulation
Defrost Method Cyclical defrost (plus forced defrost)
Refrigerant HC refrigerant
Insulation Material PUF (Rigid polyurethane foamed insulation)
Exterior Material Painted steel
Interior Material Painted steel
Outer Doors 2 (Highly insulated double glass door with tempered glass)
Outer Door Lock Y
Shelves 6 coated steel wires
Drawers Optional sliding racks (see below option of product page)
Max. Load - Per Shelf/Drawer 20 kg
Max. Load - Total 120 kg
Access Port 1
Access Port Position Back
Access Port Diameter 30 mm
Casters 4 [2 levelling feet]
Interior Light LED
Power Failure V-B-M-R (Optional MPR-48B2-PW required) [V = Visual Alarm, B = Buzzer Alarm, M = Message, R = Remote Alarm]
High Temperature V-B-M-R [V = Visual Alarm, B = Buzzer Alarm, M = Message, R = Remote Alarm]
Low Temperature V-B-M-R [V = Visual Alarm, B = Buzzer Alarm, M = Message, R = Remote Alarm]
Door Open V-B-M [V = Visual Alarm, B = Buzzer Alarm, M = Message]
Power Supply -PE: 220, 230, 240V/50Hz, -PA: 115V/60Hz
Noise Level 38 dB [A]

Options

Circular type temperature recorder MTR-G04C-PE / MTR-G04A-PA
Continuous strip type temperature recorder MTR-0621LH-PE / MTR-0621LH-PA
Temp. recorder housing MPR-S7-PW (for MTR-G04C series)
MPR-S30-PW (for MTR-0621LH series)
Temp. recorder Chart paper RP-G04-PW (for MTR-G04C series)
RP-06-PW (for MTR-0621LH series)
Ink pen for Circular type temp. recorder PG-R-PW
Battery kit for power failure alarm MPR-48B2-PW
Shelves & Sliding racks MPR-31RR-PW (for lower right side)
MPR-31LR-PW (for lower left side)*
*Must be used in combination with MPR-31RR.
Communications interface MTR-480-PW, MTR-L03-PW
 (only for MTR-5000 user only)

Price

MPR-S300H The price might vary in country. Please send the inquiry form for getting quotation.

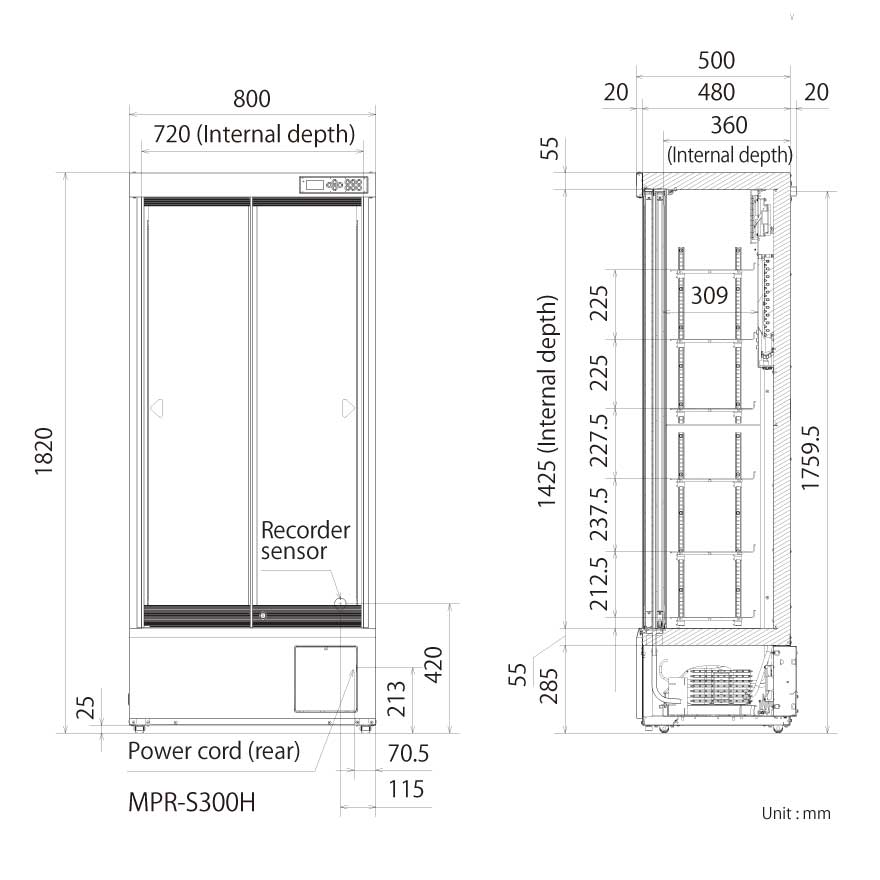

Dimensions
