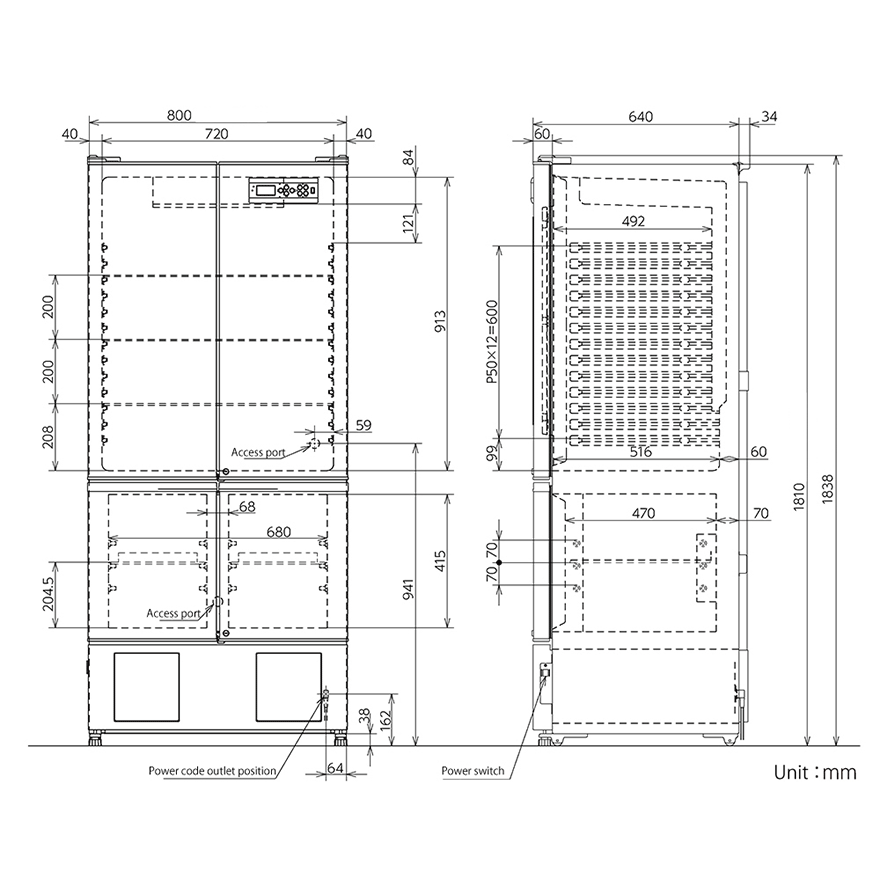

External Dimensions (W x D x H)
|
800 x 640 x 1810 mm
|
|
Internal Dimensions (W x D x H)
|
720 x 516 x 913 mm (Ref) / 680 x 470 x 415 mm (Frz)
|
|
Volume
|
326 / 136 litres (Ref / Frz)
|
|
Net Weight
|
121 kg
|
|
Temperature Setting Range
|
+2 to +14 °C (Ref) / -20 to -30 °C (Frz)
|
|
Temperature Control Range
|
+2 to +14 °C (Ref) / -20 to -30 °C (Frz)
|
|
Controller
|
Microprocessor
|
|

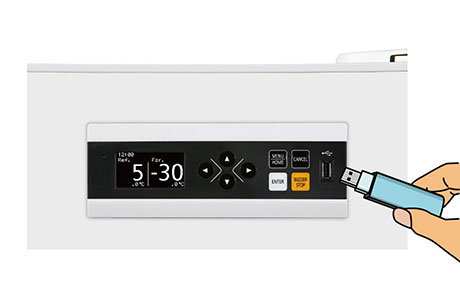

Display
|
White graphic OLED
|
|
Temperature Sensor
|
Thermistor
|
|

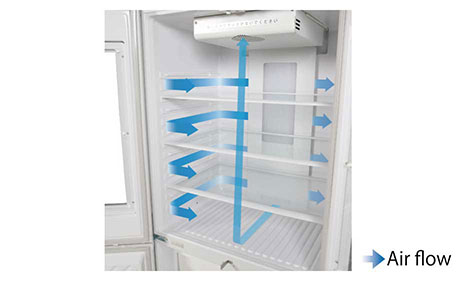

Cooling Method
|
Fan forced air circulation (Refrigerator) / Direct cooling (Freezer)
|
|
Defrost Method
|
Cyclical defrost (Refrigerator) / Manual (Freezer)
|
|
Refrigerant
|
HC refrigerant (Refrigerator / Freezer)
|
|
Insulation Material
|
PUF
|
|
Exterior Material
|
Painted steel
|
|
Interior Material
|
ABS resin (Refrigerator) / Painted steel (Freezer)
|
|

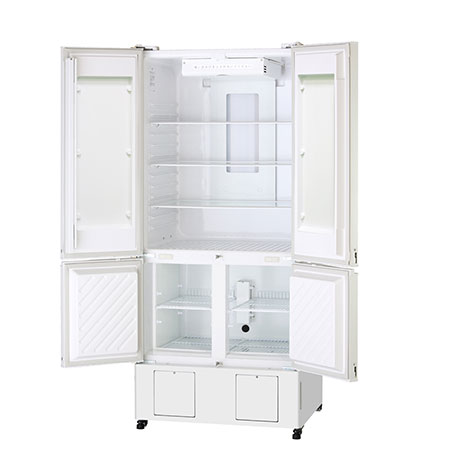

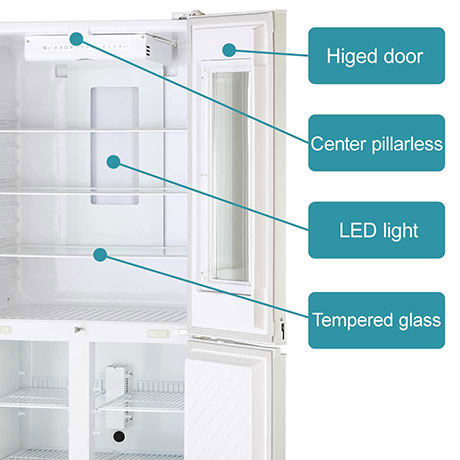

Outer Doors
|
4, Solid doors (without glass window)
|
|
Outer Door Lock
|
Y (Refrigerator / Freezer)
|
|

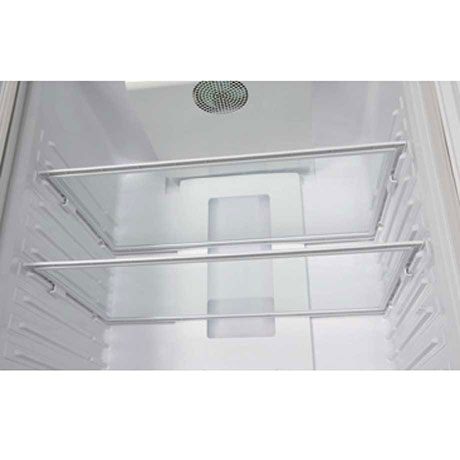

Shelves
|
Tempered glass (3) / Coated steel wires (2) (Refrigerator / Freezer)
|
|
Drawers
|
|
|
Max. Load - Per Shelf/Drawer
|
25 kg (Refrigerator) /15 kg (Freezer)
|
|
Max. Load - Total
|
|
|
Access Port
|
2 (1 for Refrigerator, 1 for Freezer)
|
|
Access Port Position
|
Back
|
|
Access Port Diameter
|
30 mm
|
|
Casters
|
4
|
|
Interior Light
|
LED
|
|
Power Failure
|
R (Remote alarm comes with optional power failure alarm MPR-48B2-PW)
|
|
High Temperature
|
V-B-M-R (V= Visual Alarm, B = Buzzer Alarm, R = Remote Alarm, M = Message)
|
|
Low Temperature
|
V-B-M-R
|
|
Door Open
|
V-B-M
|
|
Power Supply
|
Local
|
|
Noise Level
|
41 dB [A]
|
