MPR Pharmaceutical Refrigerators with Freezer

MPR-N250FSH Pharmaceutical Refrigerator with Freezer

Effective capacity
Refrigerator 179L / Freezer 80L
Temperature range
Refrigerator 2℃ to 14℃ / Freezer -20℃ to -30℃

Features

Natural Refrigerants and Inverter Technology

Naturally occurring hydrocarbon [HC] refrigerants have minimal effect on the environment and are compliant with environmental legislation for climate control.
Combined with inverter technology, these refrigerants also provide more efficient cooling without compromising performance and ambient tolerance and recovery speeds following door openings.

Superior Uniformity

The refrigerator provides superior uniformity throughout. Temperatures remain stable wherever products are stored, even in a fully loaded chamber. The refrigerator is engineered to prevent inadvertent freezing of temperature sensitive vaccines.

Security Control and Monitoring

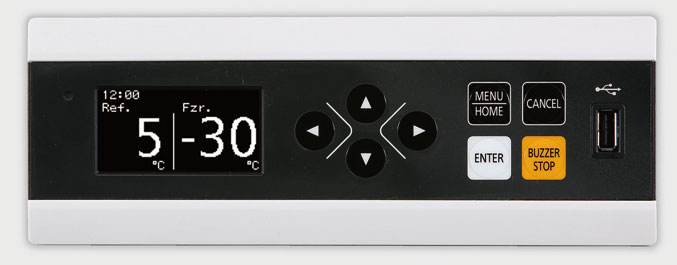

The microprocessor controller and OLED display are door mounted at eye level. Control buttons allow convenient but secure user control.
Refrigerator and freezer temperatures can be displayed in 0.1°C increments simultaneously or individually. Minimum/maximum temperatures are automatically displayed every 12/24 hours. All alarm conditions are displayed and recorded. Data transfer is through a USB port.

Energy-efficient performance

Natural refrigerants, compressors and integrated electronics combine to achieve facility sustainability objectives by minimising any environmental impact without compromising cooling performance, ambient tolerance and recovery speeds following door openings.

MPR-N250FSH

Temperature Distribution

MPR-N250FSH
Temperature uniformity is maintained at all storage levels even at full load conditions. This provides even, horizontal airflow across the solid adjustable glass shelves at each shelf level to assure optimum temperature uniformity under full load conditions.

Safe & Secure storage

Adjustable audible and visual alarms are standard, along with integrated system diagnostics and predictive performance supervision. The password-protected control panel provides security and minimises risk of accidental changes.

MPR-N250FSH

Performance (Pull-down & Pull-up Temperature (No load) AT35°C / AT30°C (Refrigerator/Freezer)

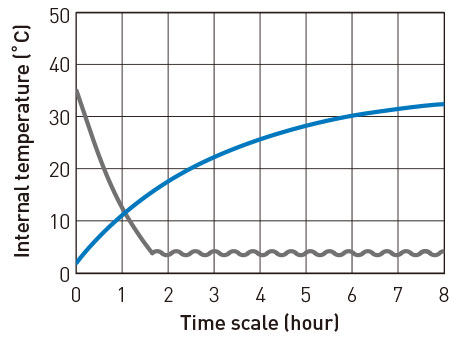

Refrigerator side 1/2 H Air 230 V, 50 Hz Continuous operation

MPR-N250FSH

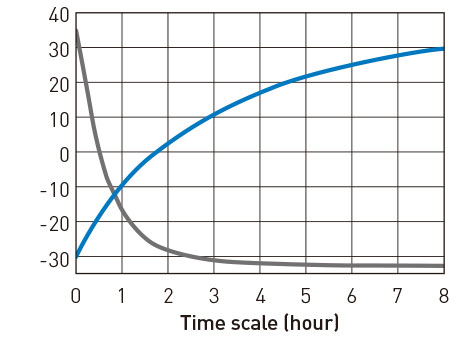

Freezer side 1/2 H Air 230 V, 50 Hz Continuous operation

MPR-N250FSH

Natural Refrigerants Vaccine Refrigerator & Freezer Famliy

  Steel Door Type MPR-N250FH

Product Photos

Specifications

External Dimensions (W x D x H) 510 x 640 x 1810 mm
Internal Dimensions (W x D x H) 430 x 516 x 903 mm (Ref) / 390 x 501 x 413 mm (Frz)
Volume 179 / 80 litres (Ref / Frz)
Net Weight 91 kg
Temperature Setting Range +2 to +14 °C (Ref) / -15 to -35℃ (Frz)
Temperature Control Range +2 to +14 °C (Ref) / -20 to -30 °C (Frz)
Controller Microprocessor with non-volatile memory
Display White graphic OLED
Temperature Sensor Thermistor
Cooling Method Fan forced air circulation (Refrigerator) / Direct cooling (Freezer)
Defrost Method Cyclical defrost (Refrigerator) / Manual (Freezer)
Refrigerant HC refrigerant (Refrigerator / Freezer)
Insulation Material Cyclopentane foamed polyurethane
Exterior Material Painted steel
Interior Material ABS resin (Refrigerator) / Painted steel (Freezer)
Outer Doors 2, Solid doors (without glass window)
Outer Door Lock Cylinder lock x1
Shelves Tempered glass (3) / Coated steel wires (1) (Refrigerator / Freezer)
Drawers
Max. Load - Per Shelf/Drawer 20 kg (Refrigerator) /10 kg (Freezer)
Max. Load - Total
Access Port 2 (1 for Refrigerator, 1 for Freezer)
Access Port Position Back
Access Port Diameter 30 mm
Casters 4
Interior Light LED
Power Failure R (Remote alarm comes with optional power failure alarm MPR-48B2-PW)
High Temperature V-B-M-R (V= Visual Alarm, B = Buzzer Alarm, R = Remote Alarm, M = Message)
Low Temperature V-B-M-R
Door Open V-B-M
Power Supply PA: 115 V, 60 Hz / PE: 220/230/240 V, 50 Hz
Noise Level 40 dB [A]

Options

Temperature chart recorder (Ref) MTR-0621LH-PE/PA
Chart paper (Ref) RP-06-PW
Recorder housing (Ref) MPR-S30W-PW
Circular temp. chart recorder (Ref / Frz) MTR-G3504C-PE/MTR-G3504A-PA
Chart paper (Ref / Frz) RP-G3504-PW
Ink pen (Ref / Frz) PG-RB-PW
Continuous strip type (Frz) MTR-4015LH-PE/PA
Chart paper (Frz) RP-40-PW
External mounting power failure alarm MPR-48B2-PW

Price

MPR-N250FSH The price might vary in country. Please send the inquiry form for getting quotation.
