PHCbi

Blood Bank Refrigerators

MBR-305GR Blood Bank Refrigerator

Effective capacity
302L
Temperature
4℃ ±1.5℃
Compare

Features

Robust design for safest storage of whole blood

The MBR-305GR Blood Bank Refrigerator is designed to store 120 pcs of 400ml blood bags by reliable temperature control utilizing PHCbi original technology A special highly efficient compressor designed and developed by PHCbi provides rapid cooling and quiet performance for each model. Ideally suited for whole blood storage with stable and reliable temperature control for various inventory loads.

MBR Blood Bank Refrigerators with a highly efficient compressor that provides superior temperature recovery, rapid cooling and quiet performance for each model. Designed with all the features for blood product preservation such as superior uniformity, microprocessor control, and large flexible storage capacity. Whatever your preservation needs are, PHCbi provides the right equipment to meet your exact needs.

PHC also offers three other sizes of the same type Blood Bank Refrigerator:

Benefits

  • Stable Temperature Control
  • Forced Air Circulation for Enhanced Temperature Stability
  • User Friendly Design
  • Environmental Friendly
  • The Ideal +4°C Environment for Safe & Reliable Storage of Whole Blood

Features

  • Roll-out drawers
  • Plexiglas inner doors
  • Single Door
  • Temperature Monitoring Features
  • Two thermistor sensors
  • MBR series are designed to minimize cold air loss even with frequent door openings.
  • Audible and flashing LED visual alarms
  • Built-in temperature recorder, standard.
  • Unified remote monitoring system for Panasonic Biomedical products (optional)
  • Panasonic Data Acquisition Software MTR-2000
  • Analogue module required.

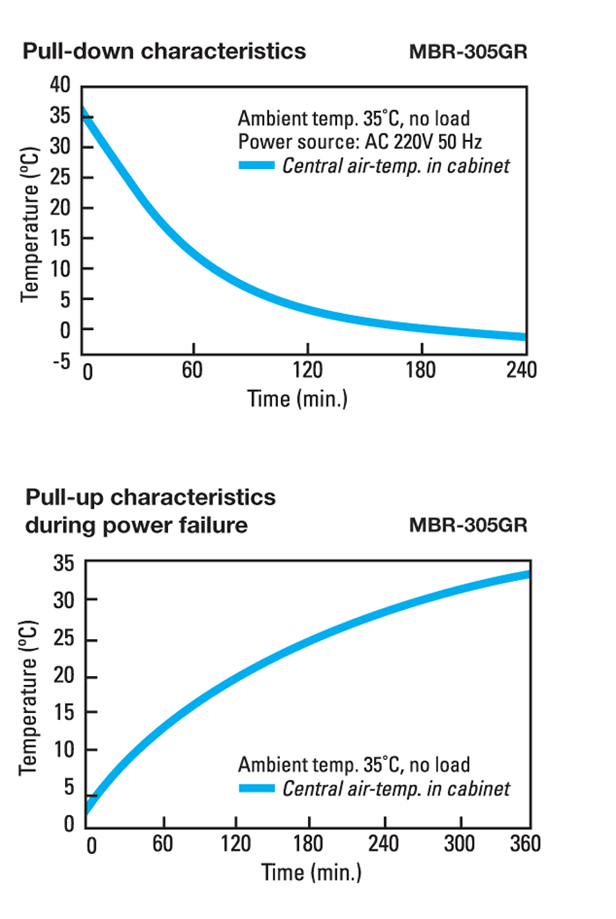

Performance

MBR-305GR

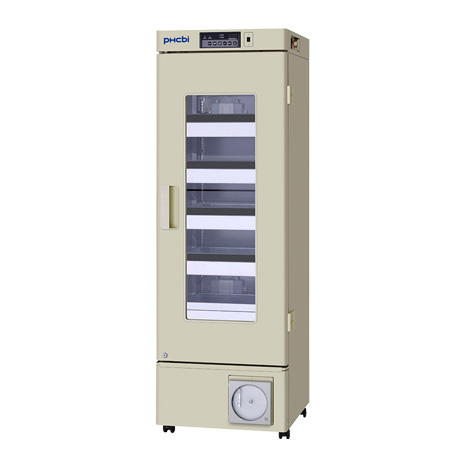

Product Photos

Specifications

External Dimensions (W x D x H) 600 x 680 x 1835 mm
Internal Dimensions (W x D x H) 520 x 490 x 1150 mm
Volume 302 litres
Net Weight 147 kg
Capacity 120 bags (400ml)
Temperature Setting Range 4 °C +/-1.5 °C (AT 35°C)
Controller Microprocessor
Display Digital LED
Temperature Recorder MTR-G04 (Included)
Temperature Sensor 2 bottles with thermistor sensor
Exterior Material Baked-on acrylic finish galvanised steel
Interior Material Baked-on acrylic finish galvanised steel
Outer Doors Insulated steel frame with double-layer glass windows
Outer Door Lock 1
Inner Doors 2 Acrylic
Shelves 5 stainless steel roll-out drawers
Max. Load - Per Shelf/Drawer 20 kg
Max. Load - Total -
Access Port 1
Access Port Position left hand side
Access Port Diameter 30
Casters 4
Interior Light -
Power Failure Y
High Temperature Y
Low Temperature Y
Door Open Y
Power Supply Local
Noise Level -

Accessories

RS485 interface module MTR-480-PW
Temperature chart recorder included
chart paper RP-G04-PW
Ink pen PG-R-PW

Price

MBR-305GR Price Upon Inquiry. Please contact your local dealers.

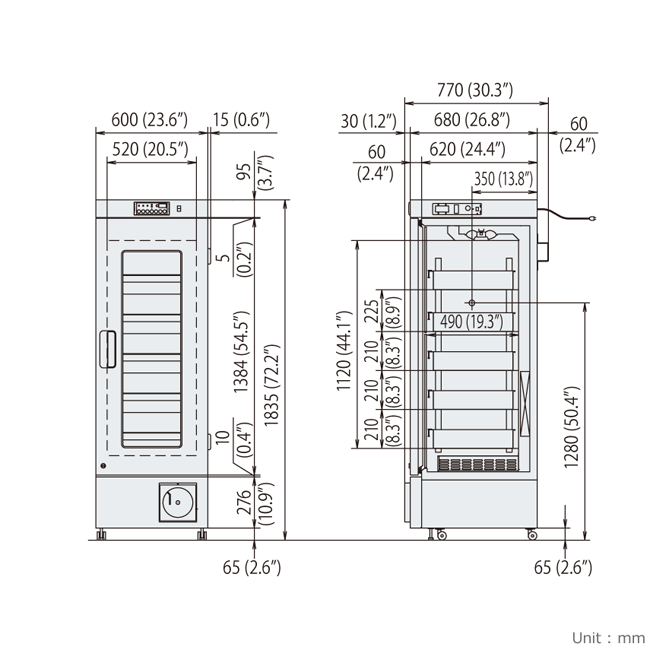

Dimensions

Catalog Download

Options
