Biomedical -30°C Freezers

MDF-437 Biomedical -30°C Freezer

Effective capacity
425L
Temperature range
-20℃ to -30℃

Features

Power to counteract frequent door openings

The MDF-437 Biomedical -30°C Freezer offers outstanding reliability and performance required in a wide variety of storage and research applications.

As a storage environment, with excellent safety features, easy operability, and a host of other features, these freezers offer unsurpassed reliability and functionality. If you are looking for precision temperature controlled storage equipment as low as -30°C, trust the MDF-437 Biomedical -30°C Freezer.

PHC Europe B.V. also offers the MDF-137 Biomedical -30°C Freezer, with a capacity of 138 litres, and the MDF-237 Biomedical -30°C Freezer, with a capacity of 221 litres.

Benefits

  • Large size 400-liter class
  • Digital temperature display as standard feature
  • Large-capacity, economical size
  • Environment friendly

Features

  • Enhanced Operation
  • Memory backup
  • Temperature display
  • Front access calibration for temperature
  • Single electrical box makes servicing easier
  • Control panel can be reset to zero for calibration
  • Optional Recording Features
  • Environmental friendly HFC Refrigerant
  • Alarm & Recording system
  • High/low temperature alarm
  • Power failure alarm
  • Remote alarm contact
  • Self diagnostics function

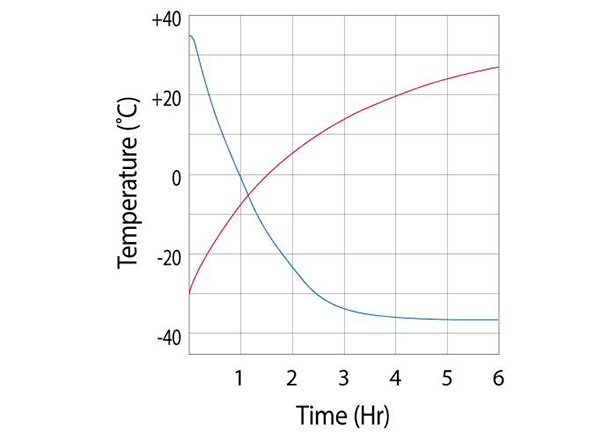

Performance

MDF-437

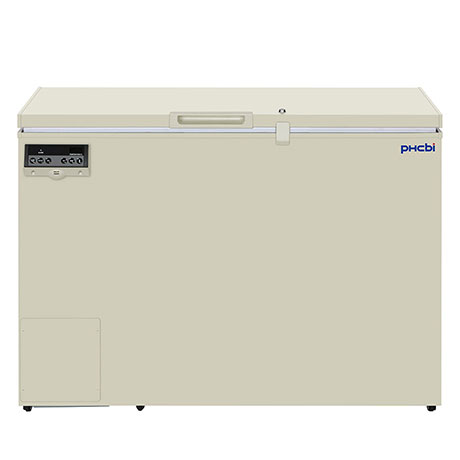

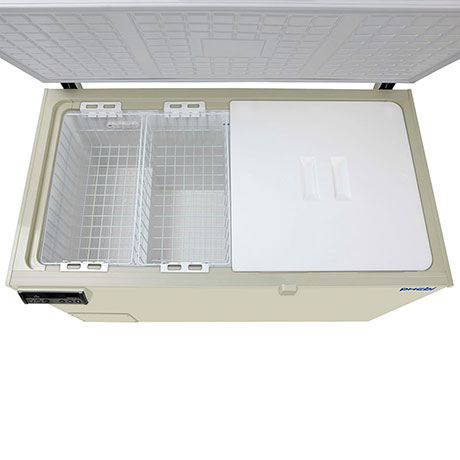

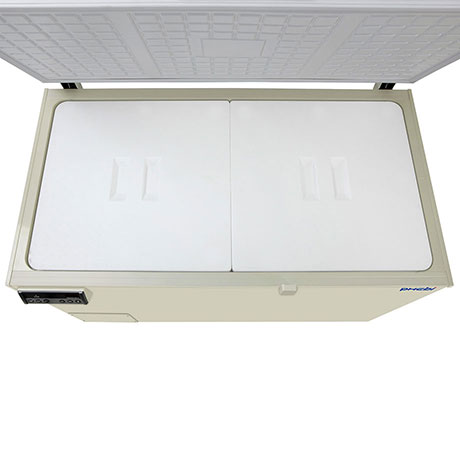

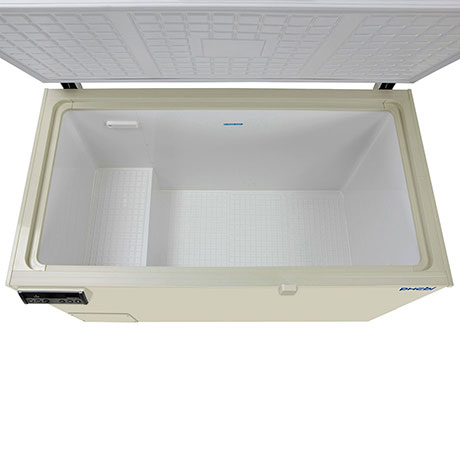

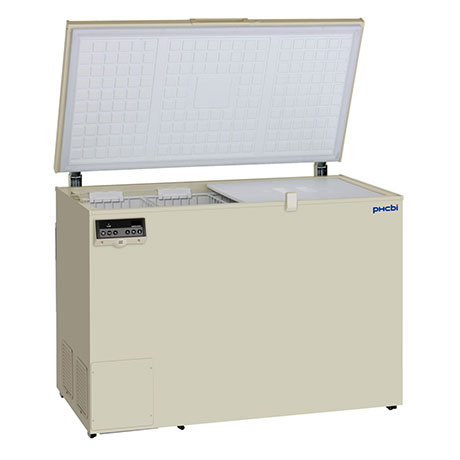

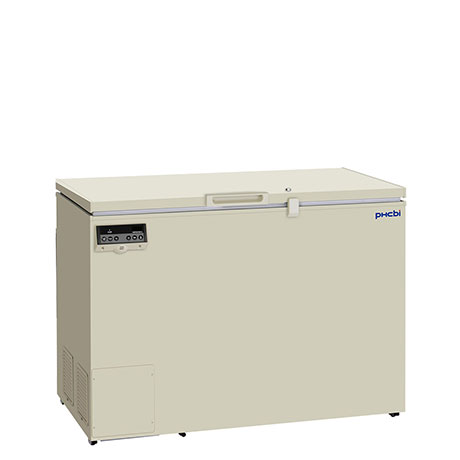

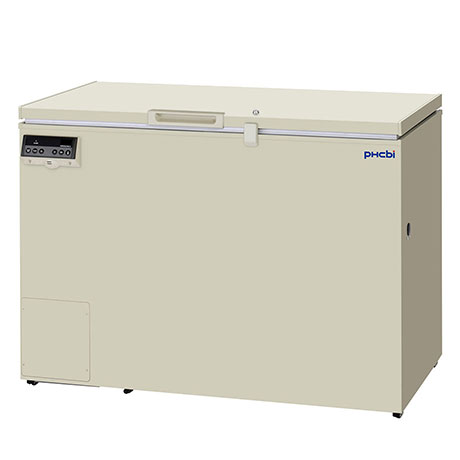

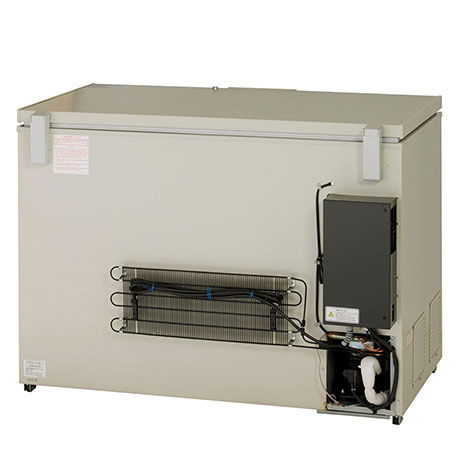

Product Photos

Specifications

External Dimensions (W x D x H) 1265 x 807 x 905 mm
Internal Dimensions (W x D x H) 1140 x 550 x 735 mm
Volume 426 litres
Net Weight 81 kg
Capacity (Aluminium Racks 2” Boxes) -
Capacity (Stainless Steel Racks 2” Boxe) -
Cooling Performance -30 °C
Temperature Setting Range -18 to -35 °C
Temperature Control Range -20 to -30 °C
Controller Electronic
Display LED
Temperature Sensor Thermistor
Refrigeration System Direct
Compressors 250 W
Refrigerant HFC and HFO combined
Insulation Material PUF
Insulation Thickness 60 mm
Exterior Material Painted Steel
Interior Material Colored aluminum plate
Outer Doors/Lid -
Outer Door Lock -
Inner Doors/Lid -
Shelves
Max. Load - Per Shelf -
Max. load - Total -
Vacuum Release Port -
Access Port 2
Access Port Position right / bottom left
Access Port Diameter 17
Casters -
Power Failure V-B-R
High Temperature V-B-R
Low Temperature V-B-R
Filter -
Door Open -
Power Supply Local
Frequency Local
Noise Level 42 dB [A]

Accessories

Storage systems MDF-13B2
Temperature recorders
- Circular type (recorder housing) MTR-G85 (MDF-S740)
- Continuous strip type (recorder housing) MTR-4015LH (MDF-S3040)
RS485 Interface Module MTR-480

Price

MDF-437 The price might vary in country. Please send the inquiry form for getting quotation.

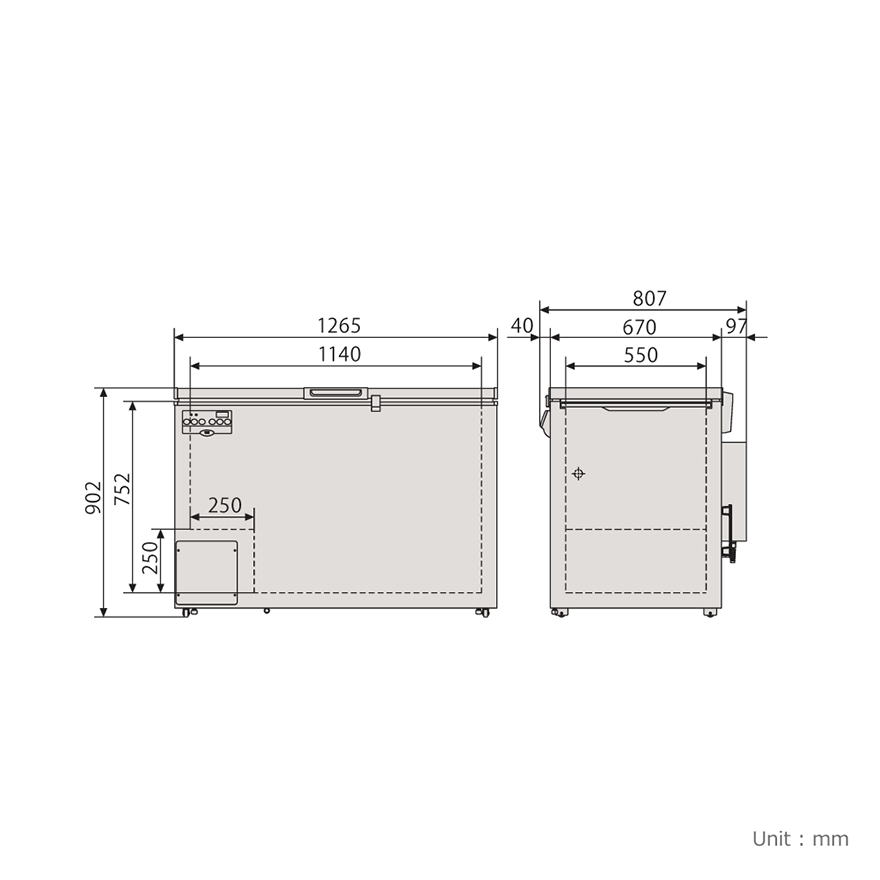

Dimensions

Catalog Download

Options
