PHCbi

MLR Climatic Test Chambers

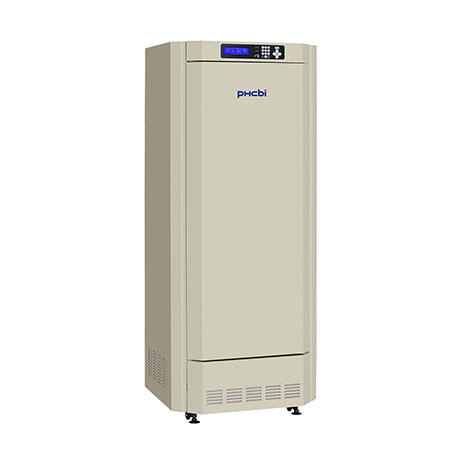

MLR-352 Climate Chamber

Effective capacity
294L
Temperature range
+5℃ to 50℃

Features

Versatile Climatic Chamber

The MLR-352 Climatic Test Chamber has been recognized as an exceptional unit suitable for a wide range of applications. The wide variety of temperatures, humidity and lighting patterns that are essential in research, environmental studies and testing can now be accurately reproduced and controlled.

The microprocessor P.I.D. and refrigeration capacity control minimizes temperature fluctuations and thereby improves temperature control. This allows precise experiments plus energy and electricity savings.

Programming of temperature, light, and humidity can be used for small plants, environmental tests, algae, drosophila, etc. Easy calibration of temperature and humidity can be calibrated easily through the control panel. Small lightweight, high molecular membrane-type humidity sensor also boasts a high degree of accuracy and reproducibility.

Graphic LCD panel with pop-up menu function on control panel provides visual display of operation and allows intuitive operation.

PHC Europe B.V. also offers the MLR-352H, which has humidity control.

Benefits

  • Microprocessor P.I.D. controls temperature and humidity to create the optimum environments for various applications.
  • Programmable temperature (0°C to 50°C), lighting 0 to 20.000 lux) and humidity function (55-90% RH) (MLR-351H only).
  • Easy calibration through controller.
  • Small lightweight, high molecular membrane-type humidity sensor.
  • Programmable Temperature Function can operate 12 step programs.
  • Automatic Data Logging of Operational Data of approximately two weeks (6 minute intervals) can be automatically recorded.

Features

  • Graphic LCD for easy operation.
  • Automatic Data Logging.
  • Programmable Temperature Function.
  • Data logging function.

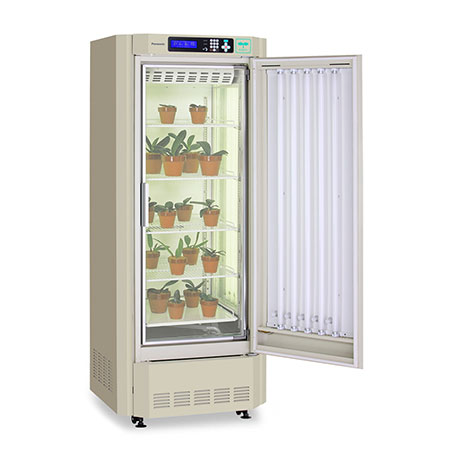

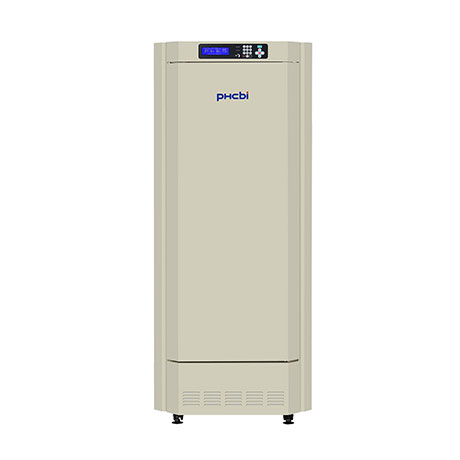

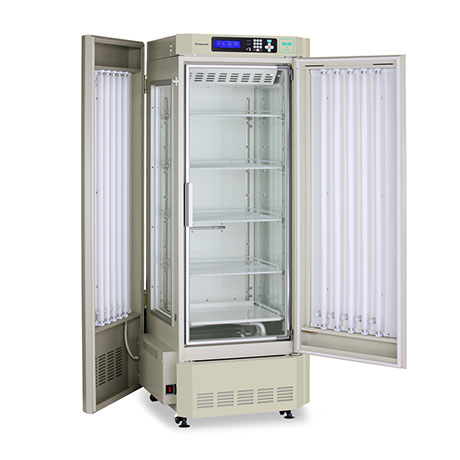

Product Photos

Specifications

External Dimensions (W x D x H) 760 x 700 x 1835 mm
Internal Dimensions (W x D x H) 520 x 490 x 1135 mm
Volume 294 liters
Net Weight 226 kg
Temperature Control Range & Fluctuation 0 ~ +50 (lamp off) ±0.3 °C
+10 ~ +50 (lamp on) ±0.3 °C
Temperature Uniformity ±1 °C (lamp off)
±2.5 °C (lamp on)
Humidity Level & Fluctuation N/A
Light Control Range Programmable 0 ~ 20000
Temperature Sensor Thermistor
Display LCD
Exterior Material Painted Steel
Interior Material SS SUS-304
Insulation Material PUF
Outer Doors 3
Outer Door Lock N
Field Reversible Door -
Inner Doors 1
Shelves 5
Shelf Dimensions (W x D x H) -
Max. Load Per Shelf 25 kg
Max. Shelf Capacity 100
Access Port 1
Access Port Position Ceiling
Access Port Diameter 40
Power Failure R
Out of Temperature Setting B-R
High Temperature B-R
Out of Humidity Setting N/A
Door Open V-B
Power Supply Local
Frequency Local
Noise Level 29 dB

Accessories

Digital interface MTR-480-PW

Price

MLR-352 Price Upon Inquiry. Please contact your local dealers.

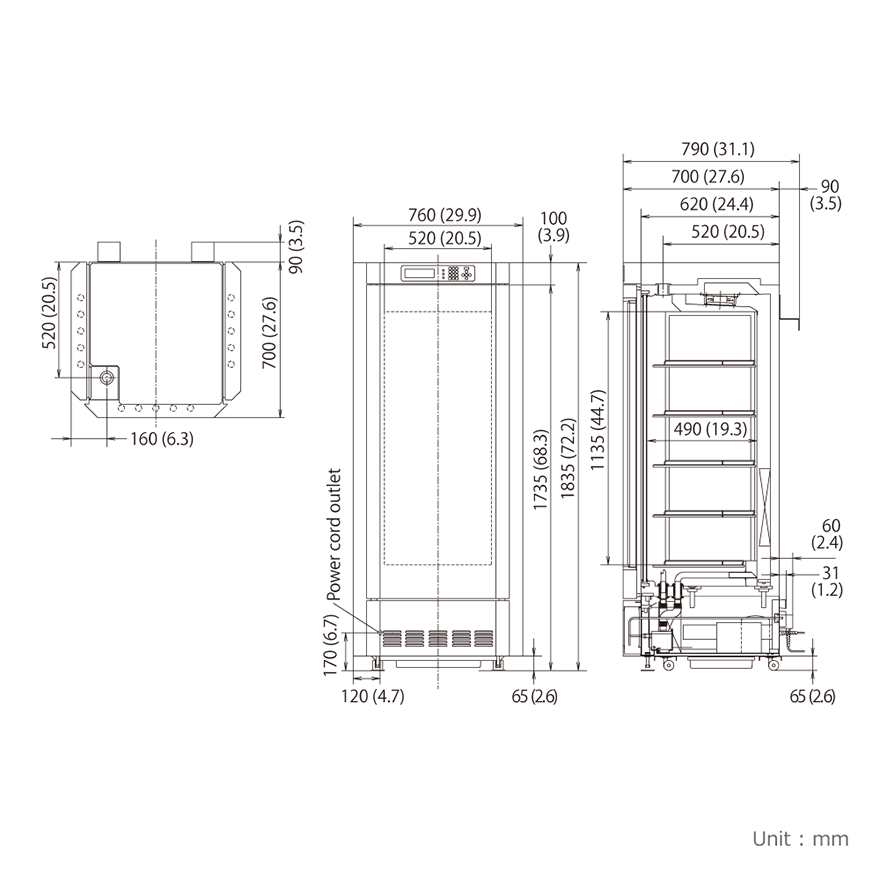

Dimensions

Catalog Download
