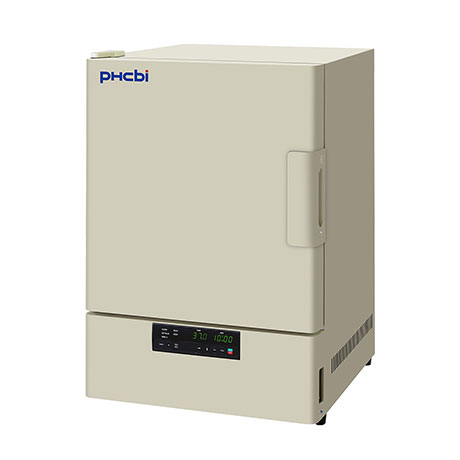

MIR-H163 Heated Incubator

Effective capacity
93L
Temperature range
Ambient temperature +5℃ to 80℃

Features

Intuitive and easy operable Heated Incubators

The MIR-H163 Heated Incubator provides a precise and stable incubation environment. An accurate microprocessor timer is fitted to allow experiments up to 99 hours and 59 minutes.

The MIR Heated Incubators incorporate an 8-bit microprocessor controller for heat and refrigeration control ±0.2°C. Programmable models include three-step functions useful for investigations involving microbiology, plant cell biology and more.

Microprocessor timer function

An accurate microprocessor timer control allows experiments of up to 99 hours and 59 minutes. Delayed start times can be set as desired. When an experiment is complete, a buzzer will sound and samples will be stored at a set temperature until removed. Various operating patterns can be set using the display panel.

Benefits

  • Heated Incubators provide a precise and stable incubation environment.
  • A wide range of applications including biological cultures and environmental studies.
  • Accurate temperature control by Microprocessor.
  • PID control system and Air Jacket system.
  • Operation timer function.
  • Alarms and Self diagnostic function secure safety operation.
  • Temperature range 5°C above ambient to 80°C.
  • Temperature accuracy ±0.2 at +37°C.

Features

  • Temperature range 5°C above ambient to 80°C.
  • Temperature accuracy ±0.2 at +37°C.
  • Microprocessor Controlled Timer.
  • Advanced Design.
  • 93 liters.
  • Precise Temperature Control.

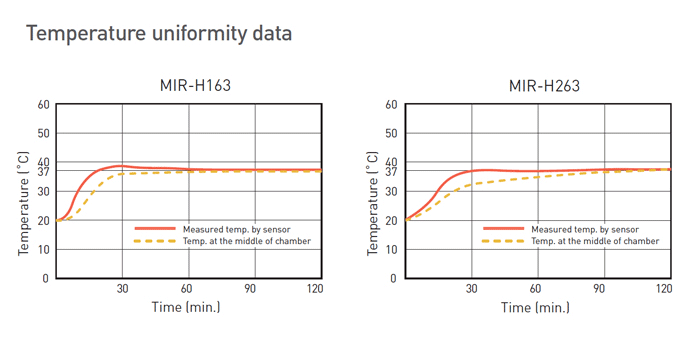

Performance

MIR-H163

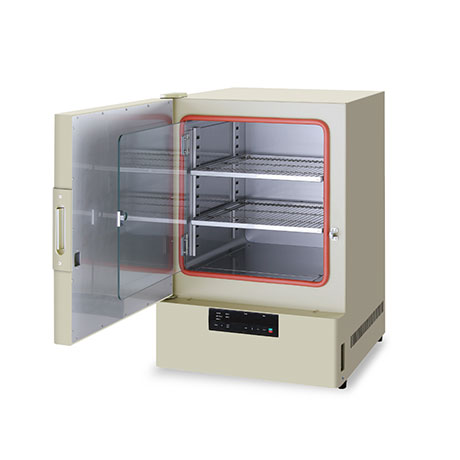

Product Photos

Specifications

External Dimensions (W x D x H) 580 x 595 x 820 mm
Internal Dimensions (W x D x H) 450 x 460 x 450 mm
Volume 93 litres
Net Weight 50 kg
Temperature Control Range Ambient temp +5 ~ +80 °C
Temperature Fluctuation ±0.2 °C (<- 60) ~ ± 0.5 °C (60 ~ 80)
Temperature Uniformity ±1 °C
Controller -
Display LED
Temperature Sensor Thermistor
Exterior Material Painted steel
Interior Material SS SUS-304
Insulation Material Glass fibre
Outer Doors 1
Outer Door Lock -
Reversible Door -
Inner Doors 1
Shelves 2
Max. Load Per Shelf
Max. Total Load
Out of Temperature Setting V-B
High Temperature V-B
Power Supply Local
Frequency Local
Noise Level -

Price

MIR-H163 Price Upon Inquiry. Please contact your local dealers.

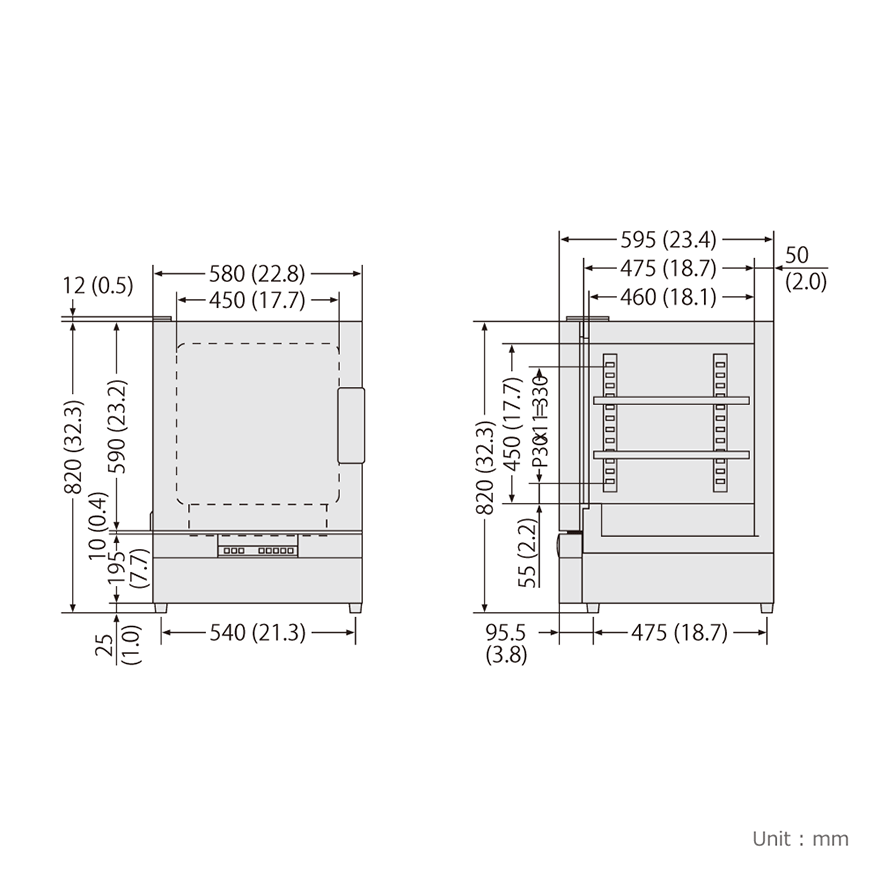

Dimensions
