MIR-554 Cooled Incubator

Effective capacity
406L
Temperature range
-10℃ to +60℃

Features

All-round performance

The MIR-554 Cooled Incubator with a capacity 406 liters of is recognized as an exceptional unit suitable for a wide range of applications requiring a -10ºC to +60ºC environment. The wide variety of temperature and lighting patterns that are essential in research, environmental studies and testing can now be accurately reproduced and controlled.

PHC also offers two other sizes of the same type MIR Cooled Incubators:

Benefits

  • Programmable with 12 step, 10 program capability.
  • Wide temperature range from -10ºC to +60ºC with excellent uniformity.
  • Multi-purpose for a wide range of applications from the food industry to water treatment and microbiology.
  • Precise Temperature Control For Accurate, Repeatable Conditions.
  • Chamber temperature uniformity ±0.5°C.
  • Energy Saving Operation.
  • Ultimate Secure, Comprehensive Alarm System.
  • Modern Design for Exceptional Usability.
  • Ultimate Security and Sample Safety.

Features

  • High precision microprocessor controller combined with a heater P.I.D. and compressor On-Off system.
  • Wide temperature range settable from -10°C to +60°C with control up to ±0.1°C.
  • Chamber temperature uniformity ±0.5°C.
  • Energy Saving Operation.
  • Intelligent LCD Controller.
  • Automatic Setting Temperature Alarm.
  • Independent Over-temperature Protection Device.
  • Programmed Memory Back-up Mechanism.
  • Automatic Return Buzzer Switch.
  • Key Lock.
  • Trouble Monitor (Self Diagnostic Function).

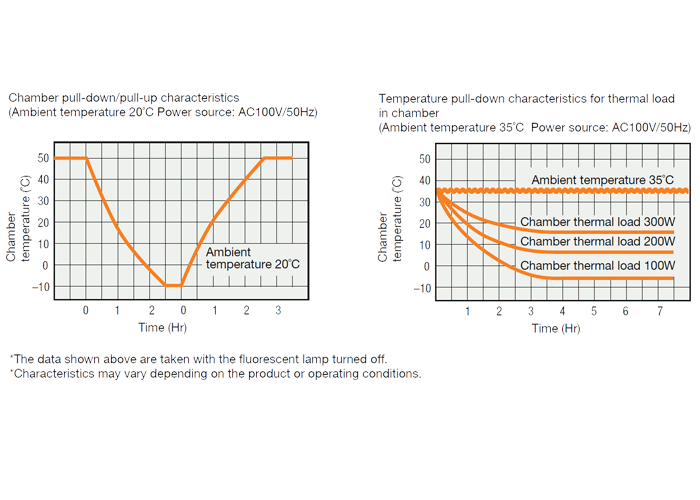

Performance

MIR-554

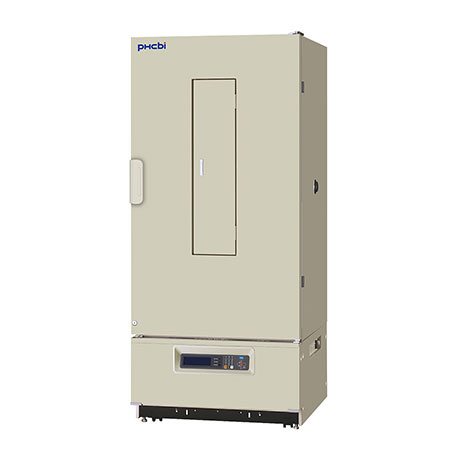

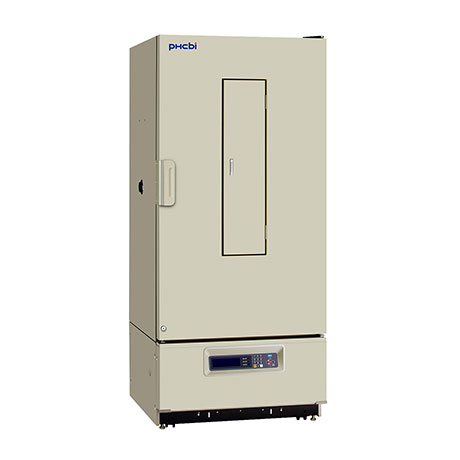

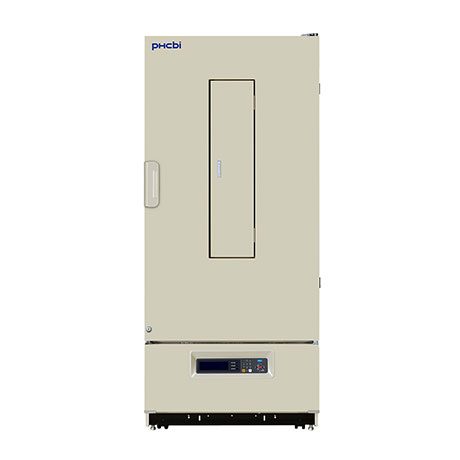

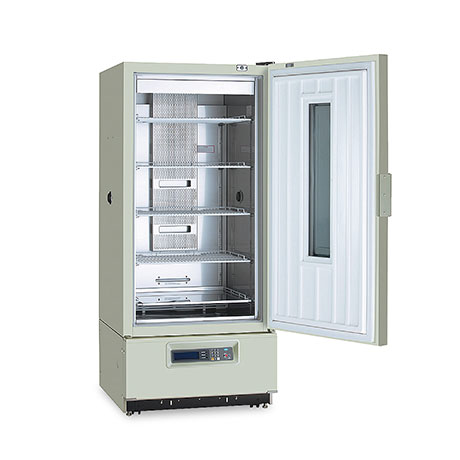

Product Photos

Specifications

External Dimensions (W x D x H) 800 x 832 x 1810 mm
Internal Dimensions (W x D x H) 640 x 550 x 1160 mm
Volume 406 litres
Net Weight 195 kg
Temperature Control Range -10°C ~ +60°C (AT +5°C ~ +35°C, no load)
Temperature Fluctuation ±0.2 with Heater PID control (SV 50°C, Ambient Temp 20°C, No load), ±1.5 with Compressor control (SV 5°C, Ambient Temp 20°C, No load)
Temperature Uniformity ±0.5 (SV 37°C, Ambient Temp 20°C, No load)
Controller Microprocessor PID System (ON-OFF control when compressor operates)
Display LCD
Temperature Sensor Thermistor
Cooling Method Forced air circulation
Compressors 250 W
Refrigerant
Insulation Material PUF
Insulation Thickness 80 mm
Exterior Material Painted steel
Interior Material SS SUS-304
Outer Doors
Outer Door Lock
Reversible Door
Inner Doors
Shelves
Max. Load Per Shelf 50 kg
Max. Total Load 250 kg
Access Port
Access Port Position left and right side
Access Port Diameter 40
Interior Fluorescent Lamp 1, 15 W, with MIR-L152 option
Power Failure -
High Temperature V-B-R
Low Temperature V-B-R
Door Open V-B
Power Supply Local
Frequency Local
Noise Level 45 dB

Price

MIR-554 Price Upon Inquiry. Please contact your local dealers.

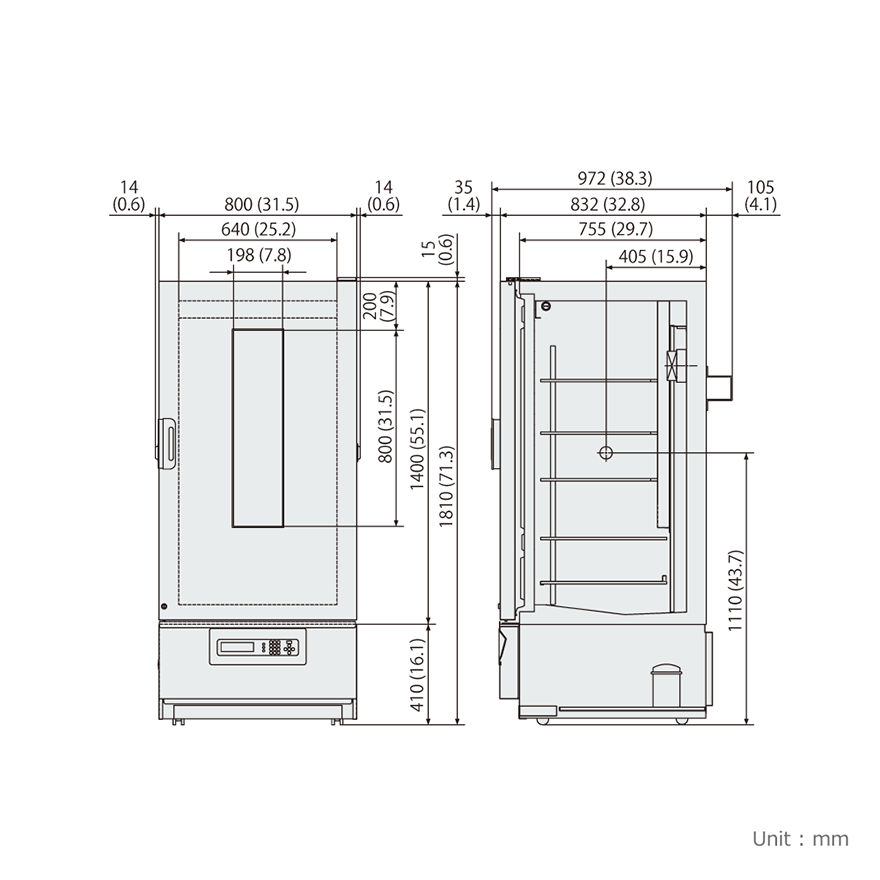

Dimensions

Catalog Download

Options
