PHCbi

Cooled Incubators

MIR-254 Cooled Incubator

Effective capacity
238L
Temperature range
-10℃ to +60℃

Features

All-round performance

The MIR-254 is an 238 liter Cooled Incubator and is recognized as an exceptional unit suitable for a wide range of applications requiring a -10ºC to +60ºC environment. The wide variety of temperatures and lighting patterns that are essential in research, environmental studies and testing can now be accurately reproduced and controlled.

PHC also offers two other sizes of the same type MIR Cooled Incubators:

Benefits

  • Wide temperature range from -10ºC to +60ºC with excellent uniformity.
  • Precise Temperature Control For Accurate, Repeatable Conditions.
  • Energy Saving Operation.
  • Ultimate Secure, Comprehensive Alarm System.
  • Modern Design for Exceptional Usability.
  • Prevents Medium from drying out.

Features

  • 406 litres.
  • Energy Saving Operation.
  • Modern Design for Exceptional Usability.
  • Wide temperature range.
  • Ultimate Secure, Comprehensive Alarm System.

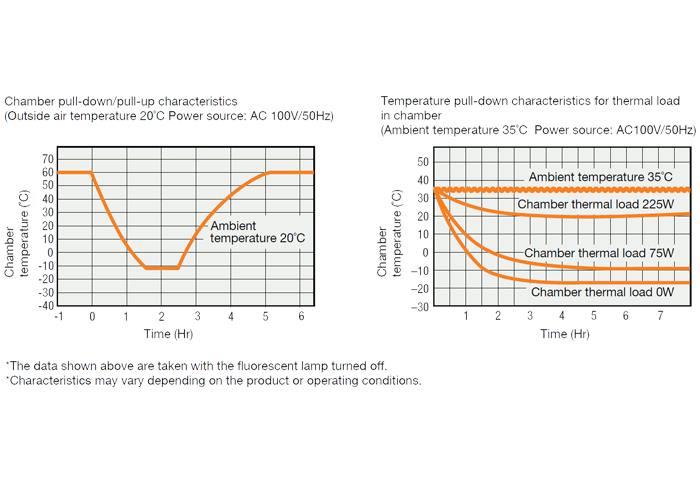

Performance

MIR-254

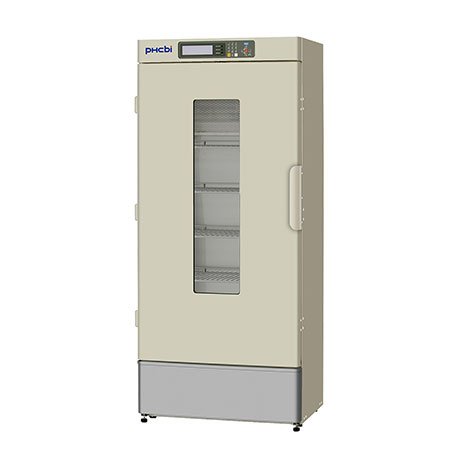

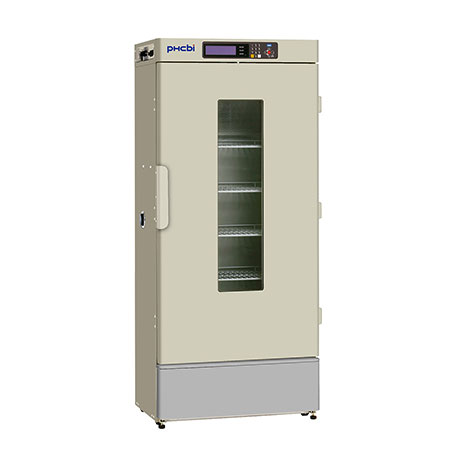

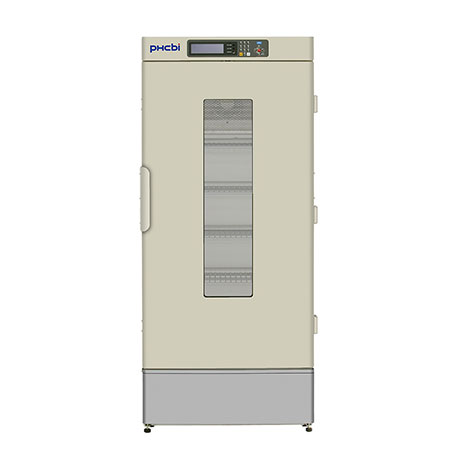

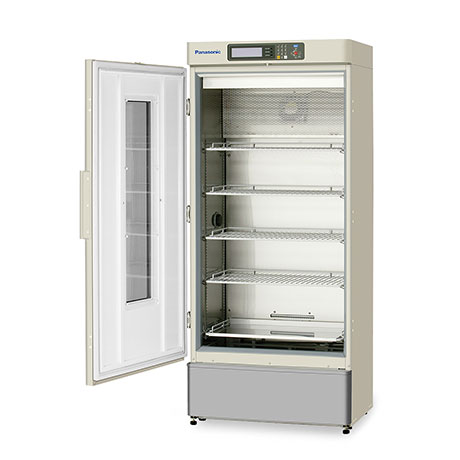

Product Photos

Specifications

External Dimensions (W x D x H) 700 x 580 x 1618 mm
Internal Dimensions (W x D x H) 620 x 368 x 1088 mm
Volume 238 litres
Net Weight 108 kg
Temperature Control Range -10°C ~ +60°C (AT +5°C ~ +35°C, no load)
Temperature Fluctuation ±0.2 with Heater PID control (SV 50°C, Ambient Temp 20°C, No load), ±1.5 with Compressor control (SV 5°C, Ambient Temp 20°C, No load)
Temperature Uniformity ±0.5 (SV 37°C, Ambient Temp 20°C, No load)
Controller Microprocessor PID System (ON-OFF control when compressor operates)
Display LCD
Temperature Sensor Thermistor
Cooling Method Forced air circulation
Compressors 250 W
Refrigerant
Insulation Material PUF
Insulation Thickness 40 mm
Exterior Material Painted steel
Interior Material
Outer Doors
Outer Door Lock MIR-LP option
Reversible Door
Inner Doors
Shelves
Max. Load Per Shelf 20 kg
Max. Total Load 100 kg
Access Port 1
Access Port Position left side
Access Port Diameter 40
Interior Fluorescent Lamp 1, 15 W, with MIR-L152 option
Power Failure -
High Temperature V-B-R
Low Temperature V-B-R
Door Open V-B
Power Supply Local
Frequency Local
Noise Level 44 dB

Price

MIR-254 Price Upon Inquiry. Please contact your local dealers.

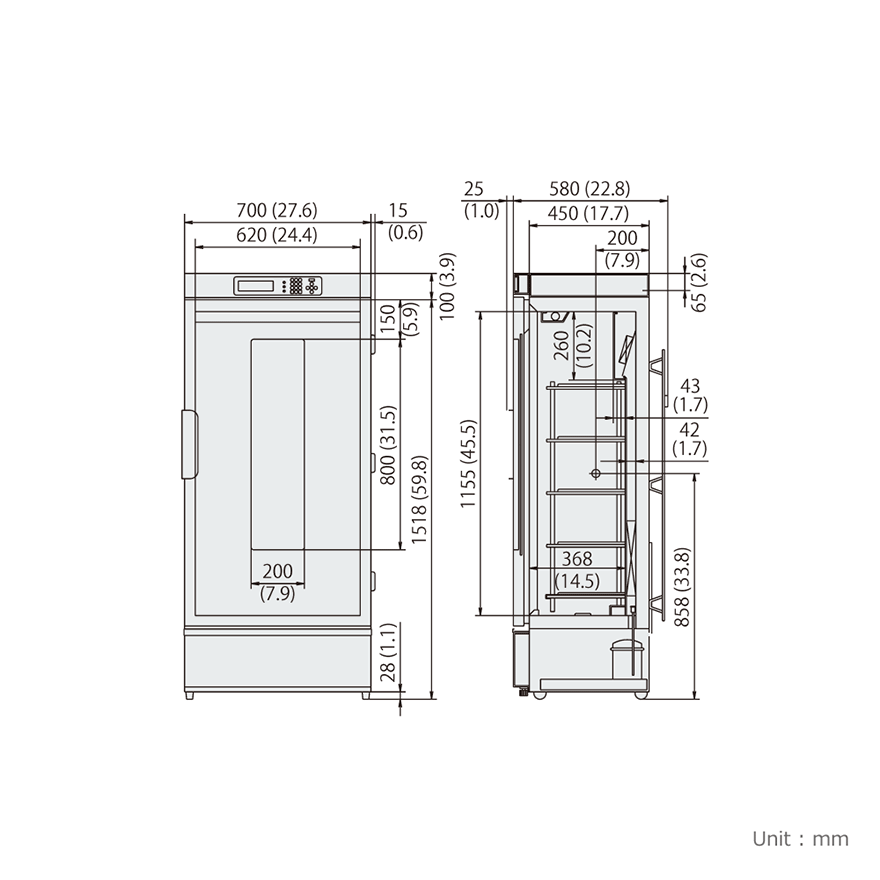

Dimensions

Catalog Download

Options
