PHCbi

CO2 Incubators

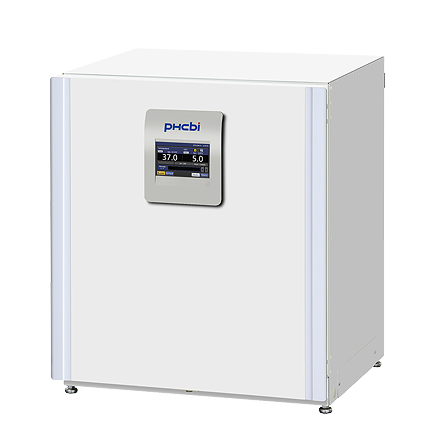

MCO-230AIC CO2 Incubator

Effective capacity
230L
Temperature range
+5℃ above ambient to 50℃

Features

Optimising cell culture outcomes and reproducibility

Creating successful cell cultures requires a CO2 Incubator that offers the highest levels of precision, security and ease of use.

Precise & Regulated Environment

InCu-saFe and SafeCell UV both function to actively prevent contamination. The Direct Heat and Air Jacket System regulates the temperature whilst the Dual IR sensor controls the CO2 level.

Time-Saving Decontamination

The high-speed decontamination system uses vaporised hydrogen peroxide and UV light. It cleans the chamber of the incubator safely in less than three hours, achieving a minimal 6 log reduction of major contaminants.

Ease of Use & Increased Capacity

A full colour LCD touchscreen allows full control even with gloved hands. Transfer of data is easy via a USB port. The easy-toclean interior features fully rounded corners and integrated shelf supports.

"The increased capacity offers the possibility to utilise the incubator from R&D to clinical trials and manufacturing"

Benefits

  • Improved insulation performance and lower running costs
  • PID Control of CO2 and temperature
  • Dual IR CO2 sensor
  • Optimum protection for your cell culturers
  • More space for more cultures
  • PHCbi’s H2O2 vapour sterilisation cycle reduces downtime to less than 3 hours for complete, validatable decontamination for increased productivity.

Features

  • DHA Direct heat and air jacket system
  • Dual IR CO2 sensor
  • InCu saFe® copper-enriched stainless steel interior
  • Optional Safe Cell UV® with NEW increased UV lamp life (Standard in the MCO-230AICUV and MCO-230AICUVH)
  • Optional electric door lock (Standard in the MCO-230AICUVH)
  • Integrated shelf supports
  • Full colour LCD touch screen
  • USB port

Product Photos

Specifications

External Dimensions (W x D x H) 770 x 730 x 905 mm
Internal Dimensions (W x D x H) 643 x 523 x 700 mm
Volume 230 liters
Net Weight 90 kg
Temperature Control Range & Fluctuation AT +5 ~ +50, ±0.1 °C
Temperature Uniformity ±0.25 °C
CO2 Control Range & Fluctuation 0 ~ 20, ±0.15 %
O2 Control Range & Fluctuation -
Humidity Level & Fluctuation 95, ±5 %RH
Sterilisation Method H2O2 Decontamination
Temperature Sensor Thermistor
CO2 Sensor Dual IR
O2 Sensor -
Display
Exterior Material Painted Steel (rear cover not painted)
Interior Material Stainless Steel Copper-Enriched Alloy
Insulation Material Styrene AcryloNitrile copolymer
Heating Method Direct Heat & Air Jacket System
Outer Doors 1
Outer Door Lock Optional
Field Reversible Door Included
Inner Doors 1 gastight - made of tempered glass
Shelves
Shelf Dimensions (W x D x H) 620 x 450 x 12 mm
Max. Load Per Shelf 7 kg
Max. Shelf Capacity 10
Access Port 2
Access Port Position Rear
Access Port Diameter 30
Power Failure R
Out of Temperature Setting V-B-R
High Temperature V-B-R
Out of CO2 Setting V-B-R
Out of O2 Setting -
Door Open V-B
Power Supply Local
Frequency Local
Noise Level 25 dB

Accessories

Options
Safe Cell UV system MCO-170UVS-PE
H2O2 Decontamination board MCO-170HB-PE
Electric door lock with password MCO-170EL-PW
H2O2 vapour generator MCO-HP-PW
H2O2 reagent pack of 6 bottles
CO2 gas pressure regulator MCO-100L-PW
Automatic CO2 cylinder changeover system MCO-21GC-PW
Semi-automatic one point gas calibration kit MCO-SG-PW
InCu saFe shelf MCO-230ST-PW
InCu saFe half tray system MCO-35ST-PW
Double stacking bracket MCO-170PS-PW
Stacking plate MCO-230SB-PW
Roller base MCO-230RB-PW
Optional communication systems
Ethernet interface (LAN) MTR-L03-PW
Digital interface (RS232C/RS485) MTR-480-PW

Price

MCO-230AIC Price Upon Inquiry. Please contact your local dealers.
