Cut Down on Electricity Bills with An Energy-Saving Model

*Actual energy usage and savings are subject to operating conditions and electricity tariff. Price of electricity presented is in US$ with reference to Singapore Power: https://www.spgroup.com.sg/home

NEW FUNCTIONS

Enjoy reduced power consumption just by changing over to one of our latest models featuring these functions:

: Eco operation and Energy saving
Our products with this label means natural hydrocarbon (HC) refrigerants are used to provide minimal energy consumption, reduced environmental impact and substantially lower running costs.
These refrigerants also have an extremely low global warming potential which helps organizations to meet environmental objectives.

: New inverter compressor
Energy Efficient, Balanced Power Smart compressors, natural refrigerants and integrated electronics combine to lower your facility’s operating costs. The preservation operation is managed by the practical balance of temperature performance and energy management.

: Ultimate Sample Protection
Unlike our other ultra-low temperature freezer line-up, TwinGuard ult freezers have two independent refrigeration systems to provide the highest levels of sample security.
Should one system unexpectedly fail, the other will maintain a temperature in the -70ºC range ensuring that the integrity of irreplaceable and potentially life-saving samples are not put at risk.

: Innovative VIP* Technology
The VIP (Vacuum Insulation Panel) is an innovative insulation technology developed by PHC containing densely packed, open cell foam insulation under the vacuum panel. This configuration dramatically enhances the insulation capability of the freezer and achieves nearly 30% more storage capacity increase.
*Vacuum Insulation Panel

Learn How To Reduce Energy Consumption

How To Green Your Lab (Downloadable Print-Out)

FAQ: How do inverters reduce CO2 emissions and save energy?

FAQ: What are next-generation refrigerants?

ULT Freezers (-86°C)

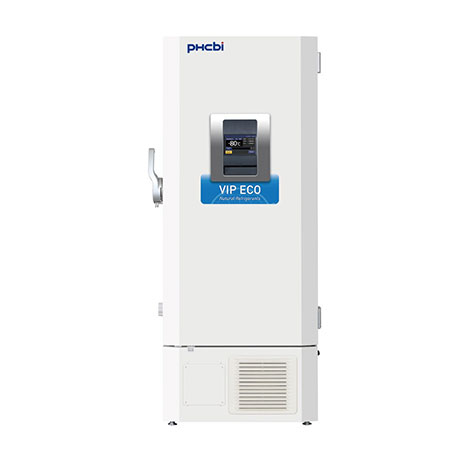

MDF-DU502VH | 528 Liters

220-240V | Temperature Control Range: -86°C to -40°C (AT: 30°C, no load) | 528 Litres

MDF-DU502VH

Compared to	MDF-U55V (Conventional model）	$255.68 saved
Electricity bill per year:	$647.04		$391.36
Power consumption:	Volume: 519L

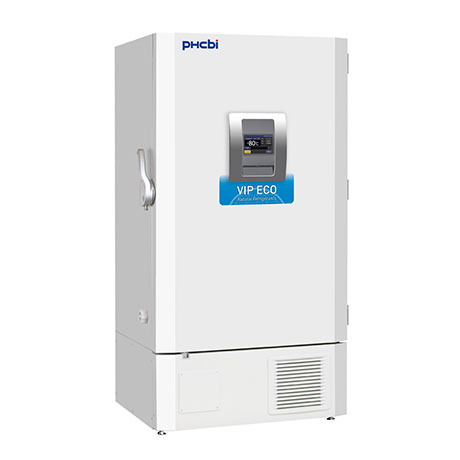

MDF-DU702VH | 729 Liters

220-240V | Temperature Control Range: -86°C to -40°C (AT: 30°C, no load) | 729 Litres

MDF-DU702VH

Compared to	MDF-U74V (Conventional model）	$628.96 saved
Electricity bill per year:	$1,078.72		$449.76
Power consumption:	Volume: 728L

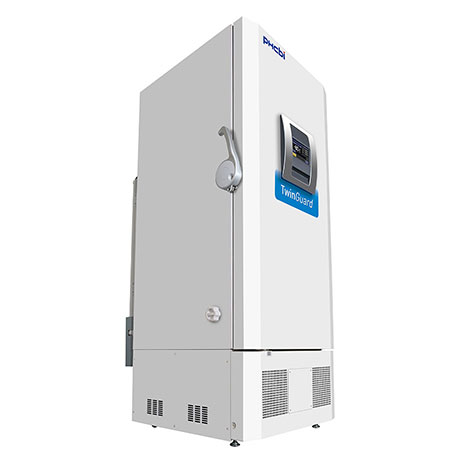

MDF-DU502VX | 528 Liters

220-240V | Temperature Control Range: -86°C to -50°C (AT: 30°C, no load) | 528 Litres

MDF-DU502VX

Compared to	MDF-U500VX (Conventional model）	$154.88 saved
Electricity bill per year:	$1,045.44		$890.56
Power consumption:	Volume: 519L

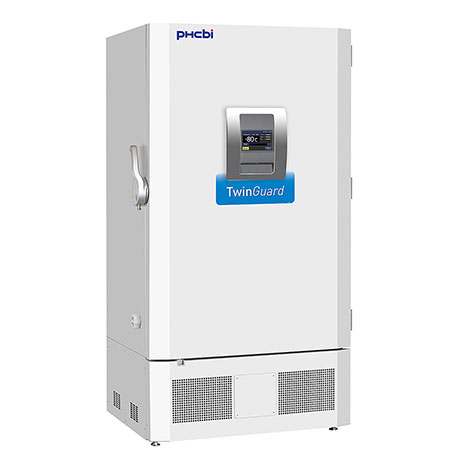

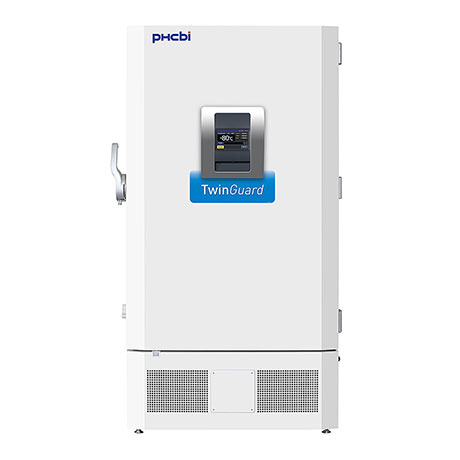

MDF-DU702VX | 729 Liters

220-240V | Temperature Control Range: -86°C to -50°C (AT: 30°C, no load) | 729 Litres

MDF-DU702VX

Compared to	MDF-U700VX (Conventional model）	$166.56 saved
Electricity bill per year:	$1,080.48		$913.92
Power consumption:	Volume: 728L

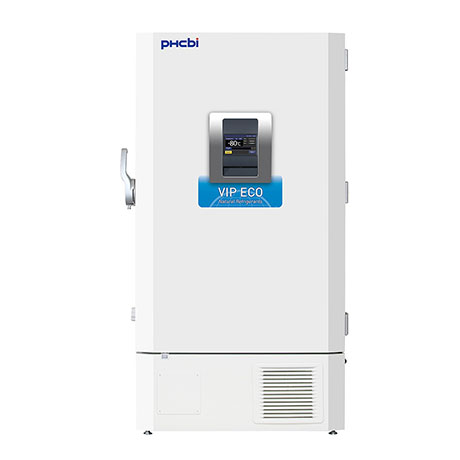

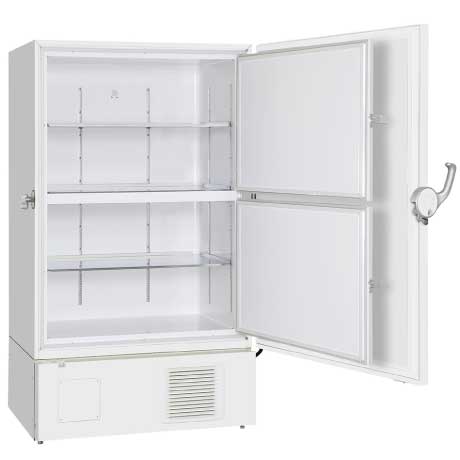

MDF-DU901VHL | 845 Liters

220-240V | Temperature Control Range: -86°C to -50°C (AT: 30°C, no load) | 845 Litres

MDF-DU901VHL

Compared to	MDF-DU900V (Conventional model）	$419.84 saved
Electricity bill per year:	$922.08		$502.24
Power consumption:	Volume: 845L

Biomedical Freezers (-30°C/-40°C)

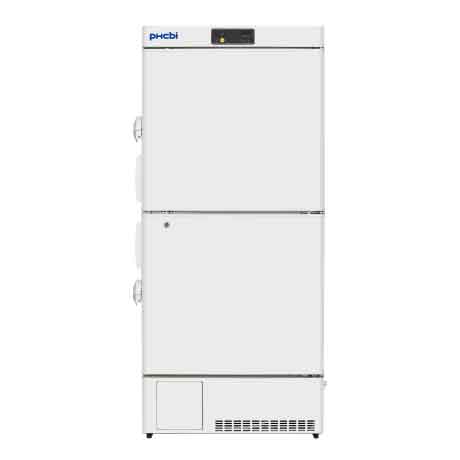

MDF-MU539HL | 504 Liters

115V / 220-240V | Temperature Control Range: -30°C to -20°C (AT: 5°C to 35°C no load) | 504 Litres

MDF-MU539HL

Compared to	MDF-U5312 (Conventional model）	$88.16 saved
Electricity bill per year:	$218.40		$130.24
Power consumption:	Volume: 482L

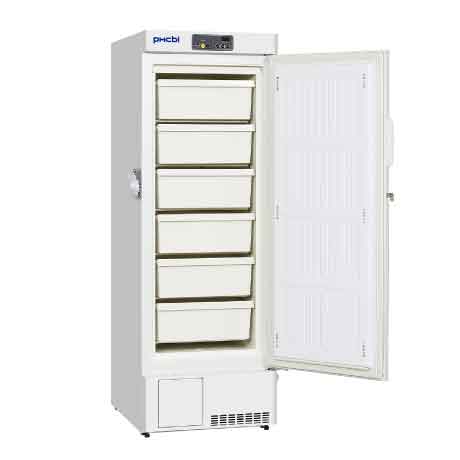

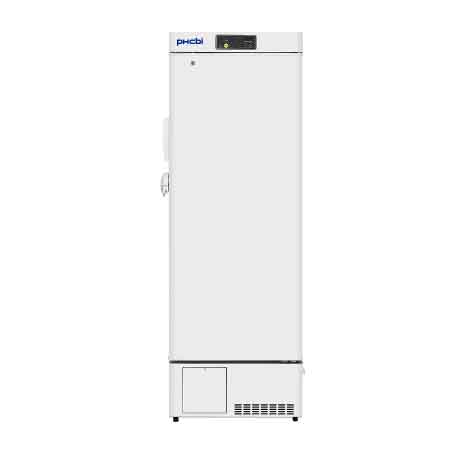

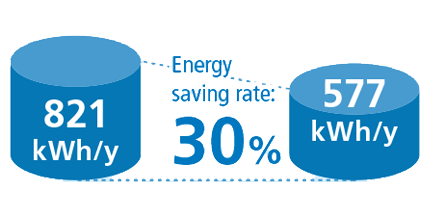

MDF-MU339HL | 369 Liters

115V / 220-240V | Temperature Control Range: -30°C to -20°C (AT: 5°C to 35°C no load) | 369 Litres

MDF-MU339HL

Compared to	MDF-MU339 (Conventional model）	$39.04 saved
Electricity bill per year:	$131.36		$92.32
Power consumption:	Volume: 369L

MDF-MU549DHL | 479 Liters

220-240V | Temperature Control Range: -40°C to -20°C (AT: 5°C to 35°C no load) | 479 Litres

MDF-MU549DHL

Compared to	MDF-U5412 (Conventional model）	$65.92 saved
Electricity bill per year:	$263.36		$197.44
Power consumption:	Volume: 482L

Pharmaceutical Refrigerators/Freezers (Refrigerator 2°C to 14°C / Freezer -20°C to -30°C)

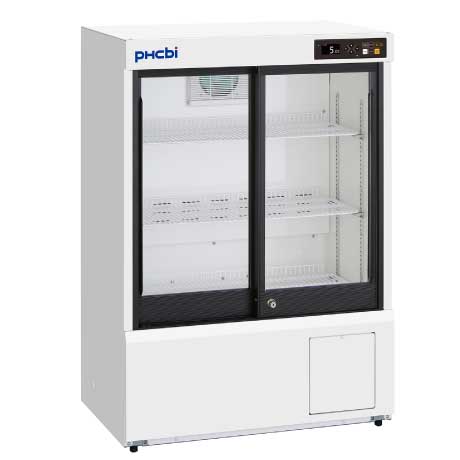

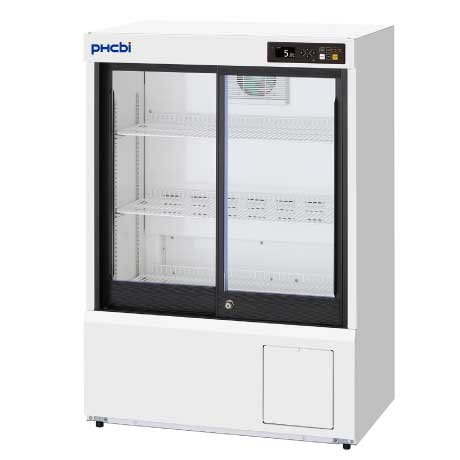

MPR-S150H | 165 Liters

220-240V | Temperature Control Range: 2°C to 14°C (AT: -5°C to 35°C no load) | 165Litres

MPR-S150H

Compared to	MPR-S163 (Conventional model）	$99.20 saved
Electricity bill per year:	$163.52		$64.32
Power consumption:	Volume: 158L

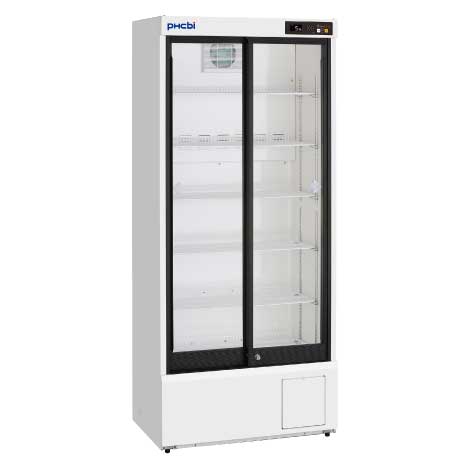

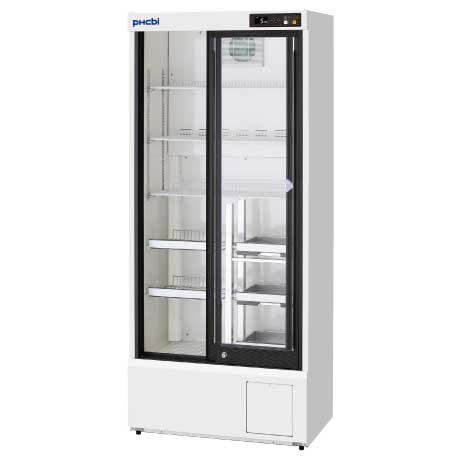

MPR-S300H | 345 Liters

115 / 220-240V | Temperature Control Range: 2°C to 14°C (AT: -5°C to 35°C no load) | 345 Litres

MPR-S300H

Compared to	MPR-S313 (Conventional model）	$140.16 saved
Electricity bill per year:	$221.92		$81.76
Power consumption:	Volume: 340L

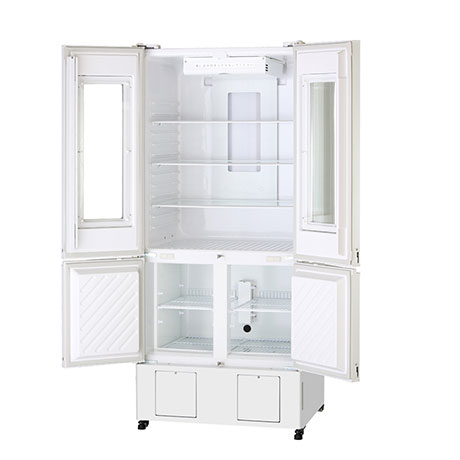

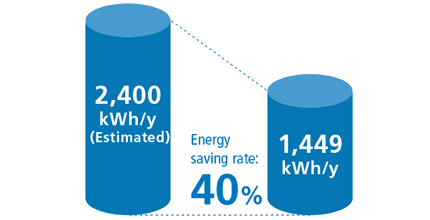

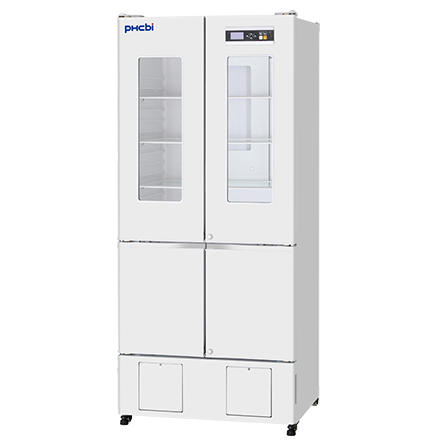

MPR-N450FH | Refrigerator 326 Liters / Freezer 136 Liters

115V / 220-240V | Temperature Control Range: [Refrigerator: 2°C to 14°C (AT: -5°C to 30°C, no load) | 326 Litres ] / [ Feezer: 2°C to 14°C (AT: -5°C to 30°C, no load) | 136 Litres ]

MPR-S300H

Compared to	MPR-414F (Conventional model）	$152.16 saved
Electricity bill per year:	$384.00 (Estimated)		$231.84
Power consumption:	Refrigerator Volume: 340L Freezer Volume: 82L

Energy Savings Table (Comparison Chart)

ULT Freezers (-86°C)

Selected Model	Comparison Model	Estimated Electricity Bill (Per Year)	Estimated Savings (Per Year)	Power Consumption (Comparison Model)	Power Consumption (Selected Model)	Energy Saving Rate	Volume (Comparison Model) Litres	Volume (Selected Model) Litres

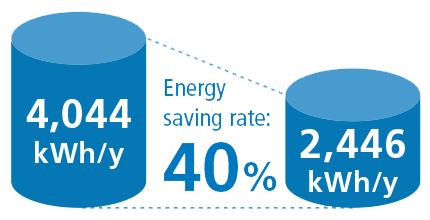

MDF-DU502VH	MDF-U55V	$647.04	$255.68	4,044 kWh/y	2,446 kWh/y	40%	519L	528L
MDF-DU702VH	MDF-U74V	$1,078.72	$628.96	6,742 kWh/y	2,811 kWh/y	58%	728L	729L
MDF-DU502VX	MDF-U500VX	$1,045.44	$154.88	6,534 kWh/y	5,566 kWh/y	15%	519L	528L

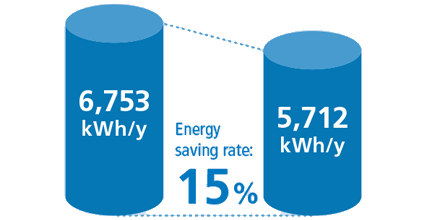

MDF-DU702VX	MDF-U700VX	$1080.48	$166.56	6,753 kWh/y	5,712 kWh/y	15%	728L	729L

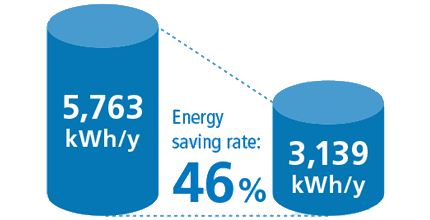

MDF-DU901VHL	MDF-DU900V	$922.08	$419.84	5,763 kWh/y	3,139 kWh/y	46%	845L	845L

Biomedical Freezers (-30°C/-40°C)

Selected Model	Comparison Model	Estimated Electricity Bill (Per Year)	Estimated Savings (Per Year)	Power Consumption (Comparison Model)	Power Consumption (Selected Model)	Energy Saving Rate	Volume (Comparison Model) Litres	Volume (Selected Model) Litres

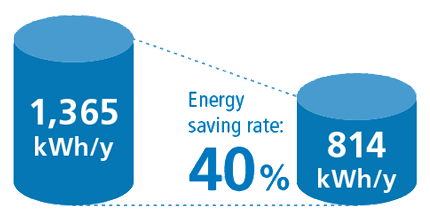

MDF-MU539HL	MDF-U5312	$218.40	$88.16	1,365 kWh/y	814 kWh/y	40%	482L	504L
MDF-MU339HL	MDF-MU339	$131.36	$39.04	821 kWh/y	577 kWh/y	30%	369L	369L

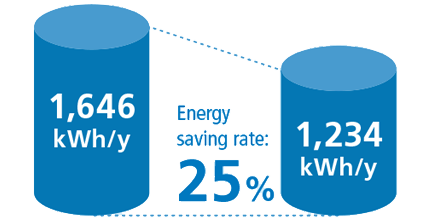

MDF-MU549DH(L)	MDF-U5412	$263.63	$65.92	1,646 kWh/y	1,234 kWh/y	25%	482L	479L

Pharmaceutical Refrigerators/Freezers (Refrigerator 2°C to 14°C / Freezer -20°C to -30°C)

Selected Model	Comparison Model	Estimated Electricity Bill (Per Year)	Estimated Savings (Per Year)	Power Consumption (Comparison Model)	Power Consumption (Selected Model)	Energy Saving Rate	Volume (Comparison Model) Litres	Volume (Selected Model) Litres

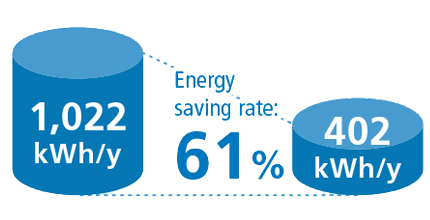

MPR-S150H	MPR-S163	$163.52	$99.20	1,022 kWh/y	402 kWh/y	61%	158L	165L
MPR-S300H	MPR-S313	$221.92	$140.16	1,387 kWh/y	511 kWh/y	63%	340L	345L
MPR-N450FH	MPR-414F	$384.00	$152.16	2,400 kWh/y	1,449 kWh/y	40%	Refrigerator: 340L Freezer: 82L	Refrigerator; 326L Freezer: 136L
